What is the Additional Feature ?

Name: DS25BR100TSDX/NOPB
Brand: Texas Instruments
SKU: DS25BR100TSDX/NOPB
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Any Feature, including a modified Existing Feature, that is not an Existing Feature.

Cart ( )

lmages are for reference only See Product Specifications

Texas Instruments DS25BR100TSDX/NOPB

Part No.:: DS25BR100TSDX/NOPB

Manufacturer:: Texas Instruments

Package:: 8-WFDFN Exposed Pad

Datasheet:: DS25BR100TSDX/NOPB.pdf

Description:: IC REDRIVER LVDS 1CH 8WSON

In Stock:: 2962

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

DS25BR100TSDX/NOPB Specifications

Package/Case:
8-WFDFN Exposed Pad
Packaging:
Tape & Reel (TR)
Series:
-
ProductStatus:
Obsolete
Type:
Buffer, ReDriver
Applications:
LVDS
Input:
CML, LVDS, LVPECL
Output:
LVDS
DataRate(Max):
3.125Gbps
NumberofChannels:
1
DelayTime:
350ps
SignalConditioning:
Input Equalization, Output Pre-Emphasis
Capacitance-Input:
1.7 pF
Voltage-Supply:
3V ~ 3.6V
Current-Supply:
35mA
OperatingTemperature:
-40°C ~ 85°C
MountingType:
Surface Mount

DS25BR100TSDX/NOPB this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including DS25BR100TSDX/NOPB price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for DS25BR100TSDX/NOPB to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

DS25BR100TSDX/NOPB information

Views：

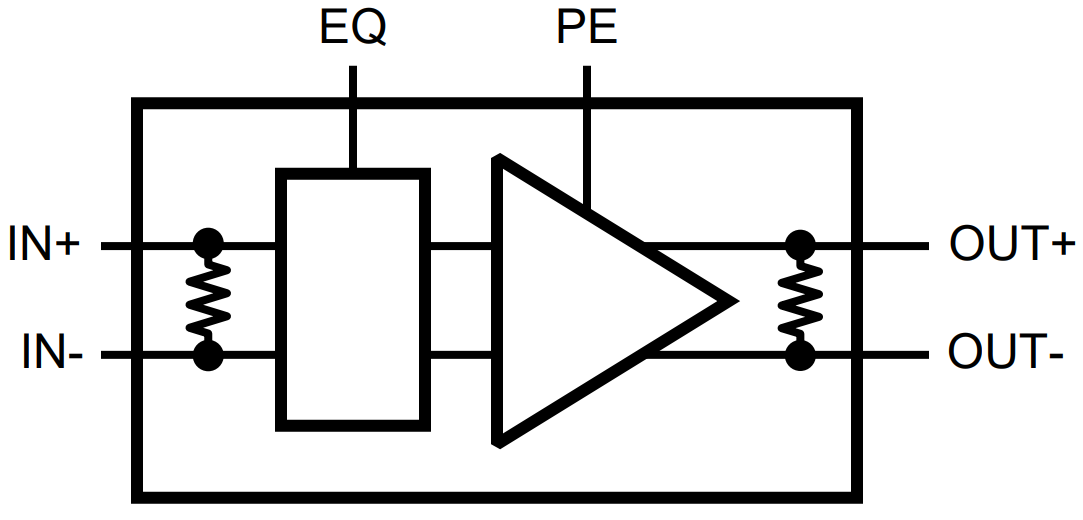

DS25BR100TSDX/NOPB Typical application Circuitry

DS25BR100TSDX NOPB

The DS25BR100TSDX/NOPB is a part of Texas Instruments' high-speed differential signaling product line. This device is a single-channel, 3.125 Gbps, high-speed differential buffer. Its main purpose is to make point-to-point baseband data transfer across medium with regulated impedance of about 100Ω easier. The device finds extensive use in applications demanding high data rates and signal integrity over long distances, such as in telecommunications, networking, and high-speed data acquisition systems.

1. Power Supply Arrangement: The DS25BR100TSDX/NOPB typically operates at a supply voltage of 3.3V. The VCC pin must be connected to a power source that can provide this voltage accurately. Ensuring a clean and stable power supply is crucial for maintaining the performance and minimizing jitter in high-speed data transmission.

2. Grounding Strategy: Connect the GND pin of the DS25BR100TSDX/NOPB to the ground plane of your circuit. A secure and low-impedance ground connection is essential for high-speed signal integrity and to mitigate the effects of noise and electromagnetic interference.

3. Differential Input Connection: The device features differential input pins, IN+ and IN-. The source of the differential signal should be linked to these. Careful routing and impedance control of these lines are necessary to preserve the quality of the high-speed signals.

4. Differential Output Connection: Corresponding to the input pins, the DS25BR100TSDX/NOPB has differential output pins, OUT+ and OUT-. These need to be connected to the differential input of the next stage in your circuit. As with the input, the differential nature of these pins requires careful consideration of trace routing and impedance matching.

5. Bypass Capacitor Implementation: To ensure stable operation, it is recommended to place a bypass capacitor (typically 0.1μF) close to the VCC pin of the DS25BR100TSDX/NOPB. This capacitor aids in the power supply's noise reduction.

6. Signal Integrity Considerations: For high-speed differential signals, maintaining signal integrity is paramount. This involves controlled impedance traces, minimal length mismatches between differential pairs, and avoiding sharp bends in the trace routing.

7. Thermal Management: Given the high-speed nature of the device, adequate thermal management strategies should be implemented. This might include considerations for heat sinking or airflow, depending on the overall power dissipation and ambient conditions.

In summary, the DS25BR100TSDX/NOPB is a high-speed differential buffer that plays a crucial role in systems requiring rapid data transfer over long distances with minimal signal degradation. Effective implementation of this device demands careful attention to power supply stability, grounding, differential signal handling, bypass capacitor placement, signal integrity in the PCB layout, and thermal management. These considerations are key to harnessing the full potential of the DS25BR100TSDX/NOPB in high-speed data transmission applications.

DS25BR100TSDX/NOPB FAQ

1. How to order DS25BR100TSDX/NOPB on icwhale.com?

Currently, icwhale.com only provide peer-to-peer order processing. While you submit the RFQ, our professional agent will contact you with the competitive prices in the global market, and our agent will prompt you to finish the order if you accept our offers.

2. How does icwhale.com guarantee that DS25BR100TSDX/NOPB is from the original manufacturer or authorized agents?

We have a professional and experienced quality control team to strictly verify and test the DS25BR100TSDX/NOPB. All suppliers must pass our qualification reviews before they can publish their products including DS25BR100TSDX/NOPB on icwhale.com; we pay more attention to the channels and quality of DS25BR100TSDX/NOPB products than any other customer. We strictly implement supplier audits, so you can purchase with confidence.

3. Are the DS25BR100TSDX/NOPB price and inventory displayed accurate?

The price and inventory of DS25BR100TSDX/NOPB fluctuates frequently and cannot be updated in time, it will be updated periodically within 24 hours. And, our quotation usually expires after 5 days.

4. What forms of payment are accepted?

Wire Transfer, PayPal, Alipay, Wechat, Credit Card, Western Union, MoneyGram, and Escrow are all acceptable.

Warm Tips: Some orders in certain payment forms may require handling fee.

5. How is the shipping arranged?

Customers can choose industry-leading freight companies, including DHL, UPS, FedEx, TNT, and Registered Mail. Shipping insurance is also available.

Once your order has been processed for shipment, our salesperson will send you an email advising you of the shipping status and tracking number.

Warm Tips: It may take up to 24 hours for the carriers to display tracking information. Usually, express delivery takes 3-5 days, and registered mail takes 25-60 days.

6. What is the process for return or replacement of DS25BR100TSDX/NOPB?

All goods will implement Pre-Shipment Inspection (PSI), selected at random from all batches of your order to do a systematic inspection before arranging the shipment. If there is something wrong with the DS25BR100TSDX/NOPB we delivered, we will accept the replacement or return of the DS25BR100TSDX/NOPB only when all of the below conditions are fulfilled:

(1)Such as a deficiency in quantity, delivery of wrong items, and apparent external defects (breakage and rust, etc.), and we acknowledge such problems.

(2)We are informed of the defect described above within 90 days after the delivery of DS25BR100TSDX/NOPB.

(3)The PartNo is unused and only in the original unpacked packaging.

Two processes to return the products:

(1)Inform us within 90 days

(2)Obtain Requesting Return Authorizations
