What is the Additional Feature ?

Name: DS18S20-C01+
Brand: Analog Devices Inc./Maxim Integrated
SKU: DS18S20-C01+
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Any Feature, including a modified Existing Feature, that is not an Existing Feature.

Cart ( )

lmages are for reference only See Product Specifications

Analog Devices Inc./Maxim Integrated DS18S20-C01+

Part No.:: DS18S20-C01+

Manufacturer:: Analog Devices Inc./Maxim Integrated

Package:: TO-226-3, TO-92-3 (TO-226AA)

Datasheet:: DS18S20-C01+.pdf

Description:: IC POWER MANAGEMENT

In Stock:: 3799

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

DS18S20-C01+ Specifications

Packaging:
Bulk,Tube
Series:
-
ProductStatus:
Obsolete
SensorType:
Digital, Local
SensingTemperature-Local:
-55°C ~ 125°C
SensingTemperature-Remote:
-
OutputType:
1-Wire®
Voltage-Supply:
3V ~ 5.5V
Resolution:
9 b
Features:
Output Switch, Programmable Limit, Standby Mode
Accuracy-Highest(Lowest):
±0.5°C (±2°C)
TestCondition:
-10°C ~ 85°C (-55°C ~ 125°C)
OperatingTemperature:
-55°C ~ 125°C
MountingType:
Through Hole

DS18S20-C01+ this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including DS18S20-C01+ price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for DS18S20-C01+ to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

DS18S20-C01+ information

Views：

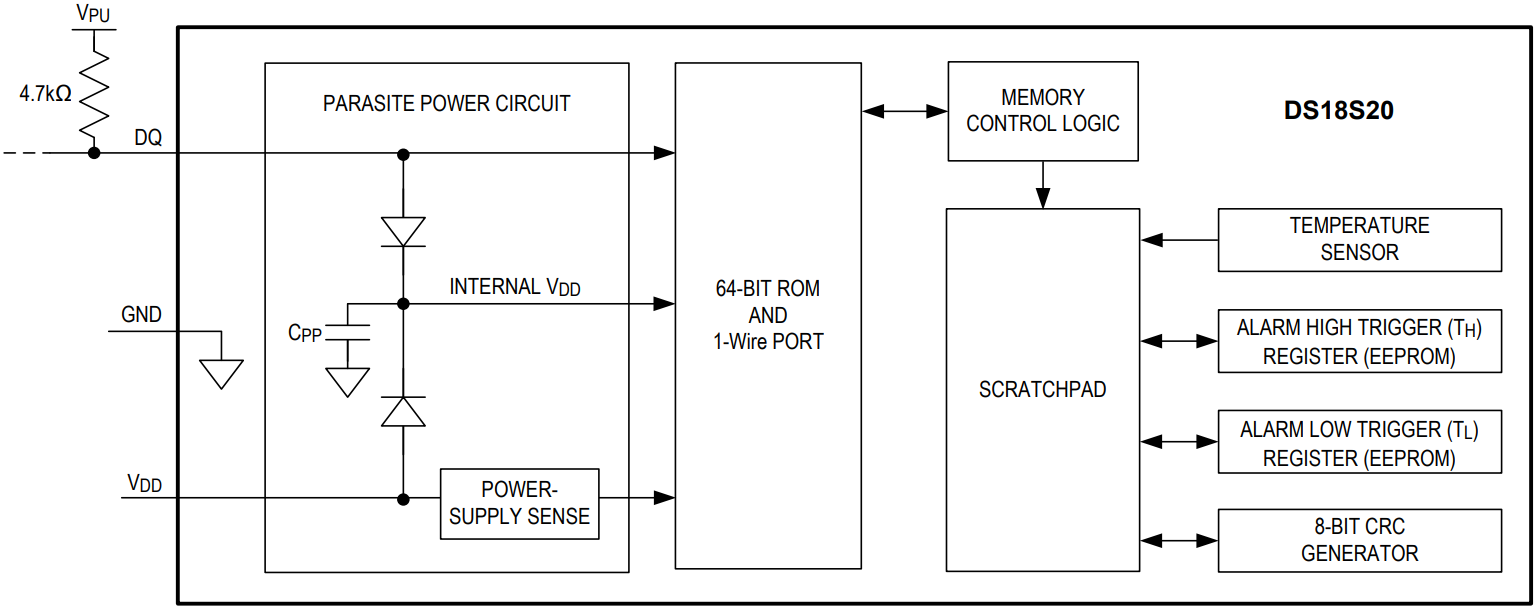

DS18S20-C01+ Typical application Circuitry

DS18S20-C01+

The DS18S20-C01+ is a specialized model in the DS18S20 series, a line of high-precision digital thermometers from Maxim Integrated. This series is distinguished by its capacity to deliver precise temperature data through a one-wire digital interface. The DS18S20-C01+ is particularly suited for applications requiring streamlined temperature monitoring, such as in smart home systems, laboratory equipment, and precision temperature-controlled environments.

1. Connecting to a Power Source: The DS18S20-C01+ operates effectively within a voltage range of 3.0V to 5.5V. To ensure accurate functioning, it's imperative to connect the VDD pin of the DS18S20-C01+ to a power supply within this range. The sensor's temperature measurement accuracy is highly dependent on a stable and reliable power supply.

2. Ensuring Proper Grounding: For the DS18S20-C01+ to function correctly, the GND pin must be securely connected to the ground of the circuit. This grounding provides a necessary reference point for the sensor and is crucial for its accurate operation.

3. Data Line Connection: The DS18S20-C01+ communicates data via a one-wire bus, which minimizes wiring requirements in complex systems. This bus is connected through the DQ pin. To ensure stable data transmission, connect the DQ pin to a digital I/O pin on the microcontroller, and use a pull-up resistor, typically around 4.7kΩ, between the VDD and DQ pins.

4. Utilizing Parasitic Power Mode: The DS18S20-C01+ offers a 'parasitic power' mode. In this configuration, the VDD pin is connected to ground, and the sensor draws its operating power through the pull-up resistor on the data line. This setup is beneficial in reducing the wiring complexity and overall power consumption in certain designs.

5. Circuit and PCB Layout Considerations: When designing the circuit or PCB for the DS18S20-C01+, it is advisable to keep the data line as short as possible to reduce potential signal degradation. If a longer data line is necessary, consider adjusting the pull-up resistor's value to ensure adequate signal integrity.

6. Strategic Sensor Placement: For accurate temperature readings, it is essential to place the DS18S20-C01+ in a location that represents the environment's temperature accurately. Avoid placing it near heat-generating devices or in areas subject to rapid temperature fluctuations that do not represent the intended monitoring environment.

In summary, the DS18S20-C01+ is a highly precise and reliable digital thermometer belonging to the DS18S20 series, suitable for various applications where precise temperature monitoring is essential. The correct implementation involves a stable power supply, proper grounding, and configuring the one-wire data line with an appropriate pull-up resistor. The ability to operate in parasitic power mode adds flexibility to its design options. Additionally, careful consideration should be given to the PCB layout and sensor placement to ensure the DS18S20-C01+ provides accurate and dependable temperature measurements.

DS18S20-C01+ FAQ

1. How to order DS18S20-C01+ on icwhale.com?

Currently, icwhale.com only provide peer-to-peer order processing. While you submit the RFQ, our professional agent will contact you with the competitive prices in the global market, and our agent will prompt you to finish the order if you accept our offers.

2. How does icwhale.com guarantee that DS18S20-C01+ is from the original manufacturer or authorized agents?

We have a professional and experienced quality control team to strictly verify and test the DS18S20-C01+. All suppliers must pass our qualification reviews before they can publish their products including DS18S20-C01+ on icwhale.com; we pay more attention to the channels and quality of DS18S20-C01+ products than any other customer. We strictly implement supplier audits, so you can purchase with confidence.

3. Are the DS18S20-C01+ price and inventory displayed accurate?

The price and inventory of DS18S20-C01+ fluctuates frequently and cannot be updated in time, it will be updated periodically within 24 hours. And, our quotation usually expires after 5 days.

4. What forms of payment are accepted?

Wire Transfer, PayPal, Alipay, Wechat, Credit Card, Western Union, MoneyGram, and Escrow are all acceptable.

Warm Tips: Some orders in certain payment forms may require handling fee.

5. How is the shipping arranged?

Customers can choose industry-leading freight companies, including DHL, UPS, FedEx, TNT, and Registered Mail. Shipping insurance is also available.

Once your order has been processed for shipment, our salesperson will send you an email advising you of the shipping status and tracking number.

Warm Tips: It may take up to 24 hours for the carriers to display tracking information. Usually, express delivery takes 3-5 days, and registered mail takes 25-60 days.

6. What is the process for return or replacement of DS18S20-C01+?

All goods will implement Pre-Shipment Inspection (PSI), selected at random from all batches of your order to do a systematic inspection before arranging the shipment. If there is something wrong with the DS18S20-C01+ we delivered, we will accept the replacement or return of the DS18S20-C01+ only when all of the below conditions are fulfilled:

(1)Such as a deficiency in quantity, delivery of wrong items, and apparent external defects (breakage and rust, etc.), and we acknowledge such problems.

(2)We are informed of the defect described above within 90 days after the delivery of DS18S20-C01+.

(3)The PartNo is unused and only in the original unpacked packaging.

Two processes to return the products:

(1)Inform us within 90 days

(2)Obtain Requesting Return Authorizations
