Analog Devices Inc./Maxim Integrated DS18S20+

Part No.:: DS18S20+

Manufacturer:: Analog Devices Inc./Maxim Integrated

Package:: TO-226-3, TO-92-3 (TO-226AA)

Datasheet:: DS18S20+.pdf

Description:: SENSOR DIGITAL -55C-125C TO92-3

In Stock:: 3728

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

DS18S20+ Specifications

Packaging:
Bulk
Series:
-
ProductStatus:
Active
SensorType:
Digital, Local
SensingTemperature-Local:
-55°C ~ 125°C
SensingTemperature-Remote:
-
OutputType:
1-Wire®
Voltage-Supply:
3V ~ 5.5V
Resolution:
9 b
Features:
Programmable Limit, Standby Mode
Accuracy-Highest(Lowest):
±0.5°C (±2°C)
TestCondition:
-10°C ~ 85°C (-55°C ~ 125°C)
OperatingTemperature:
-55°C ~ 125°C
MountingType:
Through Hole

DS18S20+ this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including DS18S20+ price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for DS18S20+ to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

DS18S20+ information

Views：

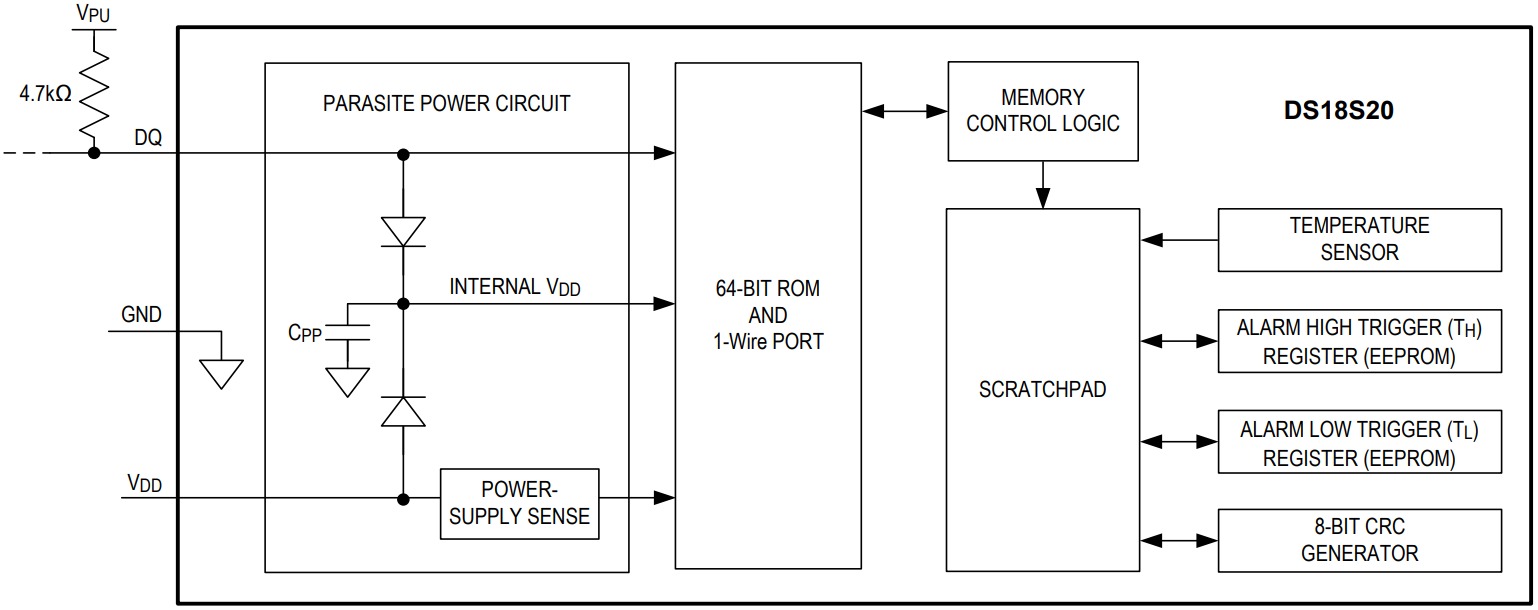

DS18S20+ Typical application Circuitry

DS18S20+

The DS18S20+ is an integral component of the DS18x20 family of digital thermometers, known for providing precise temperature readings and digital output over a one-wire interface. It's commonly utilized in environments that require meticulous temperature monitoring, such as in medical systems, food processing, and climate control.

1. Power Supply Connection: The voltage range in which the DS18S20+ works is 3.0V to 5.5V. It's crucial to link the VDD pin of the DS18S20+ to a power source that lies within this specified range. For the sensor to yield accurate temperature measurements, a consistent and stable power supply is mandatory.

2. Grounding the Device: To ensure the DS18S20+'s optimal functioning, its GND pin must be connected to the ground of your circuit. This connection offers a reliable reference point, which is essential to the DS18S20+'s precise operation.

3. Data Communication Setup: The DS18S20+ is designed for communication over a one-wire interface, indicated by the DQ pin. This pin needs to be connected to a digital input/output pin on your microcontroller. A pull-up resistor, typically about 4.7kΩ, is essential between the VDD and DQ pins for reliable data transmission.

4. Parasitic Power Configuration: In 'parasitic power' mode, the DS18S20+ draws power directly from the data line. In this setup, the VDD pin is connected to ground, while the DQ line receives power through the pull-up resistor. This arrangement can simplify the circuit design in certain applications.

5. Circuit and PCB Layout Guidelines: For effective data communication, it's advisable to keep the length of the data line (DQ) as short as possible. If longer lengths are required, it might necessitate adjusting the pull-up resistor's value to ensure signal integrity.

6. Optimal Sensor Placement: It's important to position the DS18S20+ in a location that accurately represents the temperature of the environment being monitored. Placement should be strategic to avoid areas with abnormal heat sources or regions experiencing rapid temperature shifts that do not reflect the general environmental conditions.

To summarize, the DS18S20+ is a highly accurate and reliable digital thermometer, part of the DS18x20 series, suitable for a wide array of applications where precise temperature monitoring is key. The proper implementation involves a stable power supply, correct grounding, and configuration of the data line with a suitable pull-up resistor. The 'parasitic power' mode offers an additional design option. Furthermore, attention should be paid to the PCB layout and sensor positioning to ensure the DS18S20+ delivers reliable and precise temperature readings.
