Analog Devices Inc./Maxim Integrated DS18B20Z+T&R

Part No.:: DS18B20Z+T&R

Manufacturer:: Analog Devices Inc./Maxim Integrated

Package:: 8-SOIC (0.154, 3.90mm Width)

Datasheet:: DS18B20Z+T&R.pdf

Description:: SENSOR DIGITAL -55C-125C 8SOIC

In Stock:: 2557

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

DS18B20Z+T&R Specifications

Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
-
ProductStatus:
Active
SensorType:
Digital, Local
SensingTemperature-Local:
-55°C ~ 125°C
SensingTemperature-Remote:
-
OutputType:
1-Wire®
Voltage-Supply:
3V ~ 5.5V
Resolution:
12 b
Features:
Output Switch, Programmable Limit, Programmable Resolution
Accuracy-Highest(Lowest):
±0.5°C (±2°C)
TestCondition:
-10°C ~ 85°C (-55°C ~ 125°C)
OperatingTemperature:
-55°C ~ 125°C
MountingType:
Surface Mount

DS18B20Z+T&R this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including DS18B20Z+T&R price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for DS18B20Z+T&R to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

DS18B20Z+T&R information

Views：

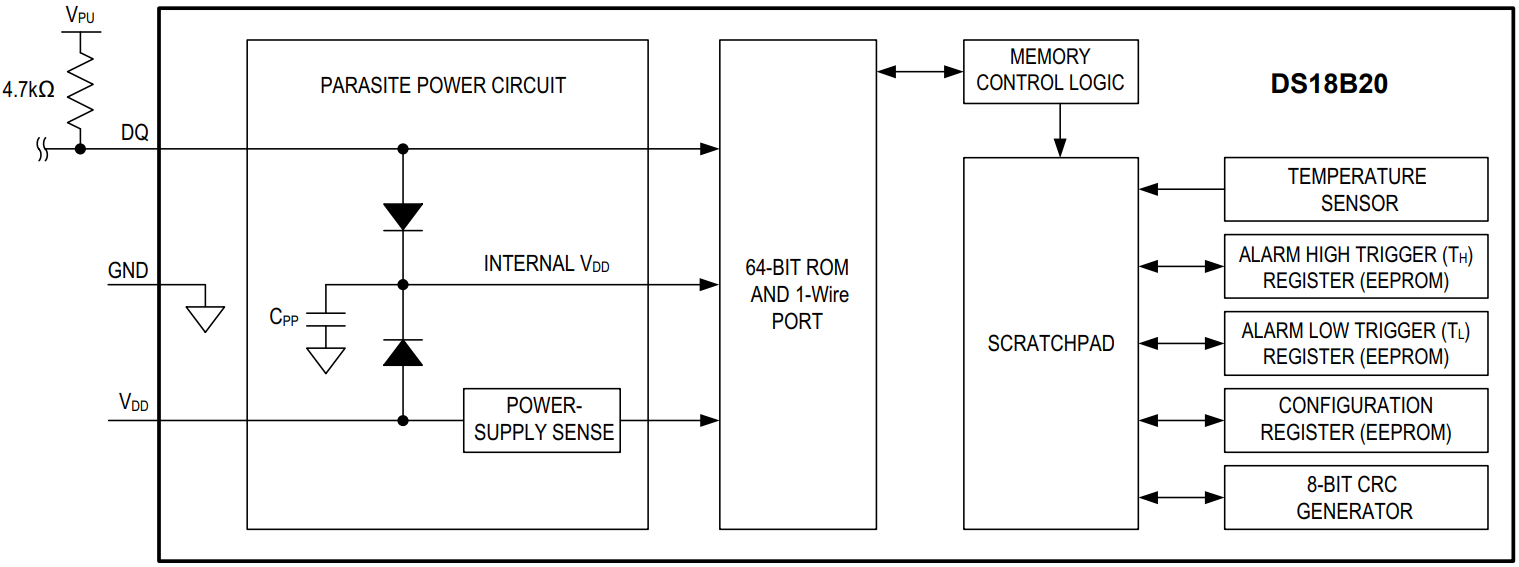

DS18B20Z+T&R Typical application Circuitry

DS18B20Z+T&R

The DS18B20Z+T&R is a member of the DS18B20 series, a line of digital temperature sensors developed by Maxim Integrated, renowned for their precise temperature measurement capabilities. These sensors are adept at digitally transmitting temperature data via a one-wire interface and are extensively utilized in a variety of settings, including HVAC systems, environmental monitoring, and industrial temperature regulation.

1. Power Supply Requirements: The DS18B20Z+T&R functions within a voltage range of 3.0V to 5.5V. The VDD pin of the sensor must be connected to a power supply that falls within this range. To achieve precise temperature readings, it is critical to use a stable power source.

2. Ground Connection: To ensure the sensor's optimal performance, the GND pin should be connected to your circuit's ground. This stable ground connection is a key factor in the sensor's functionality.

3. One-Wire Bus Communication: The sensor uses a one-wire bus, signified by the DQ (Data) pin, for transmitting data. This pin has to be linked to your microcontroller's digital I/O pin. For effective data transmission, a pull-up resistor, usually in the range of 4.7kΩ, should be placed between the VDD and DQ pins.

4. Parasitic Power Mode: The DS18B20Z+T&R gets its power straight from the data line while it is in this mode. Here, the VDD pin is connected to ground, and power is supplied to the DQ line via the pull-up resistor. In some situations, this configuration might make wiring simpler.

5. Wiring and PCB Design Considerations: When designing your PCB or configuring your circuit, aim for a short data line to reduce signal degradation. If a longer wire is necessary, adjusting the value of the pull-up resistor may be required to preserve signal integrity.

6. Sensor Positioning for Accurate Readings: Place the DS18B20Z+T&R sensor in a location that truly represents the environmental temperature you wish to monitor. Avoid proximity to heat sources or areas with rapid temperature fluctuations that do not reflect the general environment.

In conclusion, the DS18B20Z+T&R is a high-precision, versatile digital temperature sensor, part of the DS18B20 series, ideal for numerous applications where accurate temperature monitoring is crucial. Correct installation involves ensuring a stable power supply, proper grounding, and setting up the data line with an appropriate pull-up resistor. The flexibility of using parasitic power mode can be advantageous in certain designs. Additionally, thoughtful PCB layout and sensor positioning are vital for reliable and accurate temperature readings from the DS18B20Z+T&R.
