Analog Devices Inc./Maxim Integrated DS18B20Z+

Part No.:: DS18B20Z+

Manufacturer:: Analog Devices Inc./Maxim Integrated

Package:: 8-SOIC (0.154, 3.90mm Width)

Datasheet:: DS18B20Z+.pdf

Description:: SENSOR DIGITAL -55C-125C 8SOIC

In Stock:: 2160

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

DS18B20Z+ Specifications

Packaging:
Tube
Series:
-
ProductStatus:
Active
SensorType:
Digital, Local
SensingTemperature-Local:
-55°C ~ 125°C
SensingTemperature-Remote:
-
OutputType:
1-Wire®
Voltage-Supply:
3V ~ 5.5V
Resolution:
12 b
Features:
Output Switch, Programmable Limit, Programmable Resolution
Accuracy-Highest(Lowest):
±0.5°C (±2°C)
TestCondition:
-10°C ~ 85°C (-55°C ~ 125°C)
OperatingTemperature:
-55°C ~ 125°C
MountingType:
Surface Mount

DS18B20Z+ this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including DS18B20Z+ price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for DS18B20Z+ to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

DS18B20Z+ information

Views：

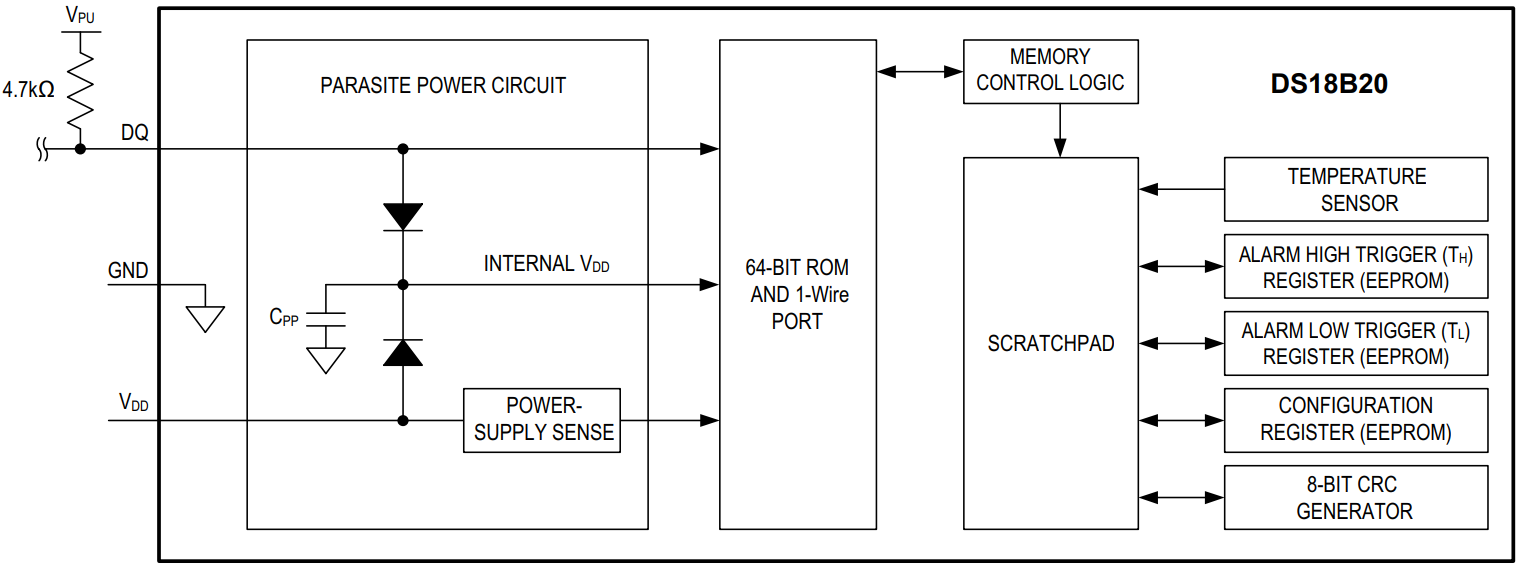

DS18B20Z+ Typical application Circuitry

DS18B20Z+

The DS18B20Z+ is a model within the DS18B20 series of digital temperature sensors developed by Maxim Integrated. This series is widely acclaimed for its precision in measuring temperatures and the ability to convey this information digitally through a one-wire bus interface. The DS18B20 sensors, including the DS18B20Z+, are extensively utilized in various applications, such as environmental monitoring, HVAC systems, and industrial temperature control, due to their reliability and straightforward integration.

1. Power Supply Connectivity: The DS18B20Z+ operates with a voltage range of 3.0V to 5.5V. Connect the VDD pin to a suitable power source within this range. For the sensor to produce reliable findings, there must be a constant power source.

2. Grounding the Sensor: The GND pin of the DS18B20Z+ should be connected to your circuit's ground. This grounding is critical for the sensor's stability and proper functioning.

3. Data Line Setup: The DS18B20Z+ uses a one-wire bus for communication, simplifying wiring, especially in setups with multiple sensors. Connect the DQ (Data) pin to a digital input/output pin on your microcontroller. A pull-up resistor, usually about 4.7kΩ, is recommended between the VDD and DQ pins to ensure reliable data communication.

4. Parasitic Power Mode Option: Additionally, the DS18B20Z+ may be set up to run in a "parasitic power" mode, in which case power is obtained from the data line. In this setup, connect the VDD pin to ground, and the DQ line is powered through the pull-up resistor. This mode can help in reducing the complexity of wiring.

5. Wiring and PCB Layout Considerations: In the PCB layout or circuit setup, aim to keep the data line as short as possible to avoid potential signal loss. For longer wire runs, consider adjusting the value of the pull-up resistor to maintain signal integrity.

6. Sensor Placement for Accurate Measurement: Place the DS18B20Z+ in a location that accurately represents the temperature of the environment you are measuring. Ensure it is positioned away from heat sources and insulated from rapid temperature changes not representative of the environment being monitored.

In conclusion, the DS18B20Z+ is an extremely precise and effective digital temperature sensor. It may be applied in a variety of situations where accurate temperature monitoring is necessary. Proper setup involves ensuring a stable power supply, appropriate grounding, and configuring the data line with a pull-up resistor. The option to use parasitic power mode provides flexibility in certain design scenarios. Moreover, careful consideration of PCB layout and sensor placement is crucial for obtaining reliable and accurate temperature readings from the DS18B20Z+.
