Name: DS18B20+TCNH
Brand: Analog Devices Inc./Maxim Integrated
SKU: DS18B20+TCNH
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Any Feature, including a modified Existing Feature, that is not an Existing Feature.

Cart ( )

lmages are for reference only See Product Specifications

Analog Devices Inc./Maxim Integrated DS18B20+TCNH

Part No.:: DS18B20+TCNH

Manufacturer:: Analog Devices Inc./Maxim Integrated

Package:: TO-226-3, TO-92-3 (TO-226AA)

Datasheet:

Description:: PROGRAMMABLE RESOLUTION 1-WIRE D

In Stock:: 3901

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

DS18B20+TCNH Specifications

Packaging:
Tape & Reel (TR)
Series:
-
ProductStatus:
Obsolete
SensorType:
Digital, Local
SensingTemperature-Local:
-55°C ~ 125°C
SensingTemperature-Remote:
-
OutputType:
1-Wire®
Voltage-Supply:
3V ~ 5.5V
Resolution:
12 b
Features:
Output Switch, Programmable Limit, Programmable Resolution
Accuracy-Highest(Lowest):
±0.5°C (±2°C)
TestCondition:
-10°C ~ 85°C (-55°C ~ 125°C)
OperatingTemperature:
-55°C ~ 125°C
MountingType:
Through Hole

DS18B20+TCNH this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including DS18B20+TCNH price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for DS18B20+TCNH to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

DS18B20+TCNH information

Views：

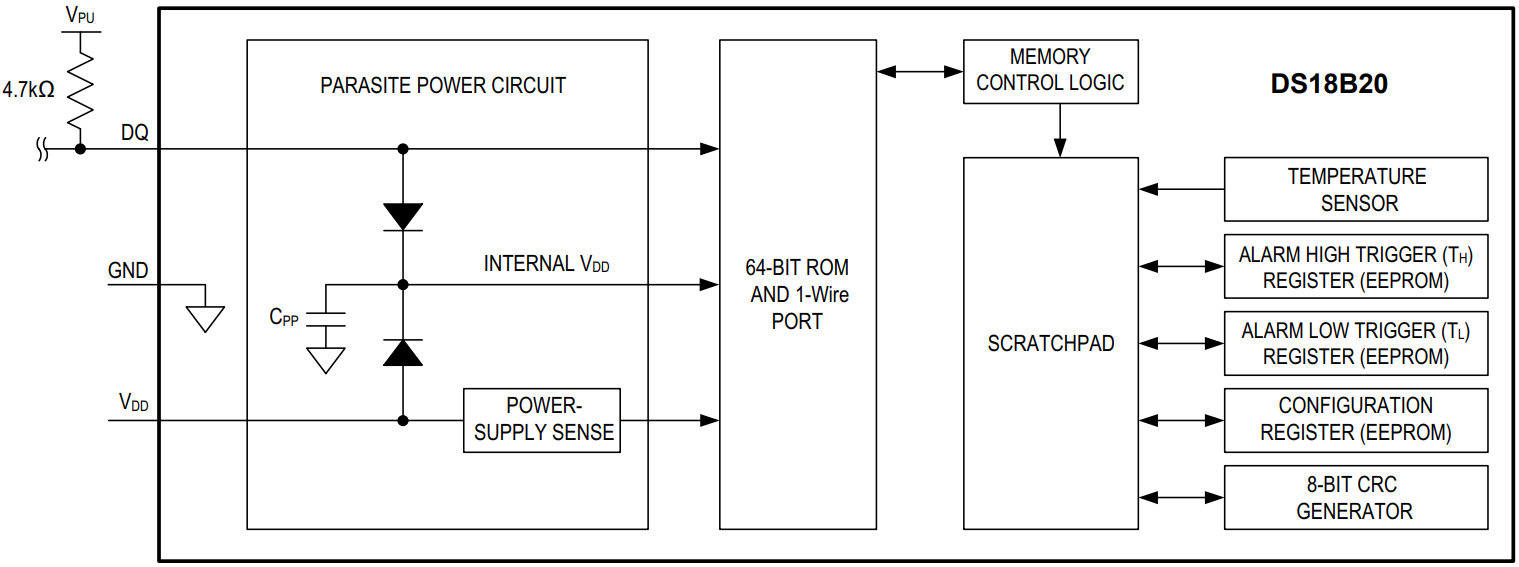

DS18B20+TCNH Typical application Circuitry

DS18B20+TCNH

The DS18B20+TCNH is a part of the DS18B20 series of digital temperature sensors, designed by Maxim Integrated. This series is widely recognized for its precise temperature measurement capabilities and the convenience of a digital output that communicates over a one-wire bus. The DS18B20+TCNH variant, like its counterparts, is frequently employed in various fields where accurate temperature monitoring is essential, such as environmental controls, HVAC systems, and industrial temperature tracking.

1. Power Supply Connection: The DS18B20+TCNH requires a power supply between 3.0V and 5.5V. Connect the VDD pin to an appropriate power source within this voltage range. To keep the sensor's accuracy, it is essential to make sure the power supply is steady.

2. Grounding the Sensor: The GND pin of the DS18B20+TCNH must be connected to the ground of your circuit. This ground connection provides stability and reference for the sensor's operations.

3. Data Line Setup: The DS18B20+TCNH communicates through a one-wire bus, reducing the complexity of wiring, especially in multi-sensor setups. Attach your microcontroller's DQ (Data) pin to a digital I/O pin. To facilitate reliable data communication, a pull-up resistor (typically 4.7kΩ) is recommended between the VDD and DQ pins.

4. Parasitic Power Mode Configuration: It is possible to run the DS18B20+TCNH in "parasitic power" mode, which means that the data line provides the device with power. In this setup, the VDD pin is connected to ground, and the DQ line is powered through the pull-up resistor. This mode can be advantageous in simplifying the wiring.

5. PCB and Wiring Design Considerations: When designing a PCB or setting up a circuit, aim to keep the data line as short as possible to reduce signal degradation. If longer wires are necessary, adjusting the pull-up resistor value can help maintain signal quality.

6. Accurate Temperature Measurement Placement: For precise temperature readings, position the DS18B20+TCNH away from heat sources and shield it from rapid ambient temperature changes that are not representative of the environment being monitored.

In summary, the DS18B20+TCNH is a reliable and accurate digital temperature sensor, ideal for various applications. Setting up this sensor requires careful attention to power supply connections, grounding, and data line configuration. The option to use parasitic power adds flexibility in specific scenarios. Additionally, considerations for PCB design and sensor placement are crucial for obtaining accurate and consistent temperature measurements from the DS18B20+TCNH.
