Analog Devices Inc./Maxim Integrated DS18B20+TCKJ

Part No.:: DS18B20+TCKJ

Manufacturer:: Analog Devices Inc./Maxim Integrated

Package:: TO-226-3, TO-92-3 (TO-226AA) Formed Leads

Datasheet:

Description:: HIGH PRECISION 1-WIRE TEMPERTURE

In Stock:: 2356

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

DS18B20+TCKJ Specifications

Packaging:
Tape & Reel (TR)
Series:
-
ProductStatus:
Obsolete
SensorType:
Digital, Local
SensingTemperature-Local:
-55°C ~ 125°C
SensingTemperature-Remote:
-
OutputType:
1-Wire®
Voltage-Supply:
3V ~ 5.5V
Resolution:
12 b
Features:
Output Switch, Programmable Limit, Programmable Resolution
Accuracy-Highest(Lowest):
±0.5°C (±2°C)
TestCondition:
-10°C ~ 85°C (-55°C ~ 125°C)
OperatingTemperature:
-55°C ~ 125°C
MountingType:
Through Hole

DS18B20+TCKJ this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including DS18B20+TCKJ price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for DS18B20+TCKJ to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

DS18B20+TCKJ information

Views：

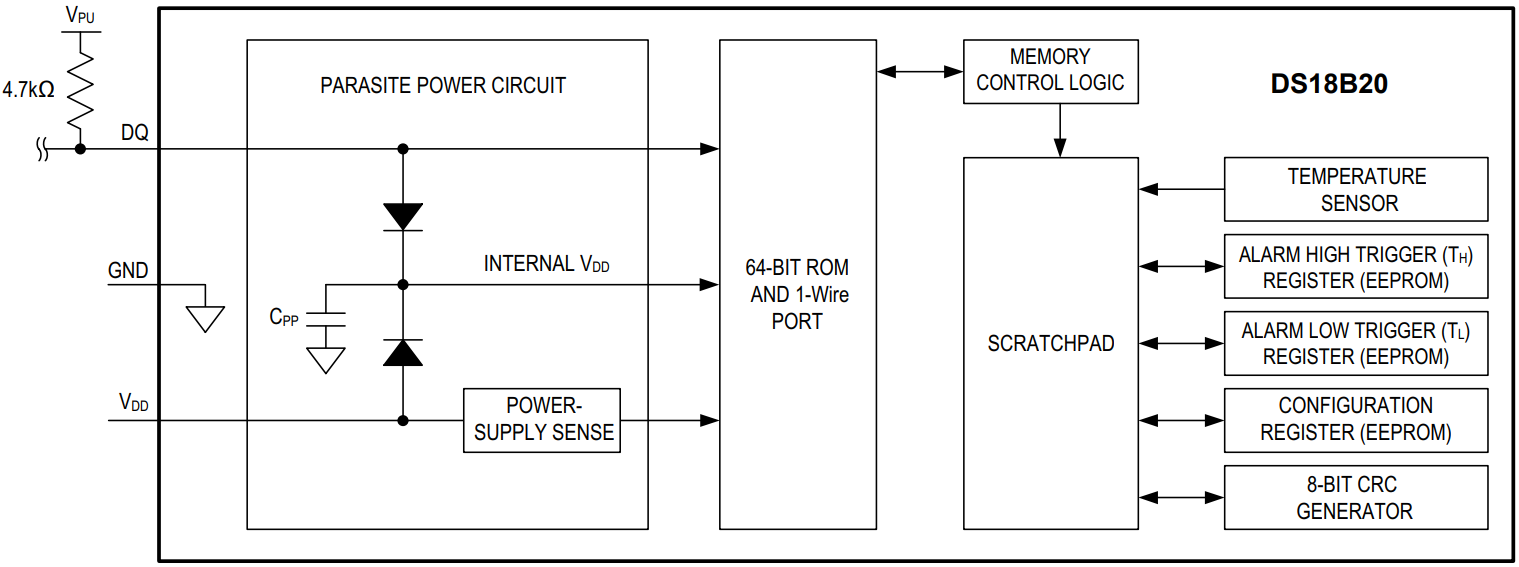

DS18B20+TCKJ Typical application Circuitry

DS18B20+TCKJ

The DS18B20+TCKJ is a model within the DS18B20 series of digital temperature sensors created by Maxim Integrated. This series is renowned for its accuracy and digital output, capable of transmitting temperature data over a one-wire bus. The DS18B20+TCKJ is particularly suited for applications that demand reliable and precise temperature measurements, such as environmental monitoring, HVAC systems, and temperature control in various devices.

1. Power Supply Arrangement: The DS18B20+TCKJ operates with a voltage range from 3.0V to 5.5V. Connect the VDD pin to a power source within this specified range. Stability in the power supply is essential for accurate temperature readings.

2. Grounding the Sensor: Attach the GND pin of the DS18B20+TCKJ to the ground in your circuit. This grounding is essential to the sensor's correct functioning since it gives it a reliable reference.

3. Data Line Configuration: The DS18B20+TCKJ utilizes a one-wire bus for data communication. Attach your microcontroller's DQ (Data) pin to a digital I/O pin. To ensure effective data transmission, a pull-up resistor (usually around 4.7kΩ) should be connected between the VDD and DQ pins.

4. Option for Parasitic Power Mode: The DS18B20+TCKJ can be configured to operate in a 'parasitic power' mode, drawing power directly from the data line. In this setup, the VDD pin is linked to ground, and the DQ line gets power through the pull-up resistor. This mode can be advantageous for reducing wiring complexity.

5. Wiring and PCB Design Considerations: In the PCB layout or circuit design, aim to keep the data line as short as possible to minimize signal loss. If a longer wire is necessary, consider a lower-value pull-up resistor to maintain signal integrity.

6. Sensor Placement for Accurate Measurement: Place the DS18B20+TCKJ in an environment that accurately represents the temperature you wish to measure. It should be positioned away from heat-generating elements and insulated from rapid ambient temperature changes that could affect its readings.

In summary, the DS18B20+TCKJ is a highly effective digital temperature sensor, offering precise measurements for a variety of applications. Proper setup involves ensuring stable power supply connections, appropriate grounding, and configuring the data line correctly. The option to use parasitic power provides flexibility in certain scenarios. Moreover, thoughtful consideration of the PCB layout and sensor placement is crucial to obtaining accurate and reliable temperature data from the DS18B20+TCKJ.
