Analog Devices Inc./Maxim Integrated DS18B20+CKJ

Part No.:: DS18B20+CKJ

Manufacturer:: Analog Devices Inc./Maxim Integrated

Package:: TO-226-3, TO-92-3 (TO-226AA)

Datasheet:

Description:: HIGH PRECISION 1-WIRE TEMPERATUR

In Stock:: 3649

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

DS18B20+CKJ Specifications

Packaging:
Bag
Series:
-
ProductStatus:
Obsolete
SensorType:
Digital, Local
SensingTemperature-Local:
-55°C ~ 125°C
SensingTemperature-Remote:
-
OutputType:
1-Wire®
Voltage-Supply:
3V ~ 5.5V
Resolution:
12 b
Features:
Output Switch, Programmable Limit, Programmable Resolution
Accuracy-Highest(Lowest):
±0.5°C (±2°C)
TestCondition:
-10°C ~ 85°C (-55°C ~ 125°C)
OperatingTemperature:
-55°C ~ 125°C
MountingType:
Through Hole

DS18B20+CKJ this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including DS18B20+CKJ price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for DS18B20+CKJ to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

DS18B20+CKJ information

Views：

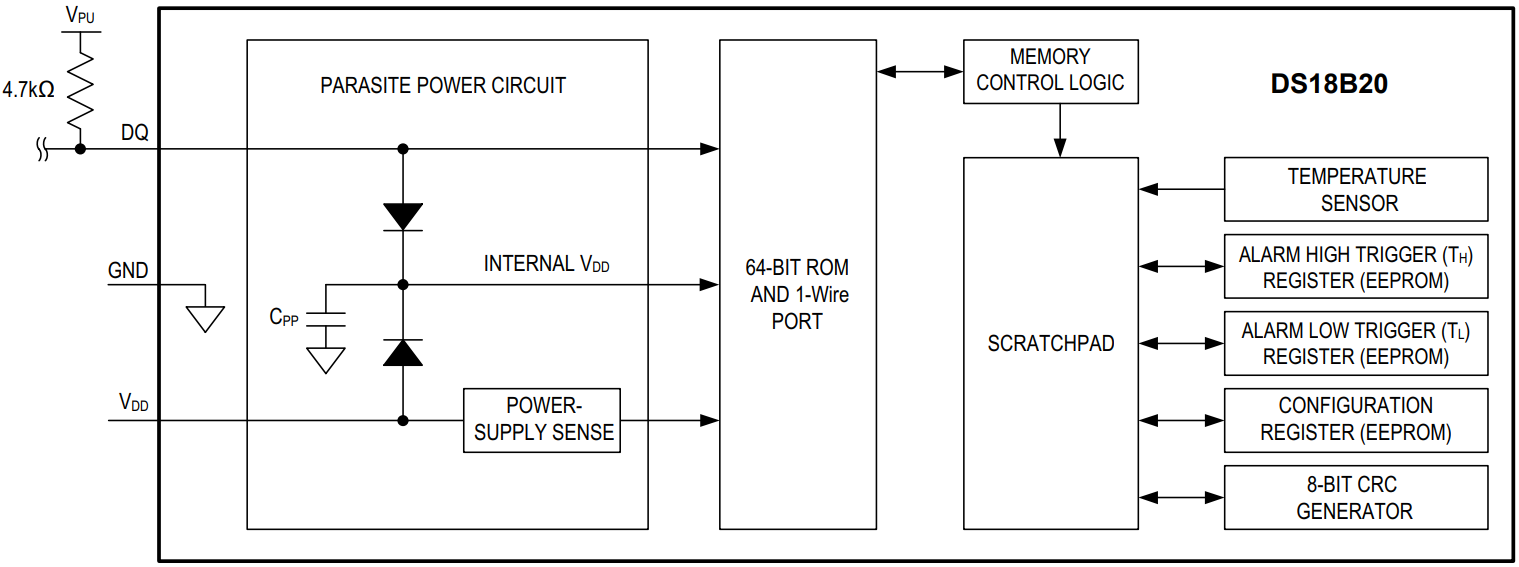

DS18B20+CKJ Typical application Circuitry

DS18B20+CKJ

The DS18B20+CKJ is part of the DS18B20 series of digital temperature sensors manufactured by Maxim Integrated. The DS18B20 series is highly regarded for its precision and ability to transmit temperature data digitally via a one-wire interface. These sensors are extensively used in a variety of applications, from environmental monitoring to HVAC systems, due to their reliability and accuracy. The DS18B20+CKJ variant, like others in the DS18B20 family, is designed to simplify integration into various systems, offering a straightforward approach to accurate temperature measurement.

1. Power Supply Connectivity: The DS18B20+CKJ operates with a supply voltage ranging from 3.0V to 5.5V. This voltage range is where the power supply for the VDD pin has to be attached. It is essential to have a stable power supply in order to maintain accurate temperature measurements.

2. Grounding the Sensor: Connect the GND pin of the DS18B20+CKJ to the ground in your circuit. This connection determines the sensor's stability and measurement accuracy.

3. Data Line Setup: The DS18B20+CKJ communicates over a one-wire bus, requiring minimal wiring for data transmission. Connect the DQ (Data) pin to a digital input/output pin on your microcontroller. A pull-up resistor, typically around 4.7kΩ, should be connected between the VDD and DQ pins to ensure reliable data communication.

4. Parasitic Power Mode Option: The 'parasitic power' mode of operation for the DS18B20+CKJ is obtaining power from the data line. In this configuration, the VDD pin is connected to ground, and the DQ line is powered through the pull-up resistor. This mode reduces wiring but may affect the sensor's performance in certain conditions.

5. Considerations for PCB and Wiring: When designing a PCB or setting up a circuit, keep the data line as short as possible to avoid signal degradation. If longer wires are needed, consider using a lower resistance for the pull-up resistor to maintain signal quality.

6. Placement for Accurate Temperature Measurement: Ensure the DS18B20+CKJ is placed in a location that represents the environment you want to measure accurately. Avoid placing it near heat-generating components or in areas subject to rapid temperature fluctuations not representative of the overall environment.

In summary, the DS18B20+CKJ is a highly efficient and accurate temperature sensor, suitable for a wide range of applications. Correctly setting up the power supply, grounding, and data line, as well as considering the option of parasitic power mode, are crucial for optimal performance. Additionally, proper PCB design and thoughtful sensor placement are key to ensuring accurate and reliable temperature readings from the DS18B20+CKJ.
