Analog Devices Inc./Maxim Integrated DS18B20+

Part No.:: DS18B20+

Manufacturer:: Analog Devices Inc./Maxim Integrated

Package:: TO-226-3, TO-92-3 (TO-226AA)

Datasheet:: DS18B20+.pdf

Description:: SENSOR DIGITAL -55C-125C TO92-3

In Stock:: 3868

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

DS18B20+ Specifications

Packaging:
Bulk
Series:
-
ProductStatus:
Active
SensorType:
Digital, Local
SensingTemperature-Local:
-55°C ~ 125°C
SensingTemperature-Remote:
-
OutputType:
1-Wire®
Voltage-Supply:
3V ~ 5.5V
Resolution:
12 b
Features:
Output Switch, Programmable Limit, Programmable Resolution
Accuracy-Highest(Lowest):
±0.5°C (±2°C)
TestCondition:
-10°C ~ 85°C (-55°C ~ 125°C)
OperatingTemperature:
-55°C ~ 125°C
MountingType:
Through Hole

DS18B20+ this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including DS18B20+ price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for DS18B20+ to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

DS18B20+ information

Views：

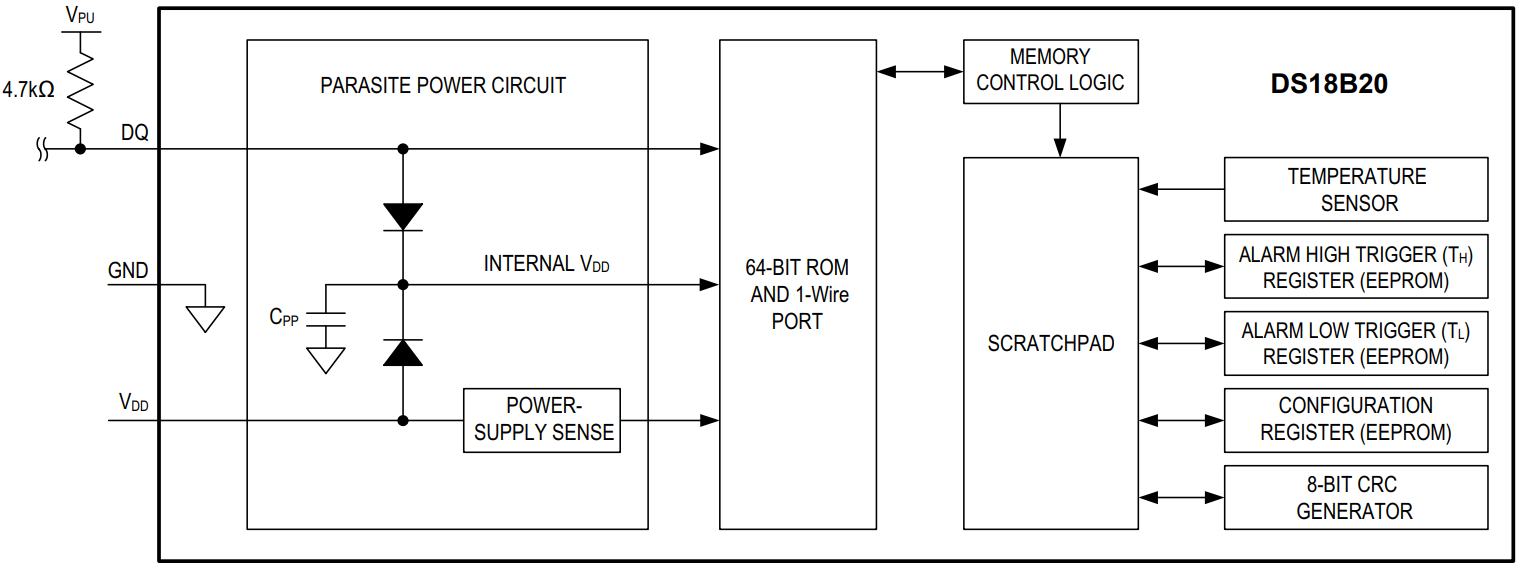

DS18B20+ Typical application Circuitry

DS18B20+

The DS18B20+ is a model in the DS18B20 series of digital temperature sensors designed by Maxim Integrated. Renowned for their high precision and ability to transmit temperature data digitally via a one-wire interface, the DS18B20 sensors are widely used in various fields such as environmental monitoring, HVAC systems, and industrial temperature control. These sensors are appreciated for their ease of integration into different systems and their ability to function in both powered and parasitic power modes.

1. Power Supply Connection: The DS18B20+ operates within a 3.0V to 5.5V range. Connect the VDD pin to a power source that falls within this specified voltage range. Maintaining a steady power source is essential to the correct operation of the sensor.

2. Grounding the Sensor: Link the GND pin of the DS18B20+ to the ground in your circuit. This grounding is necessary for the stability and proper functioning of the sensor.

3. Data Line Configuration: The DS18B20+ communicates through a one-wire bus. Connect the DQ (Data) pin to a digital input/output pin on your microcontroller. A pull-up resistor, typically around 4.7kΩ, should be connected between the VDD and DQ pins to ensure reliable data communication.

4. Parasitic Power Mode: The DS18B20+ needs electricity from the data line in order to operate while it is in "parasitic power" mode. In this configuration, the VDD pin is connected to ground, and the DQ line is powered through the pull-up resistor. This mode is advantageous for minimizing wiring.

5. PCB and Wiring Design Considerations: In your PCB design or circuit setup, keep the data line as short as possible to minimize signal loss. If longer wires are necessary, consider adjusting the value of the pull-up resistor to maintain signal quality.

6. Sensor Placement for Accurate Measurement: Ensure the DS18B20+ is placed in an environment that accurately represents the temperature you wish to measure. It should be positioned away from heat-generating components and insulated from rapid ambient temperature changes that are not part of the monitored environment.

In summary, the DS18B20+ is a versatile and precise digital temperature sensor, ideal for a variety of applications where accurate temperature monitoring is essential. Proper setup involves ensuring a stable power supply, appropriate grounding, and configuring the data line with a pull-up resistor. The option to use parasitic power mode adds flexibility in specific scenarios. Additionally, careful PCB design and sensor placement are key to obtaining reliable and accurate temperature data from the DS18B20+.
