Texas Instruments DRV8876PWPR

Part No.:: DRV8876PWPR

Manufacturer:: Texas Instruments

Package:: 16-PowerTSSOP (0.173, 4.40mm Width)

Datasheet:: DRV8876PWPR.pdf

Description:: IC MOTOR DRIVER DC 5.5V 16HTSSOP

In Stock:: 2174

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

DRV8876PWPR Specifications

Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
-
ProductStatus:
Active
MotorType-Stepper:
Unipolar
MotorType-ACDC:
Brushed DC
Function:
Driver - Fully Integrated, Control and Power Stage
OutputConfiguration:
Half Bridge (2)
Interface:
PWM
Technology:
NMOS
StepResolution:
-
Applications:
DC Motors, General Purpose, Stepper Motors
Current-Output:
3.5A
Voltage-Supply:
0V ~ 5.5V
Voltage-Load:
4.5V ~ 37V
OperatingTemperature:
-40°C ~ 125°C (TA)
MountingType:
Surface Mount

DRV8876PWPR this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including DRV8876PWPR price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for DRV8876PWPR to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

DRV8876PWPR information

Views：

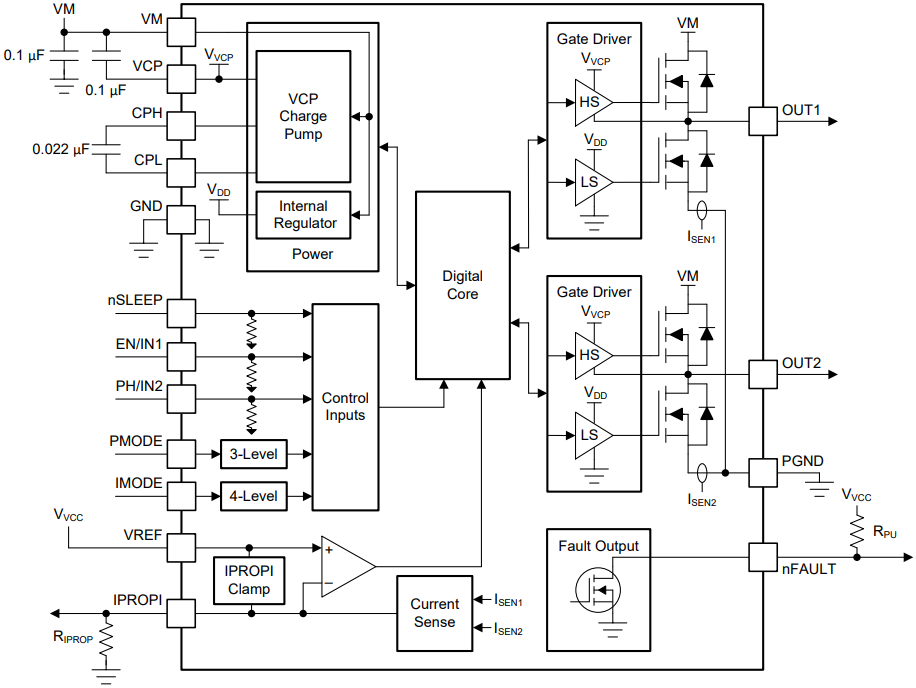

DRV8876PWPR Typical application Circuitry

DRV8876PWPR

The DRV8876PWPR is part of Texas Instruments' DRV8876 series, known for its advanced motor driver solutions, particularly aimed at brushed DC motors. Because of its capacity to efficiently manage motors, this series is highly regarded in a variety of industries, including industrial automation, automotive systems, and consumer electronics. The DRV8876PWPR stands out with its single H-bridge design, enabling it to control one DC motor with capabilities such as forward, reverse, braking, and speed control. It also incorporates features like adjustable current regulation, overcurrent protection, and thermal shutdown, making it a versatile and reliable choice for motor control applications.

1. Power Supply Connection: The DRV8876PWPR operates within a voltage range of 4.5V to 37V. Connect the VM pin to a suitable power source within this range. A decoupling capacitor near the VM pin is advisable to ensure a stable power supply and minimize electrical noise.

2. Grounding Strategy (GND Pin): The device includes a Ground (GND) pin, essential for the stability and optimal functioning of the DRV8876PWPR. Connect this pin to the system's ground.

3. Motor Connection (OUT1 and OUT2 Pins): The DRV8876PWPR controls the motor via the OUT1 and OUT2 pins. These should be connected to the two terminals of a DC motor, enabling control of motor direction and speed.

4. Input Signal Integration (IN1 and IN2 Pins): The IN1 and IN2 pins are used for receiving input control signals that dictate the motor's operation. Connect these to output controls from a microcontroller or another control system.

5. Enable Functionality (nSLEEP Pin): The DRV8876PWPR features an nSLEEP pin, used for enabling or disabling the motor driver. Connect this pin to a high logic level for operation, or to a low logic level for sleep mode.

6. Fault Indication (nFAULT Pin): The nFAULT pin is an open-drain output that signals fault conditions such as overcurrent or thermal overload. Connect this pin to a microcontroller input for effective fault detection and management.

7. PCB Layout Design: When designing the PCB for the DRV8876PWPR, it's important to efficiently manage motor control paths and separate power and signal traces to minimize electromagnetic interference.

8. Thermal Management and Protective Measures: Given the DRV8876PWPR's power handling capabilities, implementing thermal management solutions and protective components such as resistors and capacitors is advisable for enhanced performance and durability.

In conclusion, the DRV8876PWPR is an efficient and reliable motor driver, ideal for controlling brushed DC motors in a variety of applications. Proper connections for power supply, grounding, motor control, input signals, enable function, and fault indication, combined with a well-organized PCB layout and thermal management, are key to optimizing the performance of the DRV8876PWPR in your motor control systems.
