Texas Instruments DRV8873SPWPRQ1

Part No.:: DRV8873SPWPRQ1

Manufacturer:: Texas Instruments

Package:: 24-TSSOP (0.173, 4.40mm Width) Exposed Pad

Datasheet:: DRV8873SPWPRQ1.pdf

Description:: IC MTRDRV UNIPLR 0-5.5V 24HTSSOP

In Stock:: 2620

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

DRV8873SPWPRQ1 Specifications

Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
Automotive, AEC-Q100
ProductStatus:
Active
MotorType-Stepper:
Unipolar
MotorType-ACDC:
Brushed DC
Function:
Driver - Fully Integrated, Control and Power Stage
OutputConfiguration:
Half Bridge (2)
Interface:
SPI
Technology:
NMOS
StepResolution:
-
Applications:
Automotive, Industrial
Current-Output:
10A
Voltage-Supply:
0V ~ 5.5V
Voltage-Load:
4.5V ~ 38V
OperatingTemperature:
-40°C ~ 125°C (TA)
MountingType:
Surface Mount

DRV8873SPWPRQ1 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including DRV8873SPWPRQ1 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for DRV8873SPWPRQ1 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

DRV8873SPWPRQ1 information

Views：

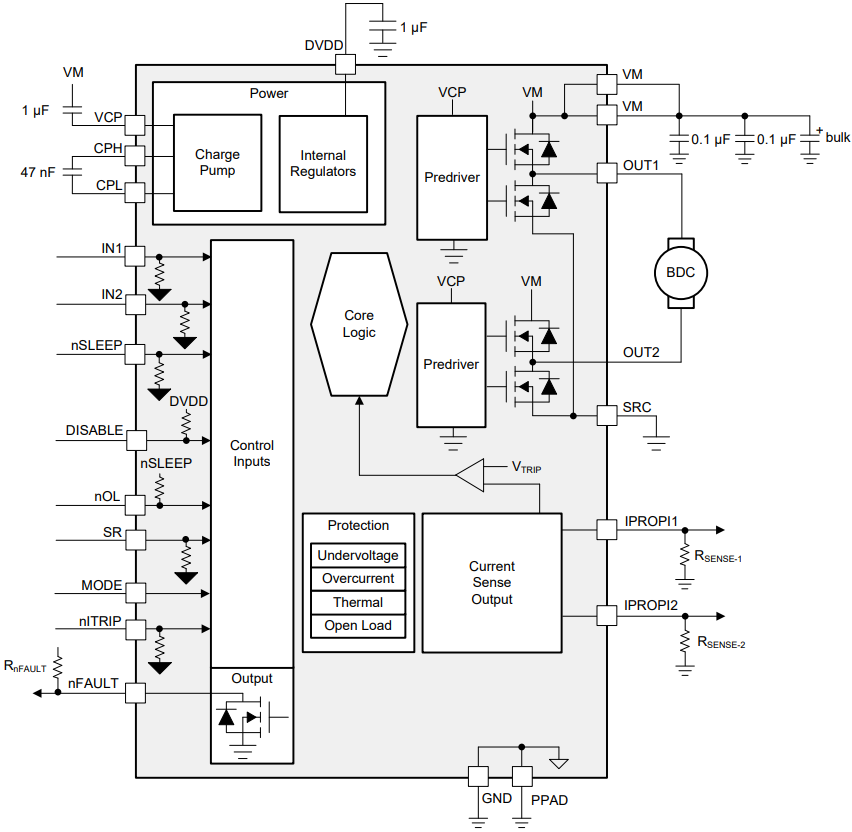

DRV8873SPWPRQ1 Typical application Circuitry

DRV8873SPWPRQ1

The DRV8873SPWPRQ1 is part of Texas Instruments' DRV8873 series, specifically engineered for automotive and industrial motor control applications. This series is acclaimed for its ability to efficiently drive brushed DC motors. The DRV8873SPWPRQ1 is characterized by its integrated H-bridge design, enabling control of one DC motor with a range of functionalities including forward, reverse, braking, and speed control. It also boasts advanced protection features such as overcurrent protection, thermal shutdown, and a wide operating voltage range, making it a robust and versatile choice for demanding motor control environments.

1. Power Supply Configuration: The DRV8873SPWPRQ1 operates within a voltage range of 4.5V to 38V. Connect the VM pin to an appropriate power source within this range. Including a decoupling capacitor near the VM pin is recommended to ensure a stable power supply and to minimize electrical noise.

2. Grounding Approach (GND Pin): The device includes a Ground (GND) pin, which should be connected to the system's ground. This connection is essential for the stability and optimal functioning of the DRV8873SPWPRQ1.

3. Motor Connection (OUT1 and OUT2 Pins): The DRV8873SPWPRQ1 controls the motor via the OUT1 and OUT2 pins. Connect these pins to the two terminals of a DC motor, facilitating control over the motor's direction and speed.

4. Input Signal Integration (IN1 and IN2 Pins): The IN1 and IN2 pins are used for receiving input control signals that determine the motor's operation. Connect these to the output controls from a microcontroller or another control system.

5. Enable Functionality (nSLEEP Pin): The DRV8873SPWPRQ1 features an nSLEEP pin, used for enabling or disabling the motor driver. Connect this pin to a high logic level for operation, or to a low logic level to put the device in sleep mode.

6. Fault Indication (nFAULT Pin): The nFAULT pin is an open-drain output that signals fault conditions like overcurrent or thermal overload. Connect this pin to a microcontroller input for fault detection and management.

7. PCB Layout Design: When designing the PCB for the DRV8873SPWPRQ1, it's important to manage motor control paths efficiently and to separate power and signal traces to minimize electromagnetic interference.

8. Thermal Management and Protective Measures: Considering the DRV8873SPWPRQ1's power handling capacity, implementing thermal management solutions and protective components such as resistors and capacitors is advisable for enhanced performance and durability.

In summary, the DRV8873SPWPRQ1 is a highly capable and efficient motor driver, ideal for controlling brushed DC motors in automotive and industrial applications. Proper connections for power supply, grounding, motor control, input signals, enable function, and fault indication, combined with a well-planned PCB layout and thermal management, are key to maximizing the effectiveness of the DRV8873SPWPRQ1 in your motor control systems.
