Texas Instruments DRV8871DDAR

Part No.:: DRV8871DDAR

Manufacturer:: Texas Instruments

Package:: 8-PowerSOIC (0.154, 3.90mm Width)

Datasheet:: DRV8871DDAR.pdf

Description:: IC MOTOR DRVR UNIPLR 8SO PWRPAD

In Stock:: 3265

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

DRV8871DDAR Specifications

Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
-
ProductStatus:
Active
MotorType-Stepper:
Unipolar
MotorType-ACDC:
Brushed DC
Function:
Driver - Fully Integrated, Control and Power Stage
OutputConfiguration:
Full Bridge
Interface:
PWM
Technology:
NMOS
StepResolution:
-
Applications:
DC Motors, General Purpose, Stepper Motors
Current-Output:
3.6A
Voltage-Supply:
0V ~ 5.5V
Voltage-Load:
6.5V ~ 45V
OperatingTemperature:
-40°C ~ 125°C (TA)
MountingType:
Surface Mount

DRV8871DDAR this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including DRV8871DDAR price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for DRV8871DDAR to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

DRV8871DDAR information

Views：

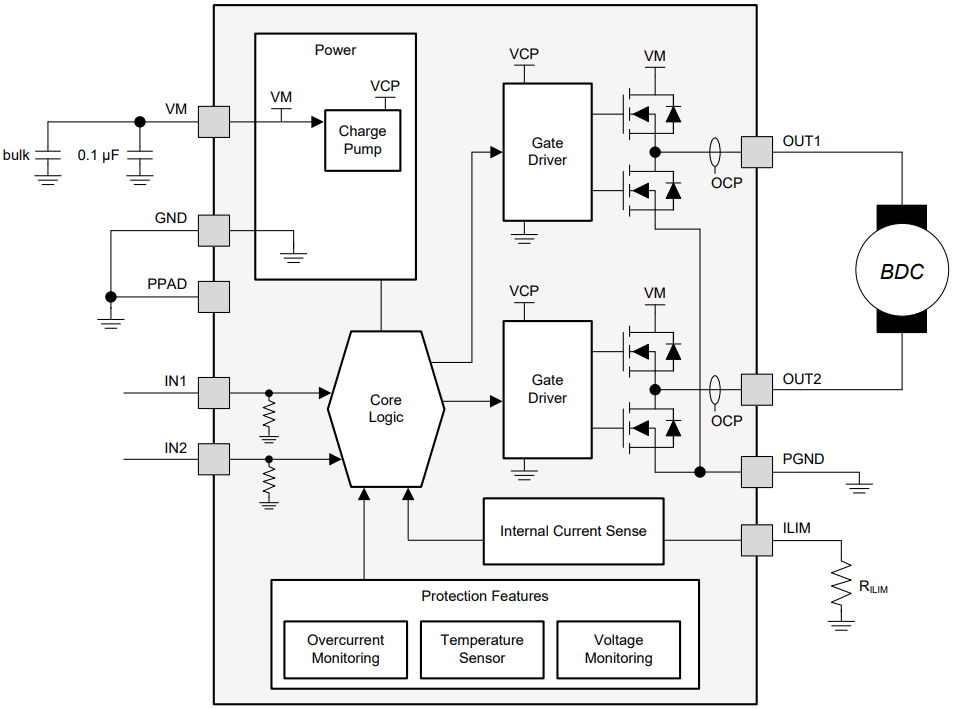

DRV8871DDAR Typical application Circuitry

DRV8871DDAR

The is part of Texas Instruments' DRV8871 series, known for its specialized motor driver solutions primarily aimed at controlling brushed DC motors. This series is lauded for its ability to deliver efficient motor driving in various applications, including industrial tools, automotive applications, and consumer electronics. The distinguishes itself with its single H-bridge design, allowing it to control one DC motor with functionalities like forward, reverse, braking, and speed control. It also features advanced protection capabilities such as overcurrent protection, thermal shutdown, and a wide operating voltage range, making it a robust choice for diverse motor control scenarios.

1. Power Supply Arrangement: The DRV8871DDAR operates within a voltage range of 6.5V to 45V. Connect the VM pin to an appropriate power source within this range. To maintain a consistent power supply and to reduce noise, a decoupling capacitor near the VM pin is recommended.

2. Grounding Approach (GND Pin): The device includes a Ground (GND) pin, which should be connected to the system's ground. This connection is essential for the stability and optimal functioning of the DRV8871DDAR.

3. Motor Connection (OUT1 and OUT2 Pins): The DRV8871DDAR controls the motor via the OUT1 and OUT2 pins. These should be connected to the two terminals of a DC motor, allowing control of motor direction and speed.

4. Input Signal Integration (IN1 and IN2 Pins): The IN1 and IN2 pins are designated for receiving input control signals that determine the motor's operation. Connect these to the output controls from a microcontroller or another control system.

5. Enable Functionality (nSLEEP Pin): The DRV8871DDAR features an nSLEEP pin for enabling or disabling the motor driver. Connect this pin to a high logic level for operation, or to a low logic level for sleep mode.

6. Fault Indication (nFAULT Pin): The nFAULT pin is an open-drain output that indicates fault conditions like overcurrent or thermal overload. This pin should be interfaced with a microcontroller for effective fault detection and management.

7. PCB Layout Design: Designing the PCB for the DRV8871DDAR requires careful management of motor control paths and the separation of power and signal traces to minimize electromagnetic interference.

8. Thermal Management and Protective Measures: Considering the DRV8871DDAR's power handling capacity, implementing thermal management solutions and protective components such as resistors and capacitors is advisable for enhanced performance and durability.

In summary, the DRV8871DDAR is an efficient and reliable motor driver, ideal for controlling brushed DC motors in various applications. Ensuring proper connections for the power supply, grounding, motor control, input signals, enable function, and fault indication, combined with a well-organized PCB layout and thermal management, are crucial for optimizing the performance of the DRV8871DDAR in motor control systems.
