Texas Instruments DRV8833PWPR

Part No.:: DRV8833PWPR

Manufacturer:: Texas Instruments

Package:: 16-PowerTSSOP (0.173, 4.40mm Width)

Datasheet:: DRV8833PWPR.pdf

Description:: IC MOTOR DRIVER PAR 16HTSSOP

In Stock:: 3829

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

DRV8833PWPR Specifications

Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®,Bulk
Series:
-
ProductStatus:
Active
MotorType-Stepper:
Bipolar
MotorType-ACDC:
Brushed DC
Function:
Driver - Fully Integrated, Control and Power Stage
OutputConfiguration:
Half Bridge (4)
Interface:
PWM
Technology:
NMOS
StepResolution:
-
Applications:
DC Motors, General Purpose, Solenoids
Current-Output:
1.5A
Voltage-Supply:
2.7V ~ 10.8V
Voltage-Load:
2.7V ~ 10.8V
OperatingTemperature:
-40°C ~ 150°C (TJ)
MountingType:
Surface Mount

DRV8833PWPR this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including DRV8833PWPR price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for DRV8833PWPR to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

DRV8833PWPR information

Views：

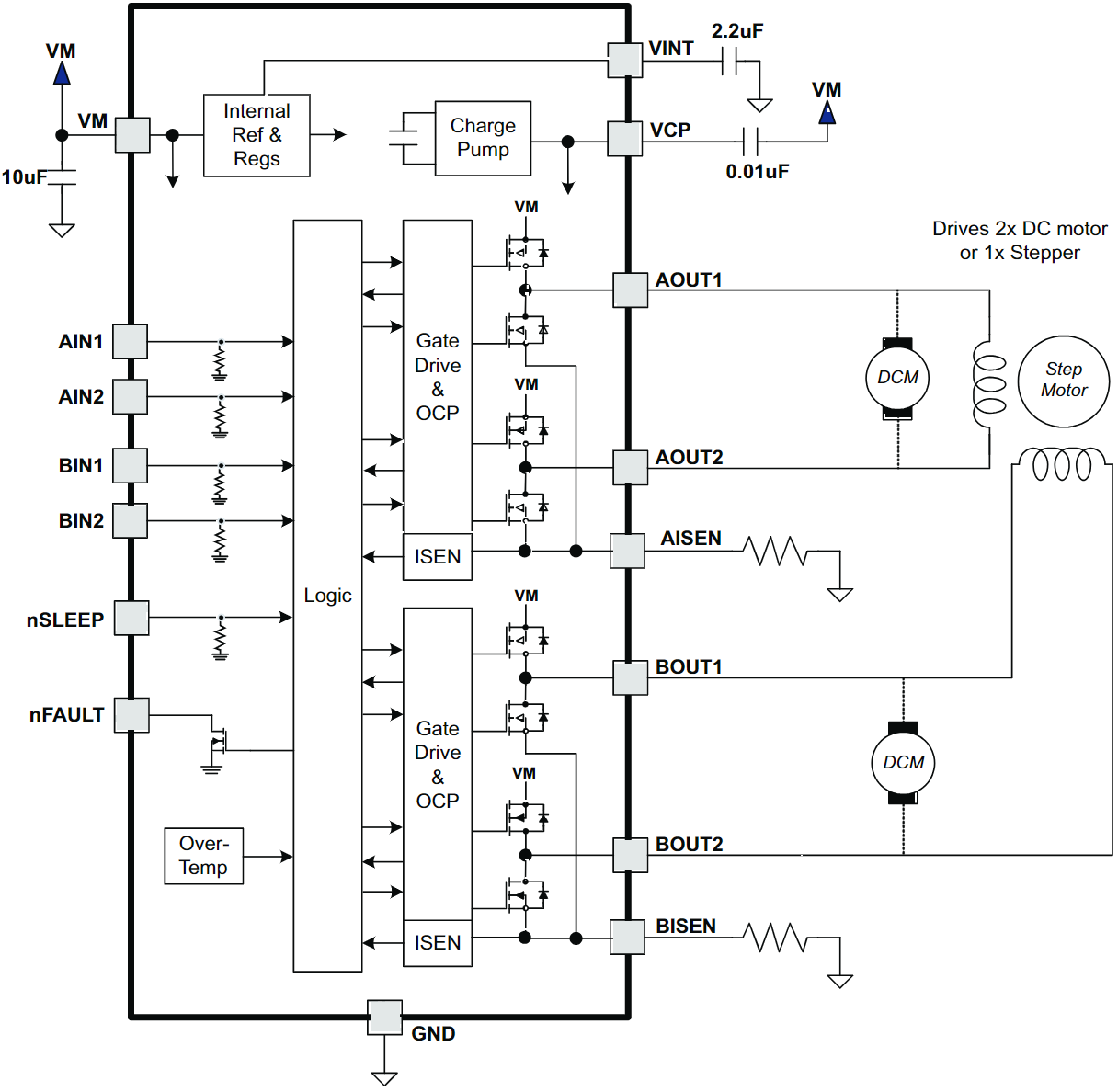

DRV8833PWPR Typical application Circuitry

DRV8833PWPR

The DRV8833PWPR is part of Texas Instruments' DRV8833 series, designed specifically for motor control applications. This series is particularly known for its versatility and efficiency in driving small brushed DC motors and stepper motors. The DRV8833PWPR stands out for its dual H-bridge design, allowing it to control either two independent DC motors or one bipolar stepper motor. This makes it a popular choice in compact and battery-operated applications like robotics, portable medical devices, and consumer electronics. The DRV8833PWPR also incorporates features such as overcurrent protection, thermal shutdown, and a wide operating voltage range.

1. Power Supply Configuration: The DRV8833PWPR operates with a power supply range of 2.7V to 10.8V. Connect the VM pin to an appropriate power source within this voltage spectrum. Using a decoupling capacitor close to the VM pin is recommended to ensure stable power supply and noise reduction.

2. Grounding Scheme (GND Pin): The device includes a Ground (GND) pin that should be connected to your system's ground. This connection is crucial for the DRV8833PWPR's stability and optimal performance.

3. Motor Connections (OUT1A, OUT1B, OUT2A, OUT2B Pins): The DRV8833PWPR controls two motors via the OUT1A, OUT1B, OUT2A, and OUT2B pins. These should be connected to the terminals of two DC motors or the coils of one bipolar stepper motor for effective control.

4. Input Signal Integration (IN1A, IN2A, IN1B, IN2B Pins): The IN1A, IN2A, IN1B, and IN2B pins receive input control signals that dictate the motors' operations. These should be connected to the output controls from a microcontroller or another control system.

5. Enable Function (nSLEEP Pin): The DRV8833PWPR includes an nSLEEP pin, used for enabling or disabling the motor driver. This pin should be connected to a high logic level for operation and a low logic level for putting the device in sleep mode.

6. Fault Indication (nFAULT Pin): The nFAULT pin is an open-drain output that provides fault condition indication, such as overcurrent or thermal overload. Connect this pin to a microcontroller input for fault monitoring and response.

7. PCB Layout Design: When designing the PCB for the DRV8833PWPR, it's important to manage high-current paths efficiently and segregate power and signal traces to minimize electromagnetic interference.

8. Thermal Management and Protection: Given the DRV8833PWPR's power handling capacity, implementing thermal management solutions like heatsinks and including protective components such as resistors and capacitors is advisable for enhanced durability and performance.

In summary, the DRV8833PWPR is a versatile and efficient motor driver, ideal for controlling small DC or stepper motors in a variety of applications. Proper connections for the power supply, grounding, motor outputs, control inputs, enable function, and fault indication, combined with a well-thought-out PCB design and effective thermal management, are crucial for optimizing the performance of the DRV8833PWPR in motor control projects.
