Texas Instruments DRV8833CPWPR

Part No.:: DRV8833CPWPR

Manufacturer:: Texas Instruments

Package:: 16-PowerTSSOP (0.173, 4.40mm Width)

Datasheet:: DRV8833CPWPR.pdf

Description:: IC MOTOR DRIVER PAR

In Stock:: 2467

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

DRV8833CPWPR Specifications

Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
-
ProductStatus:
Active
MotorType-Stepper:
Bipolar
MotorType-ACDC:
Brushed DC
Function:
Driver - Fully Integrated, Control and Power Stage
OutputConfiguration:
Half Bridge (4)
Interface:
PWM
Technology:
Power MOSFET
StepResolution:
-
Applications:
DC Motors, General Purpose, Solenoids
Current-Output:
700mA
Voltage-Supply:
2.7V ~ 10.8V
Voltage-Load:
2.7V ~ 10.8V
OperatingTemperature:
-40°C ~ 150°C (TJ)
MountingType:
Surface Mount

DRV8833CPWPR this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including DRV8833CPWPR price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for DRV8833CPWPR to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

DRV8833CPWPR information

Views：

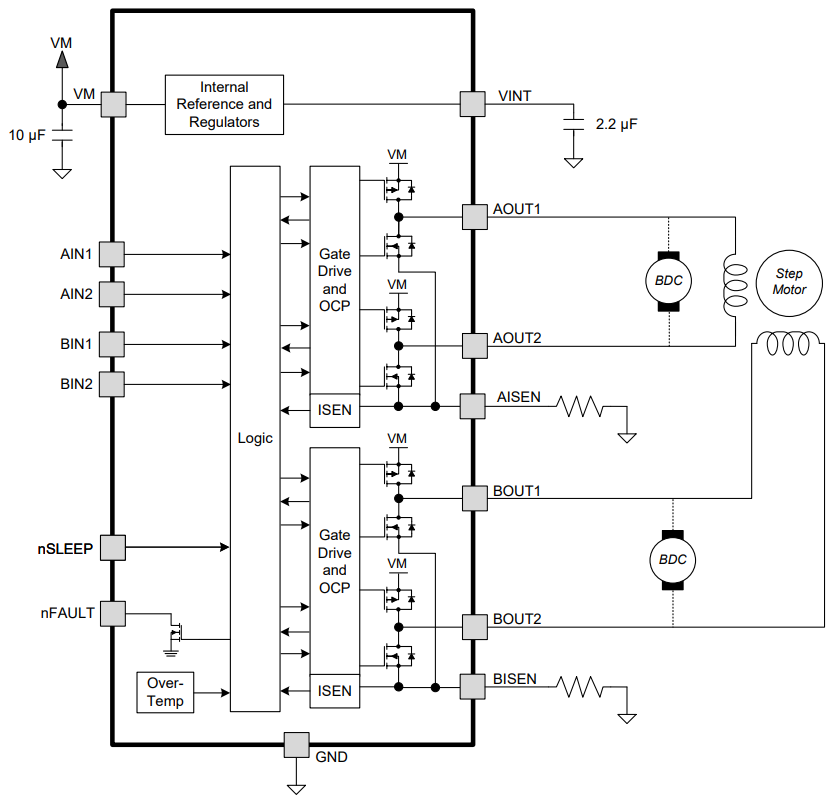

DRV8833CPWPR Typical application Circuitry

DRV8833CPWPR

The DRV8833CPWPR is part of Texas Instruments' DRV88xx series of motor drivers, specifically designed for controlling brushed DC motors, stepper motors, and solenoids. This series is recognized for its integration of advanced control features, robust protection mechanisms, and versatility, making it well-suited for a broad range of applications from consumer electronics to industrial automation. The "DRV8833" identifies this particular model as a dual H-bridge motor driver capable of driving two DC motors or one stepper motor, "CPWP" likely refers to the package type, which is a 16-pin HTSSOP (Thin Shrink Small Outline Package), and "R" indicates tape and reel packaging for automated assembly processes.

1. Integration of DRV8833CPWPR in the DRV88xx Motor Driver Series: As a dual H-bridge motor driver, the DRV8833CPWPR is engineered to provide independent control of two brushed DC motors or one bipolar stepper motor, with features like adjustable current control and low-power sleep mode. It's designed for applications that require precise motor control and efficient power usage.

2. Pin Configuration and Connection Strategy: The DRV8833CPWPR features 16 pins, including motor output pins (OUT1A, OUT1B, OUT2A, OUT2B) for connecting to motor windings, input pins for control signals (IN1, IN2 for one motor; IN3, IN4 for the second motor), power supply pins (VM for motor power, VCC for logic power), and ground (GND) pins. To integrate this device, connect the motor output pins directly to the motors, ensuring the correct polarity for desired motor rotation. The control input pins should be interfaced with the output from a microcontroller or another control unit, configuring the PWM signals for speed and direction control. The VM and VCC pins must be connected to the appropriate power supplies, with decoupling capacitors placed close to these pins to ensure stable operation.

3. Effective Implementation of DRV8833CPWPR in Motor Control Circuits: To incorporate the DRV8833CPWPR into a motor control system, provide a stable power supply to the VM pin for the motors and VCC for the device's logic. The ground pins should be securely connected to the system's ground. Interface the control input pins with the control circuitry, setting up the necessary PWM signals for motor operation. The motor output pins should be connected to the motor terminals, taking into account the electrical specifications of the motors and the wiring configuration.

4. Optimizing DRV8833CPWPR's Performance: Achieving optimal motor control with the DRV8833CPWPR involves careful PCB layout to minimize noise and ensure robust connections for both the power and signal lines. This includes using thick traces for motor outputs to handle the current, strategic placement of decoupling capacitors near the power pins, and considering thermal management strategies to dissipate heat effectively.

5. Strategic Design Considerations for DRV8833CPWPR Applications: Utilizing the DRV8833CPWPR effectively requires an understanding of its operational modes, current control capabilities, and protection features such as overcurrent, thermal shutdown, and undervoltage lockout. System designers should account for these features when integrating the DRV8833CPWPR into their applications, ensuring compatibility with the motor types and desired control schemes.

6. Versatile Applications of DRV8833CPWPR: The DRV8833CPWPR's dual H-bridge configuration and efficient power management make it suitable for a variety of motor control applications, including robotics, battery-powered toys, and portable electronic devices, where compact, efficient motor control is essential.

In summary, the DRV8833CPWPR from Texas Instruments' DRV88xx series is a versatile motor driver designed for controlling brushed DC motors or bipolar stepper motors in various electronic systems. Successful integration requires careful attention to pin connections, PCB layout, and thermal management, ensuring that the DRV8833CPWPR effectively meets the demands of applications requiring precise and efficient motor control.
