Texas Instruments DRV8832DGQR

Part No.:: DRV8832DGQR

Manufacturer:: Texas Instruments

Package:: 10-PowerTFSOP, 10-MSOP (0.118, 3.00mm Width)

Datasheet:: DRV8832DGQR.pdf

Description:: IC MTR DRV BIPLR 2.75-6.8V 10SOP

In Stock:: 2105

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

DRV8832DGQR Specifications

Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®,Bulk
Series:
-
ProductStatus:
Active
MotorType-Stepper:
Bipolar
MotorType-ACDC:
Brushed DC
Function:
Driver - Fully Integrated, Control and Power Stage
OutputConfiguration:
Half Bridge (2)
Interface:
Parallel
Technology:
Power MOSFET
StepResolution:
-
Applications:
Battery Powered
Current-Output:
1A
Voltage-Supply:
2.75V ~ 6.8V
Voltage-Load:
2.75V ~ 6.8V
OperatingTemperature:
-40°C ~ 150°C (TJ)
MountingType:
Surface Mount

DRV8832DGQR this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including DRV8832DGQR price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for DRV8832DGQR to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

DRV8832DGQR information

Views：

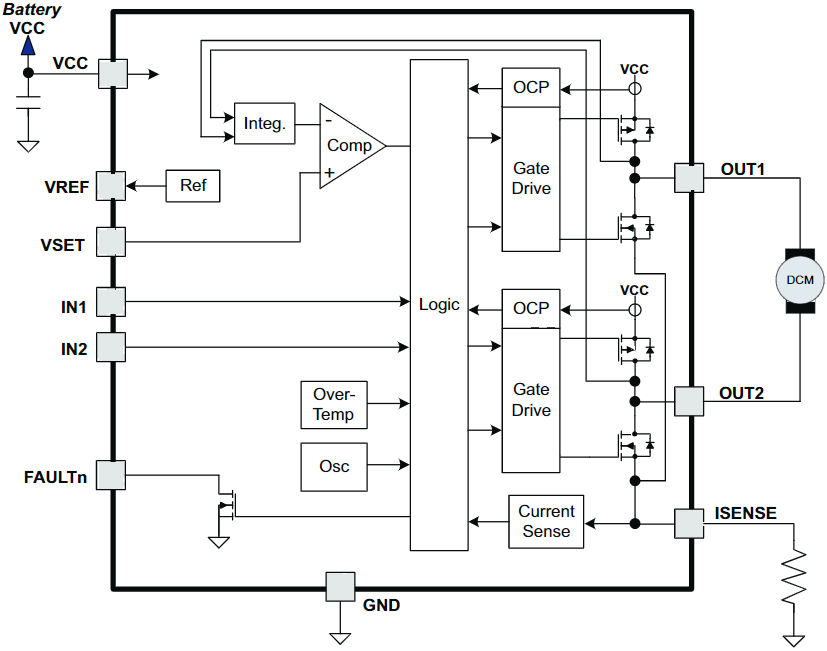

DRV8832DGQR Typical application Circuitry

DRV8832DGQR

The DRV8832DGQR is a notable member of Texas Instruments' DRV8832 series, which is designed for efficient control of brushed DC motors. This series is highly regarded for its compact size and efficiency, making it a suitable choice for battery-powered and portable applications such as toys, medical devices, and other consumer electronics. The DRV8832DGQR, in particular, is known for its single H-bridge design, allowing it to control one DC motor with forward, reverse, and braking functions, and it incorporates features like overcurrent protection, thermal shutdown, and a low operating voltage range.

1. Power Supply Configuration: The DRV8832DGQR operates within a voltage range of 2.75V to 6.8V. Connect the VM pin to a suitable power source within this range. To guarantee a consistent power supply and reduce noise, a decoupling capacitor near the VM pin is recommended.

2. Grounding Strategy (GND Pin): The device has a single Ground (GND) pin, which should be connected to the system's ground. This connection is essential for the stability and optimal performance of the DRV8832DGQR.

3. Motor Connection (OUT1 and OUT2 Pins): The motor is controlled by the DRV8832DGQR via the OUT1 and OUT2 pins. These should be connected to the two terminals of a DC motor to enable control of motor direction and speed.

4. Input Signal Integration (IN1 and IN2 Pins): The IN1 and IN2 pins are used for receiving input control signals that determine the motor's direction and speed. Connect these to control outputs from a microcontroller or other control systems.

5. Enable Function (nSLEEP Pin): The DRV8832DGQR includes an nSLEEP pin, which is used for enabling or disabling the motor driver. When connected to a high logic level, the device is operational, while a low logic level puts the device in sleep mode for power saving.

6. Fault Indication (nFAULT Pin): The nFAULT pin is an open-drain output that indicates fault conditions such as overcurrent or thermal overload. This pin should be connected to an input pin on a microcontroller for fault detection and management.

7. PCB Layout Considerations: When designing the PCB for the DRV8832DGQR, prioritize efficient routing for the motor control paths and separate power and signal traces to minimize electromagnetic interference.

8. Thermal Management and Protection: Due to the DRV8832DGQR's compact size and power handling capabilities, implementing thermal management solutions and protective components like resistors and capacitors is advisable for enhanced performance and durability.

In conclusion, the DRV8832DGQR is a compact and efficient motor driver, ideal for controlling brushed DC motors in a range of applications. Proper connections for power supply, grounding, motor control, input signals, enable function, and fault indication, combined with careful PCB design and thermal management, are key to maximizing the effectiveness of the DRV8832DGQR in your motor control systems.
