Texas Instruments DP83822IFRHBR

Part No.:: DP83822IFRHBR

Manufacturer:: Texas Instruments

Package:: 32-VFQFN Exposed Pad

Datasheet:: DP83822IFRHBR.pdf

Description:: IC INTERFACE SPECIALIZED 32VQFN

In Stock:: 2660

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

DP83822IFRHBR Specifications

Package/Case:
32-VFQFN Exposed Pad
Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
-
ProductStatus:
Active
Applications:
Ethernet
Interface:
MII, RMII
Voltage-Supply:
1.71V ~ 3.45V

DP83822IFRHBR this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including DP83822IFRHBR price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for DP83822IFRHBR to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

DP83822IFRHBR information

Views：

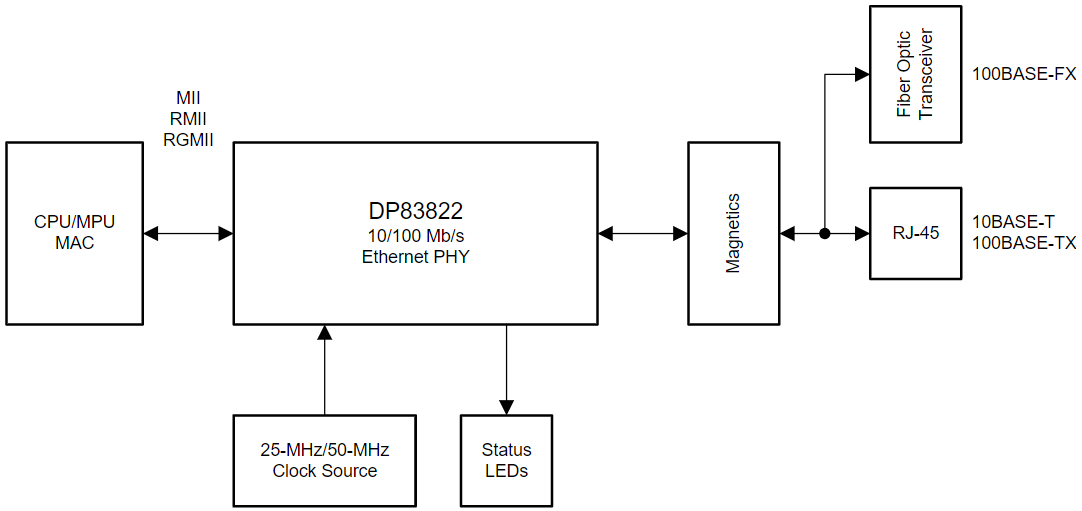

DP83822IFRHBR Typical application Circuitry

DP83822IFRHBR

Texas Instruments offers a reliable, low-power Ethernet physical layer transceiver called the DP83822IFRHBR. It belongs to the DP83822 family, designed to provide high performance and reliable network communications for both 10BASE-T and 100BASE-TX Ethernet protocols. The DP83822IFRHBR is distinguished by its enhanced features, including energy-efficient Ethernet (EEE) capabilities, advanced cable diagnostics, and flexible media support. This transceiver is commonly employed in industrial automation, embedded systems, and automotive networking, where efficient and dependable data transmission is essential.

1. Power Supply Connections: The DP83822IFRHBR requires a stable power source for its operation. Connect the VDD core and VDDIO pins to a 3.3V power supply. Using decoupling capacitors near these power pins is crucial for filtering noise and ensuring a stable power supply.

2. Grounding (GND Pins): Connect all ground pins of the DP83822IFRHBR to the common ground in your circuit. This step is fundamental for maintaining signal integrity and reducing noise in the system.

3. Ethernet Interface Integration: The DP83822IFRHBR's RJ-45 interface pins need to be correctly connected for network communication. The Transmit (TX) and Receive (RX) pins should be wired to the corresponding pins of an RJ-45 Ethernet connector, typically through transformers for signal conditioning.

4. Management Interface (MDIO and MDC Pins): The device is configured and managed via the Management Data Input/Output (MDIO) and Management Clock (MDC) pins. These should be connected to a compatible microcontroller or processor for device management.

5. LED Status Indicators: The DP83822IFRHBR provides pins for connecting LED indicators, which can be used to display link status and network activity. These pins should be connected to LEDs with suitable current-limiting resistors.

6. External Clock Source: A 25 MHz crystal or oscillator is required for the DP83822IFRHBR and should be connected to the XI and XO pins.

7. Reset Functionality (RESET Pin): The RESET pin allows for the external resetting of the PHY. This pin can be wired to a manual reset mechanism or a microcontroller.

8. Interrupt Signal (INT Pin): The INT pin is used to notify the host processor of status changes or events. On a microcontroller, this pin has to be attached to an interrupt line.

9. Strapping Options: Some pins on the DP83822IFRHBR are used for setting the default operation mode of the device. These pins may require specific high or low connections depending on the desired configuration.

10. PCB Layout Considerations: In designing the PCB, special attention should be paid to the management of trace impedance, minimizing noise, and ensuring signal integrity. Properly segregating digital and analog traces and implementing effective grounding techniques are critical.

In summary, the DP83822IFRHBR is a versatile and efficient Ethernet PHY transceiver, ideal for various network applications requiring dependable and efficient communication. Accurate connection of its power, grounding, Ethernet interface, configuration, and control pins, as well as a carefully designed PCB, are crucial for leveraging its full capabilities in network communication systems.
