Texas Instruments DP83822HRHBR

Part No.:: DP83822HRHBR

Manufacturer:: Texas Instruments

Package:: 32-VFQFN Exposed Pad

Datasheet:: DP83822HRHBR.pdf

Description:: IC INTERFACE SPECIALIZED 32VQFN

In Stock:: 3710

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

DP83822HRHBR Specifications

Package/Case:
32-VFQFN Exposed Pad
Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
-
ProductStatus:
Active
Applications:
Ethernet
Interface:
MII, RMII
Voltage-Supply:
1.71V ~ 3.45V

DP83822HRHBR this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including DP83822HRHBR price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for DP83822HRHBR to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

DP83822HRHBR information

Views：

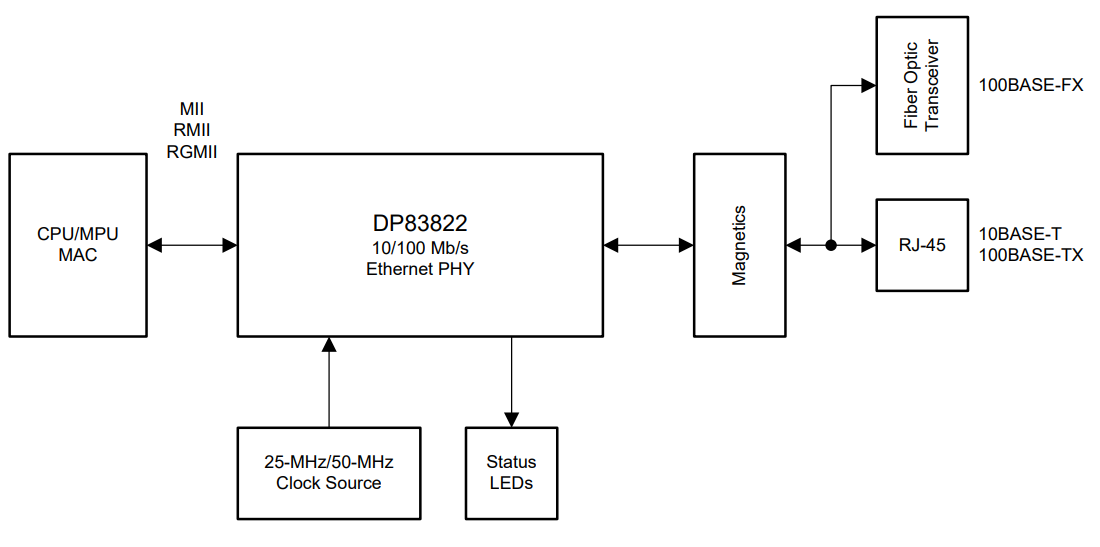

DP83822HRHBR Typical application Circuitry

The DP83822HRHBR is an Ethernet PHY transceiver from Texas Instruments. It supports 10BASE-Te, 100BASE-TX and 100BASE-FX and comes with flexible power management and comprehensive diagnostic features. Here is a typical application setup:

1. Power Supply: The DP83822HRHBR has two power supply pins, VDDIO and VDDA. VDDIO is for digital I/O power supply and typically operates at 3.3V. VDDA is for analog power supply and typically operates at 3.3V. These pins must be decoupled with suitable capacitors located as close as possible to the pins to minimize parasitic inductance and resistance.
2. MAC Interface: This chip can interface with a MAC (Media Access Control) layer device over an MII (Media Independent Interface), RMII (Reduced MII), or RGMII (Reduced Gigabit MII) bus. The appropriate bus must be selected based on the MAC device used in the system.
3. RJ-45 Connector and Magnetics: For 10BASE-T and 100BASE-TX operation, the chip must be connected to an RJ-45 connector via a suitable Ethernet magnetics module. The module provides isolation and signal conditioning.
4. LED Indicators: The DP83822HRHBR supports LED outputs to indicate link status, activity, speed, and duplex mode. These outputs can be connected to suitable LED devices.
5. Reset: The nRESET pin can be used to manually reset the device if required.
6. Clock Source: The DP83822HRHBR requires a clock source for operation. This can be provided through a crystal or oscillator.
Remember to always refer to the DP83822HRHBR datasheet and application notes for exact pin configurations, recommended component values, layout considerations, and additional features. The datasheet is the ultimate authority for designing an application circuit using this device.
