lmages are for reference only See Product Specifications

Renesas Electronics America Inc DG408DYZ-T

Part No.:: DG408DYZ-T

Manufacturer:: Renesas Electronics America Inc

Package:: 16-SOIC (0.154, 3.90mm Width)

Datasheet:: DG408DYZ-T.pdf

Description:: IC MULTIPLEXER 8X1 16SOIC

In Stock:: 2206

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

DG408DYZ-T Specifications

Package/Case:
16-SOIC (0.154, 3.90mm Width)
Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
-
ProductStatus:
Active
SwitchCircuit:
-
Multiplexer/DemultiplexerCircuit:
8:1
NumberofCircuits:
1
On-StateResistance(Max):
100Ohm
Channel-to-ChannelMatching(ΔRon):
15Ohm (Max)
Voltage-SupplySingle(V+):
5V ~ 34V
Voltage-SupplyDual(V±):
±5V ~ 20V
SwitchTime(TonToff)(Max):
150ns, 150ns
-3dbBandwidth:
-
ChargeInjection:
20pC
ChannelCapacitance(CS(off)CD(off)):
3pF, 26pF
Current-Leakage(IS(off))(Max):
500pA
Crosstalk:
-
OperatingTemperature:
-40°C ~ 85°C (TA)
MountingType:
Surface Mount

DG408DYZ-T this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including DG408DYZ-T price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for DG408DYZ-T to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

DG408DYZ-T information

Views：

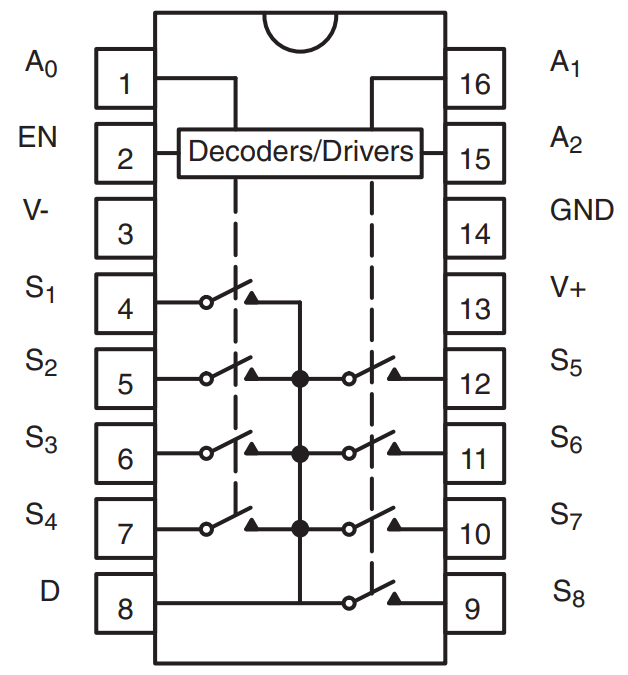

DG408DYZ-T Typical application Circuitry

DG408DYZ-T

The DG408DYZ-T is a variant within the esteemed DG408 series, designed to excel in the realm of analog signal multiplexing. This model, denoted by the "-T" suffix, typically indicates a specific packaging or temperature grade suited for a wide range of environments and applications. The DG408DYZ-T is adept at facilitating the precise management of multiple analog or digital signals within a single device, making it invaluable in fields such as telecommunications, data acquisition, and any electronic system that demands efficient, high-fidelity signal routing.

1. Hallmark Features of the DG408DYZ-T Series: The DG408DYZ-T is engineered for optimal performance, characterized by its low on-resistance and minimal charge injection, which are critical for preserving signal integrity. The device is designed for swift signal processing with minimal power dissipation, essential for maintaining efficiency in both stationary and portable applications.

2. Detailed Pin Configuration and Connectivity Overview: The DG408DYZ-T comes in a 16-pin package, with each pin designated for a specific role to ensure the device's functionality. Control signals are applied to pins 1, 5, 9, and 13, which govern the selection of active channels. The multiplexer's normally open (NO) and normally closed (NC) contacts are connected to pins 3, 7, 11, 15 and 2, 6, 10, 14 respectively, allowing for flexible signal routing options. Pin 4 serves as the common drain, and pin 8 as the common source, facilitating the flow of signals through the device. The system ground is connected to pin 12, with pin 16 linked to the voltage supply, ensuring stable operation.

3. Incorporating the DG408DYZ-T into Circuit Designs: To effectively integrate the DG408DYZ-T into an electronic circuit, it is crucial to understand the purpose of each pin and arrange them according to the circuit's requirements. The control pins need accurate connections to the logic that dictates channel switching, while the configuration of NO and NC contacts should be tailored to meet the specific demands of the signal routing within the system, ensuring proper connections to the common drain and source for optimal performance.

4. Enhancing the Performance of the DG408DYZ-T: For the DG408DYZ-T to perform at its best, attention must be paid to reducing parasitic capacitance and ensuring a consistent power supply. This entails careful circuit layout to minimize interference and adherence to the device's operational specifications to safeguard functionality.

5. Design Considerations When Using the DG408DYZ-T: Crafting a circuit with the DG408DYZ-T at its core requires a deep understanding of the device's capabilities and how they complement the overall system design. This includes thoughtful PCB layout to minimize signal path lengths and prevent interference, ensuring the DG408DYZ-T functions effectively and maintains signal integrity.

6. Applications of the DG408DYZ-T Across Various Domains: Due to its robust performance and versatility, the DG408DYZ-T is suited for a multitude of applications, ranging from complex data acquisition systems to communication networks, where its capacity for precise signal handling can be fully utilized.

In summary, the DG408DYZ-T from the DG408 series stands out for its precision in analog signal multiplexing, making it a cornerstone in the design of sophisticated electronic systems. Its successful integration requires meticulous planning around pin configurations, signal routing, and overall circuit design, ensuring that the DG408DYZ-T operates at peak efficiency in a variety of demanding applications.
