Intersil DG408DY-T

Part No.:: DG408DY-T

Manufacturer:: Intersil

Package:: 16-SOIC (0.154, 3.90mm Width)

Datasheet:: DG408DY-T.pdf

Description:: SINGLE-ENDED MUX, 8 CHANNEL

In Stock:: 3659

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

DG408DY-T Specifications

Package/Case:
16-SOIC (0.154, 3.90mm Width)
Packaging:
Bulk
Series:
-
ProductStatus:
Obsolete
SwitchCircuit:
-
Multiplexer/DemultiplexerCircuit:
8:1
NumberofCircuits:
1
On-StateResistance(Max):
100Ohm
Channel-to-ChannelMatching(ΔRon):
1.5Ohm
Voltage-SupplySingle(V+):
5V ~ 30V
Voltage-SupplyDual(V±):
±5V ~ 20V
SwitchTime(TonToff)(Max):
150ns, 150ns
-3dbBandwidth:
-
ChargeInjection:
2pC
ChannelCapacitance(CS(off)CD(off)):
3pF, 26pF
Current-Leakage(IS(off))(Max):
500pA
Crosstalk:
-92dB @ 100kHz
OperatingTemperature:
-40°C ~ 85°C (TA)
MountingType:
Surface Mount

DG408DY-T this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including DG408DY-T price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for DG408DY-T to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

DG408DY-T information

Views：

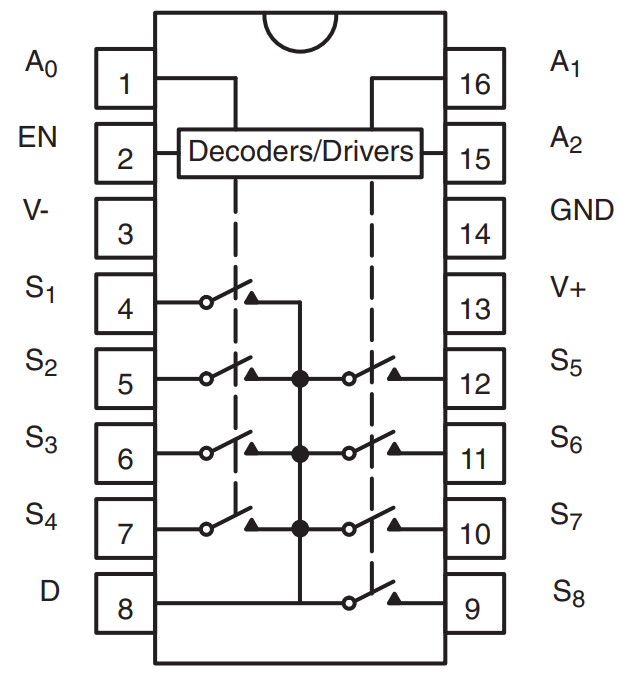

DG408DY+T Typical application Circuitry

DG408DY T

The DG408DY+T belongs to the distinguished DG408 series, characterized by its dual 4-channel analog multiplexing capability, making it an essential component for sophisticated signal routing applications. The "+T" suffix in the DG408DY+T designation often suggests a specific form factor or packaging type, tailored for seamless integration into a wide array of electronic systems. This device is especially valued for its precision in managing analog or digital signals within data acquisition systems, communication devices, and other complex electronic circuits requiring efficient signal distribution and selection.

1. Defining Features of the DG408DY+T Series: The DG408DY+T is engineered for superior performance, offering low on-resistance and high off-isolation to maintain signal fidelity. These characteristics are crucial for applications that demand accurate and noise-free signal routing. The device's design minimizes power consumption and enhances switching speed, thereby supporting both static and dynamic signal multiplexing with exceptional efficiency.

2. Pin Configuration and Connection Details: The DG408DY+T is encapsulated within a 16-pin configuration, where each pin plays a vital role in the device's functionality. The multiplexer's control signals are allocated to pins 1, 5, 9, and 13, activating the corresponding channels. Pins 2, 6, 10, and 14 are associated with the normally closed (NC) contacts, whereas pins 3, 7, 11, and 15 are linked to the normally open (NO) contacts, facilitating versatile signal routing configurations. The device's common source and drain connections are assigned to pin 8 and pin 4, respectively, with pin 12 serving as the ground and pin 16 as the positive voltage supply.

3. Incorporating the DG408DY+T into Electronic Circuits: Effective integration of the DG408DY+T into a circuit demands careful attention to the device's pinout and the intended signal paths. The control inputs must be accurately connected to the controlling logic to enable precise channel selection. The arrangement of NO and NC contacts should be carefully planned to align with the specific requirements of the signal routing, ensuring that the common connections are appropriately linked to the circuit.

4. Optimizing DG408DY+T's Operational Performance: To achieve the best performance from the DG408DY+T, it is imperative to minimize parasitic capacitances and ensure a stable power supply. This involves thoughtful PCB layout to avoid signal interference and adherence to the device's specified operational limits to maintain optimal functionality.

5. Design Considerations with the DG408DY+T: When designing with the DG408DY+T, it is crucial to account for the device's electrical specifications and the overall circuit configuration. This entails a strategic PCB design that minimizes the length of signal paths and reduces potential interference, thereby preserving the integrity of the signals routed through the DG408DY+T.

6. Utilizing the DG408DY+T across Various Applications: The DG408DY+T's adaptability makes it suitable for a wide range of applications, from intricate data acquisition systems to advanced communication networks, where reliable and precise signal management is essential.

In summary, the DG408DY+T from the DG408 series stands out as a versatile solution for analog or digital signal multiplexing, known for its low on-resistance, high-speed operation, and efficient power management. Its deployment in electronic systems requires meticulous planning around pin connections, signal routing, and circuit layout to fully leverage the DG408DY+T's capabilities, ensuring enhanced performance and reliability in various high-demand applications.
