Renesas Electronics America Inc DG406DYZ-T

Part No.:: DG406DYZ-T

Manufacturer:: Renesas Electronics America Inc

Package:: 28-SOIC (0.295, 7.50mm Width)

Datasheet:: DG406DYZ-T.pdf

Description:: IC MULTIPLEXER 16X1 28SOIC

In Stock:: 2280

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

DG406DYZ-T Specifications

Package/Case:
28-SOIC (0.295, 7.50mm Width)
Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
-
ProductStatus:
Active
SwitchCircuit:
-
Multiplexer/DemultiplexerCircuit:
16:1
NumberofCircuits:
1
On-StateResistance(Max):
100Ohm
Channel-to-ChannelMatching(ΔRon):
5Ohm
Voltage-SupplySingle(V+):
5V ~ 34V
Voltage-SupplyDual(V±):
±5V ~ 20V
SwitchTime(TonToff)(Max):
200ns, 150ns
-3dbBandwidth:
-
ChargeInjection:
40pC
ChannelCapacitance(CS(off)CD(off)):
8pF, 160pF
Current-Leakage(IS(off))(Max):
500pA
Crosstalk:
-
OperatingTemperature:
-40°C ~ 85°C (TA)
MountingType:
Surface Mount

DG406DYZ-T this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including DG406DYZ-T price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for DG406DYZ-T to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

DG406DYZ-T information

Views：

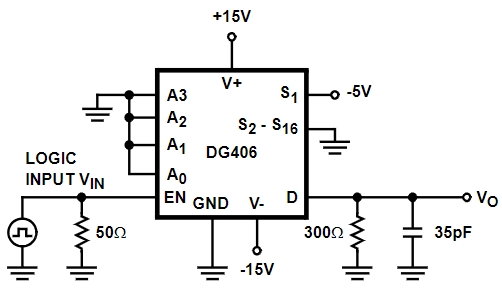

DG406DYZ-T Typical application Circuitry

DG406DYZ-T

The DG406DYZ-T is an advanced analog multiplexer/demultiplexer, integral to a variety of electronic systems where multiple analog signals need to be routed through a single pathway. It finds its utility in sophisticated applications such as precision data acquisition systems, complex audio routing setups, and multiplexed sensor networks, where the efficient handling of multiple analog signals is paramount.

Core Features and Specifications:

- Broad Channel Selection: The DG406DYZ-T offers 16 channels for multiplexing or demultiplexing analog signals, allowing for extensive signal routing flexibility.

- Enhanced Signal Integrity: Thanks to its low on-resistance, the DG406DYZ-T ensures minimal signal loss and distortion, maintaining high-quality signal transmission.

- Flexible Power Compatibility: It accommodates a wide range of power supplies, operating efficiently in both single and dual supply modes, which facilitates its integration into various circuit designs.

- Logic Level Adaptability: The device is designed to be compatible with both TTL and CMOS logic levels, simplifying its interfacing with different digital control systems.

- Secure Switching Protocol: Employing a break-before-make switching mechanism, the DG406DYZ-T prevents signal interference between channels during transitions, thus protecting signal fidelity.

Application Scenario: Multiplexed Sensor Array in Environmental Monitoring:

1. Address Selection (Address Inputs, Pins 1-4): These pins are connected to the output of a microcontroller or digital logic circuit. By setting the appropriate logic levels on these pins, the DG406DYZ-T can route one of its 16 analog inputs to the output, allowing for sequential sensor reading.

2. Sensor Inputs (Channels 0-15, Pins 5-20): Each pin is connected to a different environmental sensor (e.g., temperature, humidity, light intensity sensors). This configuration enables the collection of diverse environmental data through a single analog-to-digital converter (ADC).

3. Output to ADC (Common Out/In, Pin 21): This pin is directly connected to the input of an ADC. The selected analog signal from one of the sensors is transmitted through this pin for digital conversion, facilitating data analysis and monitoring.

4. Power Supply Configuration (V+, Pin 24; V-, Pin 11; GND, Pin 12): For optimal performance, the DG406DYZ-T should be powered with a dual supply, with V+ connected to a positive voltage (e.g., +15V) and V- to a negative voltage (e.g., -15V), and GND connected to the system's ground. This ensures that the DG406DYZ-T operates within its specified voltage range.

5. Device Enablement (Enable, Pin 22): Connecting this pin to a low logic level (ground) activates the DG406DYZ-T, allowing signal routing. Applying a high logic level (V+) deactivates the device, conserving power when not in use.

Design Considerations:

- Noise Mitigation: To preserve signal integrity, it's essential to implement noise reduction strategies, such as shielding on analog signal lines and using decoupling capacitors near the power supply pins of the DG406DYZ-T.

- Short Signal Paths: Minimizing the length of signal paths between the sensors and the DG406DYZ-T, as well as between the DG406DYZ-T and the ADC, reduces potential signal degradation and interference.

- Thermal Management: Although the DG406DYZ-T is not particularly prone to overheating, maintaining the device within its recommended temperature range ensures long-term reliability and accuracy.

- Logic Voltage Levels: Ensuring that the logic voltage levels applied to the control pins of the DG406DYZ-T are compatible with the device's specifications is crucial for correct operation.

The deployment of the DG406DYZ-T in an environmental monitoring system illustrates the chip's utility in efficiently managing multiple analog inputs. This application underscores the DG406DYZ-T's capability to enhance system performance by facilitating accurate and sequential data acquisition from a variety of sensors, demonstrating its importance in complex electronic systems requiring versatile analog signal handling.
