When working with electronic contraptions and communication systems, it's significant to induce it the contrasts between RS232 and DB9 connectors. In show disdain toward of the truth that regularly said together, RS232 can be a communication standard, though DB9 may be a sort of connector.  This article will cover the stars, cons, and key contrasts between RS232 and DB9, directing you to the proper components for your needs.

What is RS232?

RS232 (Suggested Standard 232) can be a communication convention built up by the Electronic Businesses Union (EIA). This convention was portrayed out for serial communication between computers and fringe contraptions such as modems, printers, and other equipment. It characterizes the electrical and signaling characteristics for serial communication, counting voltage levels, information exchange rates, and control signals.

How RS232 Works

RS232 works as a serial communication convention, transmitting information one bit at a time over a single wire. The protocol represents binary data using voltage levels: a positive voltage signals "0,", while a negative voltage signals "1". Communication typically occurs between devices like a computer (DTE) and a modem (DCE). Handshaking signals manage the flow of information and ensure proper synchronization between the devices.
RS232 moreover employments particular pins for transmitting (TX) and getting (RX) information, nearby other control signals like Information Terminal Prepared (DTR) and Clear to Send (CTS). These pins are mapped to a connector, commonly the DB9, to physically establish the connection between devices.

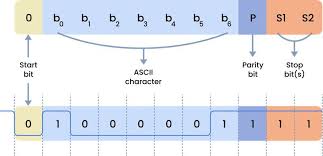

RS232 Protocol

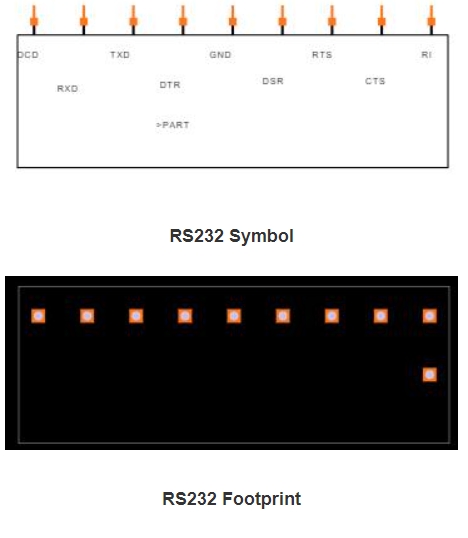

RS232 3D Model

RS232: Key Advantages and Disadvantages

Advantages of RS232:

Effortlessness: This serial communication standard is basic to get it and apply, which is why it has been a go-to choice over different businesses for numerous a long time.
Cost-Effective: With its long history, components and cables for this protocol are affordable and widely available.
Reliable in Many Industries: Despite its age, this method of communication remains a dependable option in numerous industrial applications.

Disadvantages of RS232:

Ease of Use: The maximum speed of 115.2 kbps is much slower than modern alternatives like USB or Ethernet.
Cost-Effective: This communication convention can as it were transmit information over brief separations, regularly up to 50 feet, which may be deficiently for bigger setups.
Touchy to Impedances: Since RS232 employments single-ended signaling, it is more inclined to electrical clamor, which can meddle with information transmission.

What is a DB9 Connector?

The DB9 connector is a 9-pin connector commonly utilized for RS232 serial communication. Its "D" shape guarantees that it can as it were be associated in one introduction, avoiding erroneous associations. The "9" in DB9 shows the number of pins on the connector, each serving a particular work inside the RS232 standard.

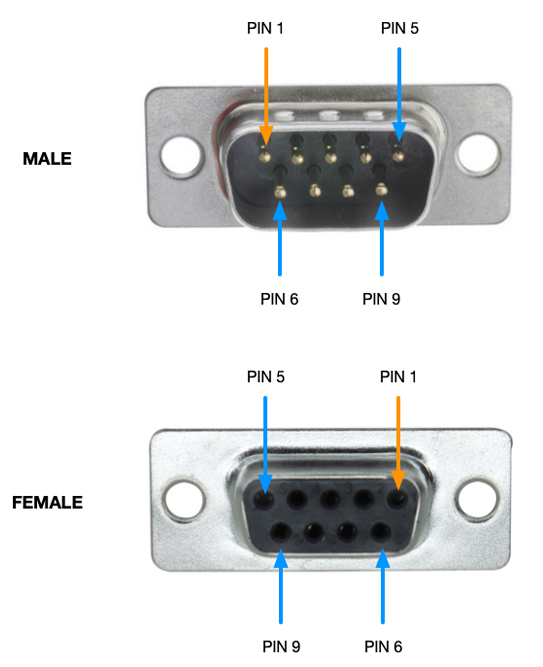

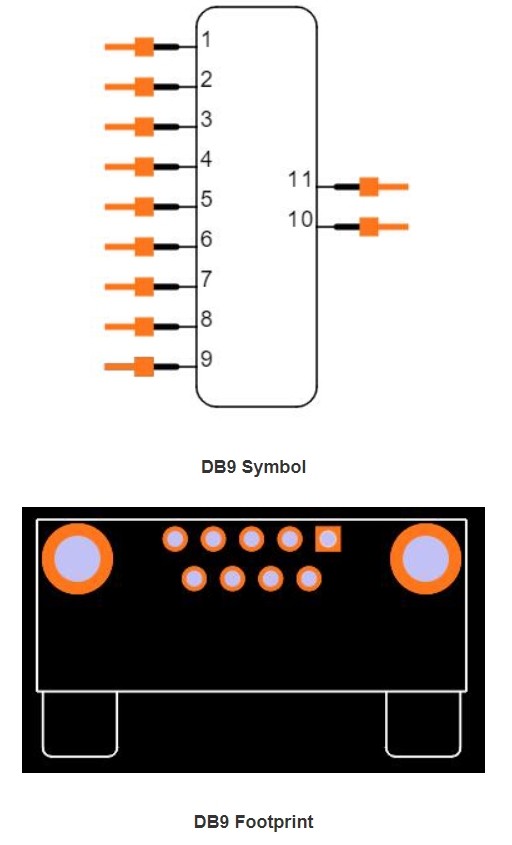

DB9 3D Model

Where are DB9 Connectors Used?

DB9 connectors are found in an assortment of applications, especially in more seasoned computer frameworks, mechanical gear, and specialized gadgets. These connectors were once common for interfacing mice, modems, and serial printers to PCs. Nowadays, they are regularly utilized in mechanical settings to interface with programmable rationale controllers (PLCs), information procurement frameworks, and bequest hardware where dependable and clear communication is required.

DB9: Key Advantages and Disadvantages

Advantages of DB9 Connector:

Compact Measure: The db 9 connecgtor is little and space-efficient, making it perfect for gadgets with restricted space.
Secure Association: The screws on either side of the DB9 connector guarantee a secure and steady association, anticipating inadvertent detachments.
Versatile Application: This connector sort is utilized in different applications, counting mechanical hardware, organizing gadgets, and more seasoned computer frameworks.

Disadvantages of DB9 Connector:

Limited Pin Count: With only 9 pins, this connector may not support more complex communication protocols that require additional connections.
Outdated Style: The design is becoming less common in modern devices, which could make it difficult to find compatible hardware.
Bulkier than Alternatives: Although compact, this connector is still bulkier compared to modern alternatives like USB connectors.

Key Differences Between RS232 and DB9

1. Purpose and Functionality:

The essential distinction between these two lies in their parts. The serial communication convention (RS232) characterizes how information is transmitted between gadgets, whereas the 9-pin connector (DB9) is the physical interface that empowers this association. In straightforward terms, the convention oversees the "how" of communication, and the connector gives the implies to set up it.

2. Compatibility:

Although the serial communication standard can work with various types of connectors, including DB25 and DB9, the latter is specifically designed for this protocol. However, not all devices using the serial standard require a 9-pin connector. For instance, some modern devices may use a USB-to-serial adapter that does not involve the older 9-pin interface.

3. Pin Configuration:

The stick arrangement of the DB9 connector is custom-made to the RS232 convention. The nine pins incorporate transmit (TX), get (RX), ground (GND), and control signals such as Information Terminal Prepared (DTR) and Information Set Prepared (DSR). Understanding the db9 pinout is fundamental for accurately wiring the association and guaranteeing solid communication.

4. Application Scope:

While the serial convention is broadly utilized over different businesses, the 9-pin connector is more commonly related with more seasoned computer frameworks, mechanical apparatus, and specialized gadgets. As innovation propels, the utilize of this communication standard remains predominant in specialty applications, but the 9-pin connectors are continuously being supplanted by more advanced interfaces.

5. Electrical Characteristics:

The serial protocol operates using specific voltage levels, typically ranging from -12V to +12V for signaling. The 9-pin connector must support these voltage levels to maintain a stable and functional connection. This combination remains effective for certain industrial and legacy systems where robust and straightforward communication is essential.

Understanding the Compatibility of RS232 and DB9

When discussing what protocol with db 9 connector is most suitable, it's important to note that DB9 is primarily associated with RS232. However, not all devices using this serial communication protocol rely on the 9-pin interface. Some may require different connectors, like DB25, depending on specific application needs. Therefore, it's crucial to understand the particular pin configuration and connector type your device requires when working with this protocol.

Modern Alternatives to RS232 and DB9

Whereas RS232 and DB9 have served the industry well for decades, cutting edge choices are presently accessible, advertising made strides execution, higher information exchange rates, and more compact plans.
- USB (Universal Serial Bus): USB has generally supplanted conventional serial communication in customer hardware due to its higher speed, plug-and-play comfort, and far reaching utilize. Not at all like more seasoned strategies, USB connectors are smaller and can supply control to associated gadgets.
- Ethernet: For organizing and information exchange, Ethernet gives higher speeds, more noteworthy unwavering quality, and longer transmission separations. It is now commonly used in modern industrial automation, replacing older serial-based systems.
- Bluetooth and Wireless Communication: For applications requiring wireless data transmission, Bluetooth, Wi-Fi, and other wireless protocols offer flexibility and eliminate the need for physical connectors like DB9.
Despite these modern alternatives, the original serial protocol and its 9-pin counterpart remain in use for specialized applications where simplicity and reliability are key. Industrial machinery, scientific instruments, and older computing systems still depend on this combination for essential communication tasks.

Practical Applications of RS232 and DB9

In industrial settings, the combination of the serial communication standard and the 9-pin connector is often employed to connect programmable logic controllers (PLCs), data acquisition systems, and legacy machinery. Their continued use highlights their dependability in environments where modern or wireless alternatives may not perform as reliably.
In the computing world, this pairing was once standard for connecting peripherals like mice, modems, and printers. Although many of these roles have shifted to USB, certain specialized equipment still relies on this serial method for effective communication.
Understanding the rs232 db9 pinout is critical when working with these systems, as incorrect wiring can lead to communication failures or even damage to the devices involved.

Conclusion

The serial convention and the 9-pin connector have played a critical part within the improvement of communication advances.  Despite the emergence of newer alternatives, the simplicity, reliability, and established presence of this combination ensure its continued relevance in specific applications. When choosing between this traditional approach and modern options, consider your project's specific needs, such as speed, distance, and overall compatibility.
As the industry continues to evolve, RS232 and DB9 will likely remain relevant for certain niche applications, especially where reliability and simplicity are paramount. However, for new designs, exploring modern communication standards that offer better performance and flexibility is wise.

---

---

Common Queries Answered

Can I use a USB-to-DB9 adapter for RS232 communication?

Yes, you'll be able utilize a USB-to-DB9 connector to empower RS232 communication on advanced computers that need serial ports. These connectors change over USB signals to RS232 signals, permitting gadgets with DB9 connectors to communicate with more up to date frameworks. In any case, compatibility and driver bolster may shift depending on the working framework and hardware.

What are the limitations of using RS232 for modern applications?

RS232 features a few limitations for present-day applications, counting its direct data trade rate (up to 115.2 kbps), confined cable length (commonly up to 50 feet), and defenselessness to electrical obstructions.These limitations make RS232 less sensible for high-speed or long-distance communication compared to progressed choices like USB, Ethernet, or inaccessible conventions.

How do I know if my device uses RS232 or another protocol with a DB9 connector?

To decide on the off chance that your gadget employments RS232 or another convention with a DB9 connector, you ought to counsel the device's manual or specialized details. While RS232 is a common use case for DB9 connectors, they can also be used for other protocols such as RS422, RS485, or indeed non-serial communication measures. Understanding the pinout and signal requirements is essential for proper connection.
