Cypress Semiconductor Corp CYPD2122-20FNXIT

Part No.:: CYPD2122-20FNXIT

Manufacturer:: Cypress Semiconductor Corp

Package:

Datasheet:: CYPD2122-20FNXIT.pdf

Description:: IC MCU 32BIT 32KB FLASH 20WLCSP

In Stock:: 15975

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

CYPD2122-20FNXIT Specifications

Package/Case:
Packaging:
Tape & Reel (TR),Tape & Reel (TR),Cut Tape (CT)
Series:
EZ-PD™ CCG2
ProductStatus:
Active
Applications:
USB Type C
CoreProcessor:
ARM® Cortex®-M0
ProgramMemoryType:
FLASH (32KB)
ControllerSeries:
-
RAMSize:
4K x 8
Interface:
I²C, SPI, UART/USART, USB
NumberofI/O:
9
Voltage-Supply:
1.71V ~ 5.5V
OperatingTemperature:
-40°C ~ 85°C (TA)
MountingType:
Surface Mount

CYPD2122-20FNXIT this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including CYPD2122-20FNXIT price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for CYPD2122-20FNXIT to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

CYPD2122-20FNXIT information

Views：

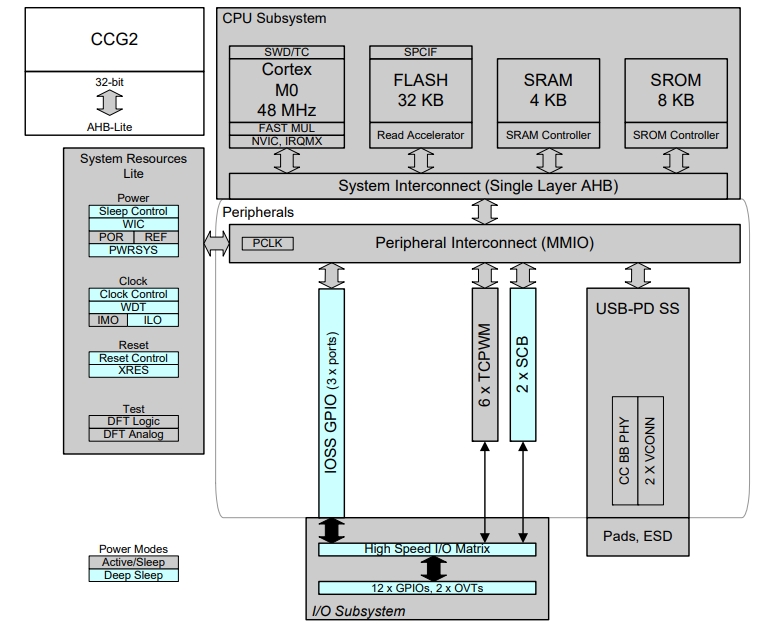

CYPD2122-20FNXIT Typical application Circuitry

CYPD2122-20FNXIT

The CYPD2122-20FNXIT is a USB Type-C and Power Delivery (PD) controller chip designed by Cypress Semiconductor, now a part of Infineon Technologies. This chip is engineered to facilitate the management of USB Type-C connectors and the negotiation and delivery of power through the USB PD protocol. It is commonly employed in devices such as USB-C power banks, docking stations, and other peripherals that require USB Type-C and PD capabilities.

Applications: The CYPD2122-20FNXIT is suitable for use in USB-C power banks, docking stations, and other devices that need to manage power delivery and data communication over USB Type-C.

Key Parameters:

1. USB Type-C and PD Support: The chip supports USB Type-C and USB Power Delivery protocols, enabling it to manage power delivery and data communication.

2. Programmability: It is a programmable chip, allowing for firmware customization to fit specific application needs.

3. Integrated Voltage Regulators: The chip includes integrated voltage regulators for efficient power management.

4. I2C Interface: Provides an I2C interface for communication with a host controller or other peripherals.

Example Application - USB-C Power Bank:

In a USB-C power bank application, the CYPD2122-20FNXIT can be used to manage the power delivery negotiation and control the charging process. Here's a detailed circuit connection guide:

1. Power Supply Connection: Connect the VDD pin of the CYPD2122-20FNXIT to a 3.3V power source to power the internal circuits of the chip.

2. Configuration Channel Lines: Connect the CC1 and CC2 pins to the Configuration Channel lines of the USB-C connector for USB-PD communication and cable orientation detection.

3. VBUS Monitoring: Attach a voltage divider from the VBUS line of the USB-C connector to the VBUS_DET pin of the chip for monitoring the voltage on VBUS.

4. I2C Communication: Link the SCL and SDA pins to the I2C clock and data lines of a microcontroller or host controller for firmware updates and communication.

5. General-Purpose Input/Output (GPIO): Utilize the GPIO pins for additional functionalities such as controlling LEDs to indicate charging status or power levels.

6. Firmware Programming: For programming the chip, connect the SWDIO (Serial Wire Debug Data Input/Output) and SWCLK (Serial Wire Debug Clock) pins to a programming interface.

Design Considerations:

1. Power Capacity: Ensure that the power bank has adequate capacity and supports the desired power profiles for charging various devices.

2. Thermal Management: Implement proper thermal management strategies to dissipate heat generated during charging and discharging processes.

3. Safety Features: Incorporate safety mechanisms such as overvoltage, overcurrent, and short-circuit protection to ensure the safety of the power bank and connected devices.

4. Firmware Customization: Customize the firmware of the CYPD2122-20FNXIT to optimize the charging algorithms and communication protocols for the specific application.

5. User Interface: Consider adding user-friendly features such as LED indicators or a display to show charging status and battery levels.

By carefully considering these aspects and integrating the CYPD2122-20FNXIT into the design, the USB-C power bank can effectively manage power delivery and provide a convenient charging solution for USB-C-enabled devices.
