Cypress Semiconductor Corp CY7C65630-56LTXC

Part No.:: CY7C65630-56LTXC

Manufacturer:: Cypress Semiconductor Corp

Package:: 56-VFQFN Exposed Pad

Datasheet:: CY7C65630-56LTXC.pdf

Description:: IC USB HUB CTLR 4PORT 56VQFN

In Stock:: 3560

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

CY7C65630-56LTXC Specifications

Package/Case:
56-VFQFN Exposed Pad
Packaging:
Bulk,Tray
Series:
EZ-USB HX2LP™
ProductStatus:
Active
Protocol:
USB
Function:
Hub Controller
Interface:
USB
Standards:
USB 2.0
Voltage-Supply:
3.15V ~ 3.45V
Current-Supply:
-
OperatingTemperature:
0°C ~ 70°C

CY7C65630-56LTXC this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including CY7C65630-56LTXC price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for CY7C65630-56LTXC to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

CY7C65630-56LTXC information

Views：

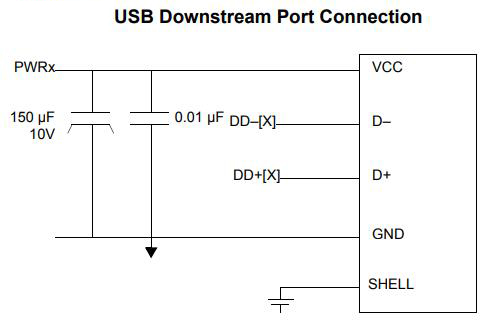

CY7C65630-56LTXC Typical application Circuitry

CY7C65630-56LTXC

An integrated circuit (IC) made by Cypress Semiconductor is called the CY7C65630-56LTXC, which is a USB Hub Controller. This IC is part of the TetraHub series that offers low-power, high-performance solutions for the communication and networking industry.

1. Functionality: The CY7C65630-56LTXC is designed to provide multiple downstream USB ports from a single upstream host. It supports USB 2.0 with data transfer rates up to 480 Mbps and can manage up to four downstream ports.

2. Application Scenarios: This IC is commonly used in applications where USB expansion is necessary. It is found in devices such as desktop or laptop computers, docking stations, monitors, digital televisions, and other consumer electronics that require multiple USB connections.

3. Parameter Characteristics: The CY7C65630-56LTXC operates with a supply voltage of 3.3V and has an industrial temperature range from -40°C to 85°C. It supports hot-plug insertion and removal of devices, and it features individual port power control and over-current sensing. The IC is packaged in a 56-pin QFN.

Let's now consider a simple application of creating a 4-port USB hub using the CY7C65630-56LTXC:

1. Power Supply Connections: Connect VBUS (Pin 30) to a 5V power source for the USB interface, and VDDD (Pin 49), VDDA (Pin 39), and VDD (Pin 35) to a 3.3V power source for the IC. Connect GND (Pins 1, 2, 3, 4, 33, 34, 46, 47, and 48) to the ground of your system.

2. Upstream USB Connection: Connect USBDP (Pin 32) and USBDM (Pin 31) to the D+ and D- lines, respectively, of the upstream USB host connector.

3. Downstream USB Connections: For each of the four downstream ports, connect DP (Pins 6, 10, 18, and 23) and DM (Pins 7, 11, 19, and 24) to the D+ and D- lines, respectively, of the downstream USB connectors.

4. Oscillator Circuit: Connect an external 24 MHz crystal between XTALIN (Pin 37) and XTALOUT (Pin 38) to provide the clock source for the IC.

Consider these factors when constructing the circuit:

1. Reducing Noise from the Power Supply: To reduce power supply noise, place decoupling capacitors close to the VDD and VDDD pins.

2. USB Signal Integrity: Maintain the impedance of the USB signal lines and keep the lines as short as possible to prevent signal degradation.

3. Overcurrent Protection: Each downstream port has an overcurrent input (OC0, OC1, OC2, and OC3 on Pins 8, 12, 20, and 25, respectively) which can be used to detect overcurrent conditions on the downstream ports.

4. Hot Plug Support: The IC supports hot-plugging of USB devices. Ensure that the power supply can handle current surges when devices are plugged in.

Please refer to the specific datasheet of CY7C65630-56LTXC for detailed information and typical application circuits. Make sure to validate your design with appropriate simulations and prototyping.
