Texas Instruments CSD95480RWJT

Part No.:: CSD95480RWJT

Manufacturer:: Texas Instruments

Package:: 41-PowerTFQFN

Datasheet:: CSD95480RWJT.pdf

Description:: POWERSTAGE

In Stock:: 3533

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

CSD95480RWJT Specifications

Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
NexFET™
ProductStatus:
Active
OutputConfiguration:
Half Bridge
Applications:
Synchronous Buck Converters
Interface:
PWM
LoadType:
Inductive, Capacitive
Technology:
Power MOSFET
RdsOn(Typ):
-
Current-Output/Channel:
70A
Current-PeakOutput:
90A
Voltage-Supply:
4.5V ~ 5.5V
Voltage-Load:
4.5V ~ 16V
OperatingTemperature:
-40°C ~ 125°C (TJ)
Features:
Bootstrap Circuit
FaultProtection:
Shoot-Through
MountingType:
Surface Mount

CSD95480RWJT this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including CSD95480RWJT price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for CSD95480RWJT to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

CSD95480RWJT information

Views：

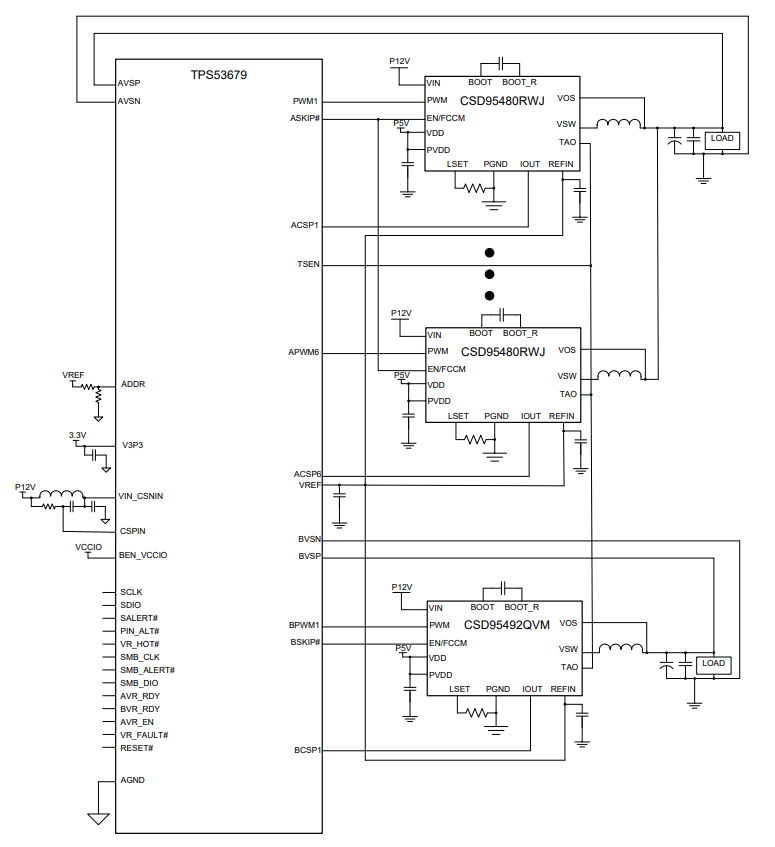

CSD95480RWJT Typical application Circuitry

CSD95480RWJT

The CSD95480RWJT is a sophisticated component from Texas Instruments' NexFET™ Power Block series, specifically engineered for high-efficiency, synchronous buck power stages. This series stands out for its integration of high-performance MOSFETs and driver circuitry within a single package, optimizing it for dense power supply designs often found in computing, server, and telecommunications applications. The NexFET™ technology is acclaimed for its ability to deliver superior power density, efficiency, and thermal performance, making the CSD95480RWJT a prime choice for applications demanding high current capabilities and compact footprints.

1. Principal Attributes of the CSD95480RWJT Series: The CSD95480RWJT is designed to offer an all-in-one power conversion solution, featuring integrated high- and low-side MOSFETs along with a driver circuit. This integration facilitates significant board space savings while enhancing power efficiency and thermal management. The device is capable of handling high current levels, making it well-suited for CPU core power supplies, DDR memory power, and other critical power systems requiring efficient and reliable operation.

2. Pin Configuration and Systematic Connectivity Guide: The CSD95480RWJT is presented in a 25-pin, thermally enhanced package optimized for efficient heat dissipation. Key pin groups include the SW (Switch Node) pins, which connect to the power stage's output inductor, facilitating the flow of high-frequency switching currents. PGND (Power Ground) and PVIN (Power VIN) pins are essential for grounding and powering the internal circuitry, respectively. The device also features pins for driver operation and high-side gate driving, such as VDRV (Drive Voltage) and BST (Bootstrap), alongside RTN (Return) for completing the circuit. Control and feedback functionalities are managed through pins like PWM (Pulse Width Modulation) for switching control, EN (Enable) for device operation, and PGOOD (Power Good) for output status indication.

3. Effective Deployment in Circuit Designs: Integrating the CSD95480RWJT into a power supply design entails connecting the SW pins to the output inductor and capacitor network, forming the central power conversion pathway. The PGND pins should have a robust connection to the system's ground plane, while the PVIN pins connect to the input power source, supported by appropriate decoupling capacitors to ensure stability. The VDRV and BST pins require careful configuration to support the internal driver, with the BST pin typically connected to a bootstrap capacitor for high-side driving. The PWM input pin governs the switching operation, and the EN pin controls the device's operational state. The PGOOD pin offers a convenient way to monitor the output's health.

4. Optimizing CSD95480RWJT Performance: Maximizing the performance of the CSD95480RWJT involves minimizing parasitic inductances in the switching paths, employing low-ESR capacitors for effective decoupling, and ensuring robust thermal management to dissipate heat generated during operation. PCB design should prioritize short, wide traces for critical power connections and maintain a solid ground plane for enhanced electrical and thermal performance.

5. System Design Considerations with the CSD95480RWJT: Designing with the CSD95480RWJT requires attention to the overall power stage layout, including the optimization of gate drives and careful management of thermal dissipation. Incorporating control and monitoring signals, such as the PGOOD output, into the system design is crucial for achieving reliable and efficient operation.

6. Utilizing the CSD95480RWJT in Applications: The compact design and high efficiency of the CSD95480RWJT make it ideal for a wide range of applications, particularly in server and telecom power supplies, high-performance computing, and other scenarios where space is at a premium, and power efficiency is critical.

In summary, the CSD95480RWJT from Texas Instruments' NexFET™ Power Block series represents a cutting-edge solution for synchronous buck power stages, offering high efficiency, advanced integration, and superior thermal performance. Its implementation in electronic systems requires meticulous planning around pin configurations, power layout, and thermal management to ensure that the CSD95480RWJT meets the high standards of modern power supply designs.
