Cirrus Logic Inc. CS8422-CNZR

Part No.:: CS8422-CNZR

Manufacturer:: Cirrus Logic Inc.

Package:: 32-VFQFN Exposed Pad

Datasheet:: CS8422-CNZR.pdf

Description:: IC SAMPL RATE CONV AUD REC 32QFN

In Stock:: 2066

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

CS8422-CNZR Specifications

Package/Case:
32-VFQFN Exposed Pad
Packaging:
Tape & Reel (TR)
Series:
-
ProductStatus:
Active
Function:
Sample Rate Converter, Audio Receiver
Applications:
Digital Audio Interfacing
NumberofChannels:
2
Interface:
I²C, SPI
Voltage-Supply:
3.135V ~ 3.465V
OperatingTemperature:
-40°C ~ 85°C (TA)
Specifications:
53kHz ~ 211kHz
MountingType:
Surface Mount

CS8422-CNZR this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including CS8422-CNZR price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for CS8422-CNZR to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

CS8422-CNZR information

Views：

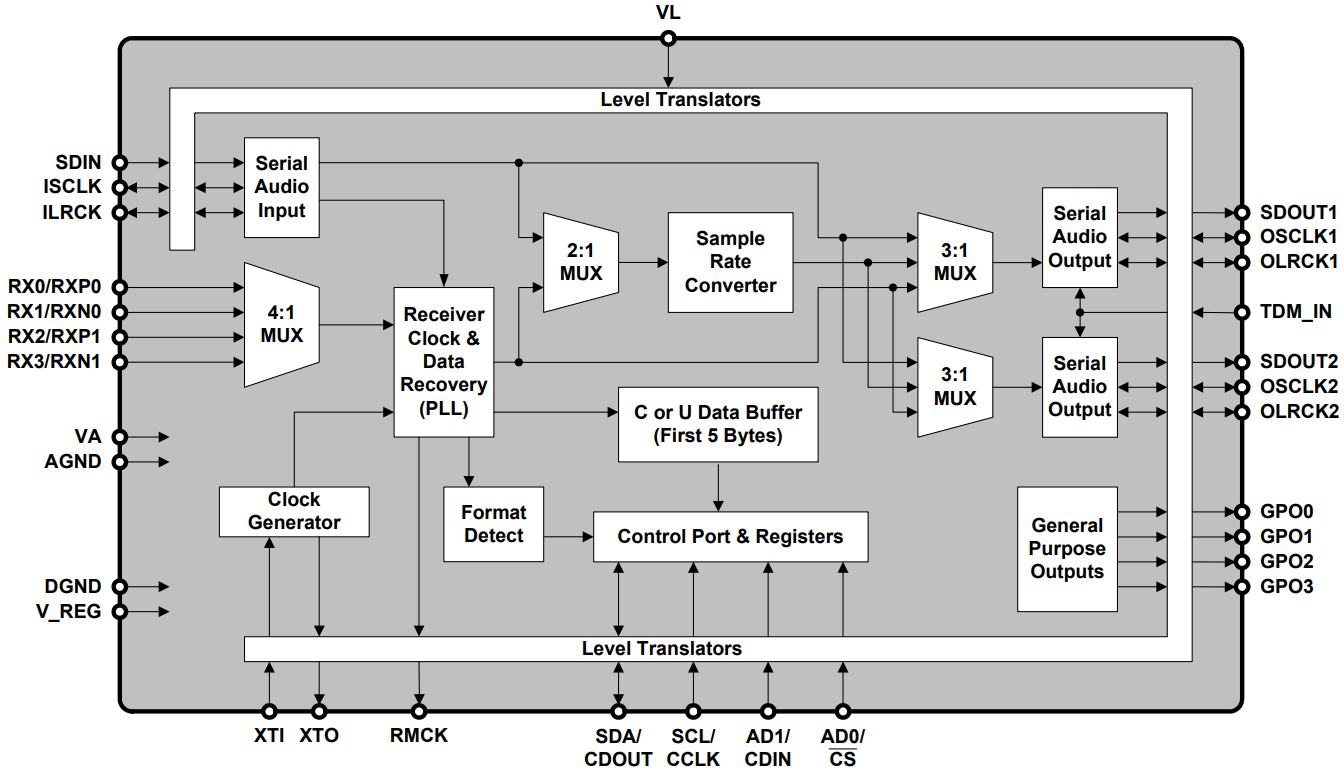

CS8422-CNZR Typical application Circuitry

CS8422-CNZR

The CS8422-CNZR is a notable model from the CS8422 series, a line of advanced digital audio transceivers known for their high-quality audio signal processing capabilities. This series is particularly designed for professional and consumer audio applications, where it is used for audio data conversion and transmission. The CS8422-CNZR excels in providing seamless format conversion, sample rate conversion, and jitter reduction, making it a preferred choice for high-fidelity audio systems, digital mixing consoles, and other sophisticated audio processing equipment.

1. Audio Data Input/Output Pins (SDIN, SDOUT): The CS8422-CNZR features serial data input (SDIN) and output (SDOUT) pins. SDIN is used for receiving digital audio data, which can be connected to a digital audio source like a DSP. SDOUT is used to transfer processed audio data to other audio system components.

2. Serial Clock Pins (SCLK, LRCK, MCLK): These pins are crucial for audio data synchronization. SCLK (Serial Clock) is used for serial bit clocking, LRCK (Left Right Clock) for frame synchronization, and MCLK (Master Clock) for system clocking. Connect these to corresponding clock outputs of the audio source and destination.

3. Digital Interface Format Pin (FORMAT): The FORMAT pin determines the digital audio interface format. This pin can be hardwired to a specific logic level to select the required format (I2S, AES3, etc.).

4. Control Interface Pins (CIF_SDA, CIF_SCL): The CS8422-CNZR supports I2C control interface, with CIF_SDA and CIF_SCL serving as the data and clock lines. Connect these to the I2C bus of a microcontroller for configuring the chip settings.

5. Reset Pin (RST): To reset the chip, use the RST pin. It can be connected to a microcontroller or a manual reset circuit.

6. Power Supply Pins (VDD, GND): Connect the VDD pin to a clean and stable power source (typically 3.3V or 5V as per the chip specification), and the GND pin to the system's ground. Proper power supply and grounding are essential for the chip's optimal performance.

7. Decoupling Capacitors: Decoupling capacitors should be placed near the VDD pin to filter out power supply noise. This contributes to the audio signal's integrity.

8. PCB Layout Considerations: The PCB design should focus on minimizing noise and interference, especially in the signal paths. Keep the digital and analog sections separate and use short, direct traces for the audio and clock lines.

In summary, the CS8422-CNZR from the CS8422 series is designed for high-quality audio signal processing, including format conversion and sample rate conversion. Effective implementation involves connections for audio data input/output, clock synchronization, digital interface format selection, control interface, chip resetting, power supply, along with the strategic placement of decoupling capacitors and a well-thought-out PCB layout to ensure high fidelity in audio applications.
