Cirrus Logic Inc. CS5361-KZZR

Part No.:: CS5361-KZZR

Manufacturer:: Cirrus Logic Inc.

Package:: 24-TSSOP (0.173, 4.40mm Width)

Datasheet:: CS5361-KZZR.pdf

Description:: IC ADC/AUDIO 24BIT 192K 24TSSOP

In Stock:: 3157

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

CS5361-KZZR Specifications

Package/Case:
24-TSSOP (0.173, 4.40mm Width)
Packaging:
Tape & Reel (TR)
Series:
-
ProductStatus:
Obsolete
Type:
ADC, Audio
NumberofChannels:
2
Resolution(Bits):
24 b
SamplingRate(PerSecond):
192k
DataInterface:
Serial
VoltageSupplySource:
Analog and Digital
Voltage-Supply:
3.3V, 5V
OperatingTemperature:
-10°C ~ 70°C
MountingType:
Surface Mount

CS5361-KZZR this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including CS5361-KZZR price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for CS5361-KZZR to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

CS5361-KZZR information

Views：

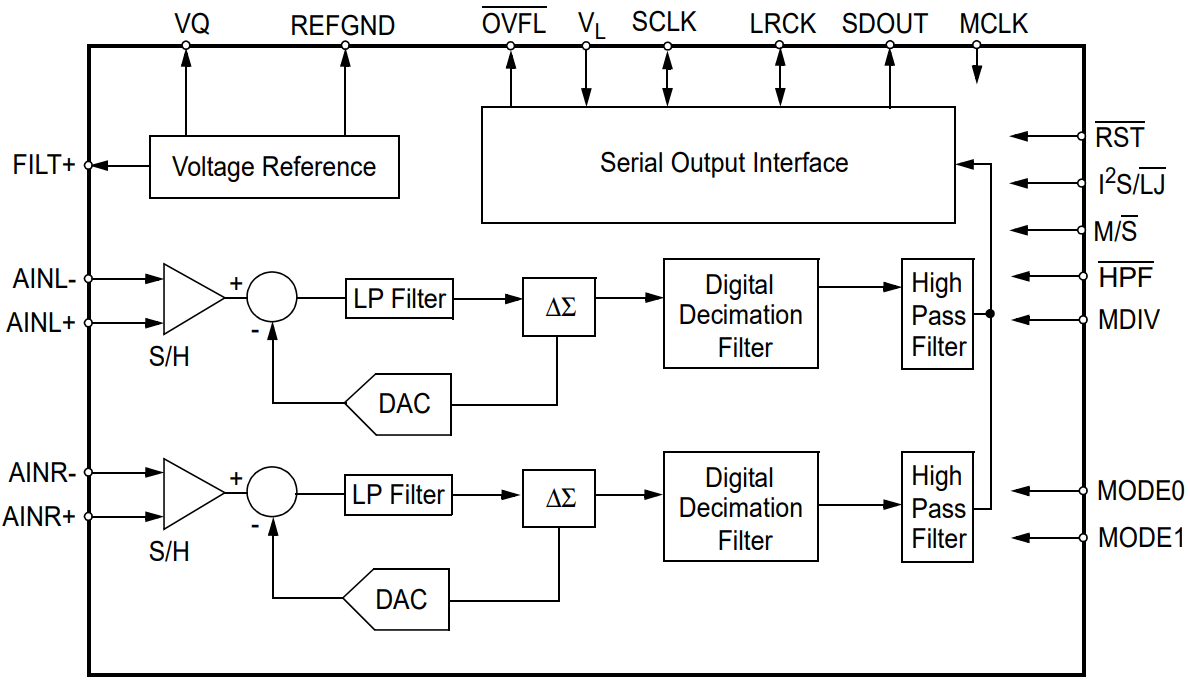

CS5361-KZZR Typical application Circuitry

CS5361-KZZR

The CS5361-KZZR is an integral part of the CS5361 series, a lineup of high-performance audio analog-to-digital converters (ADCs) known for their exceptional sound quality and precision. These ADCs are commonly used in professional audio recording, mixing consoles, and digital audio effects processors. The CS5361-KZZR is characterized by its high dynamic range, low noise levels, and support for various sampling rates, making it an excellent choice for critical audio applications where fidelity and accuracy are paramount.

1. Analog Input Pins (AIN+ and AIN−): The CS5361-KZZR features differential analog input pins, AIN+ and AIN−, for left and right audio channels. Connect these pins to the output of your analog audio source, ensuring proper signal conditioning for noise reduction and impedance matching.

2. Digital Output Pin (DOUT): The DOUT pin is the serial digital audio output of the CS5361-KZZR. This pin should be linked to your audio processor's or microcontroller's digital input.

3. Serial Clock Pins (LRCK and SCLK): LRCK (Left Right Clock) and SCLK (Serial Clock) are critical for synchronizing the digital audio output. Connect LRCK to the word clock and SCLK to the bit clock of your digital audio system.

4. Master Clock Pin (MCLK): The MCLK pin is for the master clock input, which determines the sampling rate of the ADC. Connect this pin to a stable clock source with a frequency that is compatible with your desired audio sampling rate.

5. Power Supply Pins (VD+, VD−, VA+, VA−): The CS5361-KZZR requires separate power supplies for its digital (VD+ and VD−) and analog (VA+ and VA−) sections. Connect these pins to regulated power sources as per the specifications in the datasheet, ensuring minimal noise and stable operation.

6. Digital Ground (DGND) and Analog Ground (AGND) Pins: Connect DGND and AGND to their respective ground planes. Careful attention should be given to minimizing the noise between these grounds to prevent interference in the audio signal.

7. Control Interface Pins (Format, M/S, TDM): These pins are used to configure the operational modes, such as output data format, master/slave mode, and time-division multiplexing (TDM) settings. Depending on your system requirements, these pins can be hard-wired to specific logic levels or controlled via a microcontroller.

8. Decoupling Capacitors: Place decoupling capacitors close to the power supply pins for both the analog and digital sections to filter out noise and stabilize the supply voltages.

9. PCB Layout Considerations: Design the PCB to segregate the digital and analog sections, reducing the chance of digital noise infiltrating the analog path. Use short, direct traces for critical signal paths and ensure proper shielding and grounding for optimum performance.

In summary, the CS5361-KZZR from the CS5361 series is a high-quality audio ADC designed for precise and accurate conversion of analog audio signals to digital format. Effective implementation involves meticulous connections for analog inputs, digital outputs, clock synchronization, power supplies, and control interfaces, complemented by the strategic placement of decoupling capacitors and thoughtful PCB layout to preserve audio integrity and minimize interference.
