Silicon Labs CP2105-F01-GM

Part No.:: CP2105-F01-GM

Manufacturer:: Silicon Labs

Package:: 24-WFQFN Exposed Pad

Datasheet:: CP2105-F01-GM.pdf

Description:: IC SGL USB-DL UART BRIDGE 24QFN

In Stock:: 2721

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

CP2105-F01-GM Specifications

Package/Case:
24-WFQFN Exposed Pad
Packaging:
Tube
Series:
-
ProductStatus:
Active
Protocol:
USB
Function:
Bridge, USB to UART
Interface:
UART
Standards:
USB 2.0
Voltage-Supply:
1.8V, 3V ~ 3.6V
Current-Supply:
17mA
OperatingTemperature:
-40°C ~ 85°C

CP2105-F01-GM this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including CP2105-F01-GM price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for CP2105-F01-GM to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

CP2105-F01-GM information

Views：

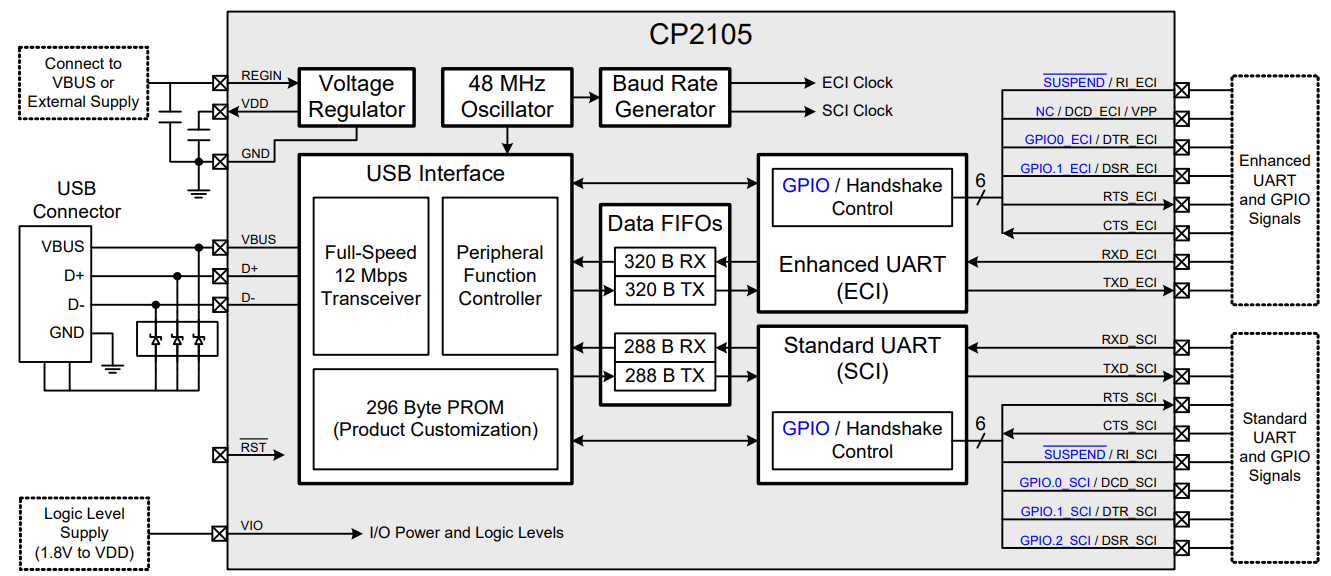

CP2105-F01-GM Typical application Circuitry

CP2105-F01-GM

The CP2105-F01-GM is a part of Silicon Labs' CP210x family, a highly renowned series of USB to UART bridge devices designed to facilitate seamless and efficient USB connectivity for a wide range of applications. The CP2105-F01-GM, in particular, stands out for its dual UART interfaces, enabling it to serve as a bridge for two distinct serial ports over a single USB connection. This feature makes it exceptionally useful for applications requiring serial communication with multiple peripherals, such as industrial controls, medical devices, and complex consumer electronics.

1. Distinctive Elements of the CP2105-F01-GM Series: The CP2105-F01-GM is characterized by its ability to provide two full-duplex UART interfaces, making it a versatile solution for expanding USB connectivity. Its integrated USB 2.0 full-speed function controller, USB transceiver, and oscillator significantly simplify system design by reducing the number of external components required. Furthermore, the CP2105-F01-GM supports a variety of data formats and baud rates, enhancing its adaptability to different communication protocols.

2. Pin Layout and Connection Scheme: The CP2105-F01-GM is encapsulated in a compact QFN-24 package, offering a strategic pin arrangement that optimizes board space and simplifies circuit integration. Key connections include the USB D+ and D- lines on pins 5 and 4 respectively, which connect to the USB host. UART signals for the first UART interface are accessible through pins 6 (TXD), 7 (RXD), with additional handshake signals on pins 8 (RTS) and 9 (CTS). The second UART interface offers similar connectivity with TXD and RXD on pins 21 and 22, and handshake signals on pins 23 (RTS) and 24 (CTS). The device also includes pins for supply voltage (VIO and VDD) on pins 1 and 3, ground connections (GND) on multiple pins for stability, and a RESET pin on pin 2 for system resets.

3. Effective Integration of the CP2105-F01-GM: To successfully incorporate the CP2105-F01-GM into a design, ensure that the USB data lines are correctly connected to a USB host with appropriate impedance matching. The UART interfaces should be connected to the respective serial devices, paying close attention to the TXD and RXD connections to ensure proper communication flow. Implementing the handshake lines (RTS/CTS) can further enhance communication reliability, especially in applications requiring flow control.

4. Maximizing the Utility of the CP2105-F01-GM: To fully leverage the capabilities of the CP2105-F01-GM, it's essential to configure the device according to the specific communication requirements of the application, which can typically be done through Silicon Labs' provided software tools. Ensuring that the power supply lines are stable and clean will help maintain the integrity of the USB and UART communications. Adequate decoupling and adherence to recommended PCB layout practices will further enhance the performance and reliability of the device in the application.

5. Design Considerations for Utilizing the CP2105-F01-GM: When designing with the CP2105-F01-GM, it is crucial to consider the placement of the device on the PCB to minimize the path lengths of critical signals, especially the USB lines, to reduce susceptibility to electromagnetic interference. Additionally, provision for firmware updates and system configuration through the USB interface should be considered to allow for future enhancements and maintenance.

6. Applications Involving the CP2105-F01-GM: The dual UART capability of the CP2105-F01-GM makes it particularly well-suited for complex applications that require communication with multiple serial devices over USB. This includes industrial automation systems, point-of-sale terminals, medical devices with diagnostic communication requirements, and multi-functional consumer electronics that benefit from the streamlined connectivity offered by USB interfaces.

In summary, the CP2105-F01-GM from Silicon Labs' CP210x series is a sophisticated USB to UART bridge solution designed to address the needs of applications requiring robust and flexible serial communication capabilities. Its dual UART functionality, combined with integrated USB connectivity features, makes it an ideal choice for a broad spectrum of applications. A thoughtful approach to integrating the CP2105-F01-GM, focusing on precise pin connections, power management, and signal integrity, is key to harnessing its full potential, thereby enhancing the functionality and reliability of the application it serves.
