Texas Instruments CD74HC4067M96E4

Part No.:: CD74HC4067M96E4

Manufacturer:: Texas Instruments

Package:: 24-SOIC (0.295, 7.50mm Width)

Datasheet:: CD74HC4067M96E4.pdf

Description:: IC MUX/DEMUX 1X16 24SOIC

In Stock:: 3985

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

CD74HC4067M96E4 Specifications

Package/Case:
24-SOIC (0.295, 7.50mm Width)
Packaging:
Tape & Reel (TR)
Series:
-
ProductStatus:
Discontinued at Mosen
SwitchCircuit:
-
Multiplexer/DemultiplexerCircuit:
16:1
NumberofCircuits:
1
On-StateResistance(Max):
160Ohm
Channel-to-ChannelMatching(ΔRon):
8.5Ohm
Voltage-SupplySingle(V+):
2V ~ 6V
Voltage-SupplyDual(V±):
-
SwitchTime(TonToff)(Max):
51ns, 49ns
-3dbBandwidth:
89MHz
ChargeInjection:
-
ChannelCapacitance(CS(off)CD(off)):
5pF, 50pF
Current-Leakage(IS(off))(Max):
800nA
Crosstalk:
-
OperatingTemperature:
-55°C ~ 125°C (TA)
MountingType:
Surface Mount

CD74HC4067M96E4 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including CD74HC4067M96E4 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for CD74HC4067M96E4 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

CD74HC4067M96E4 information

Views：

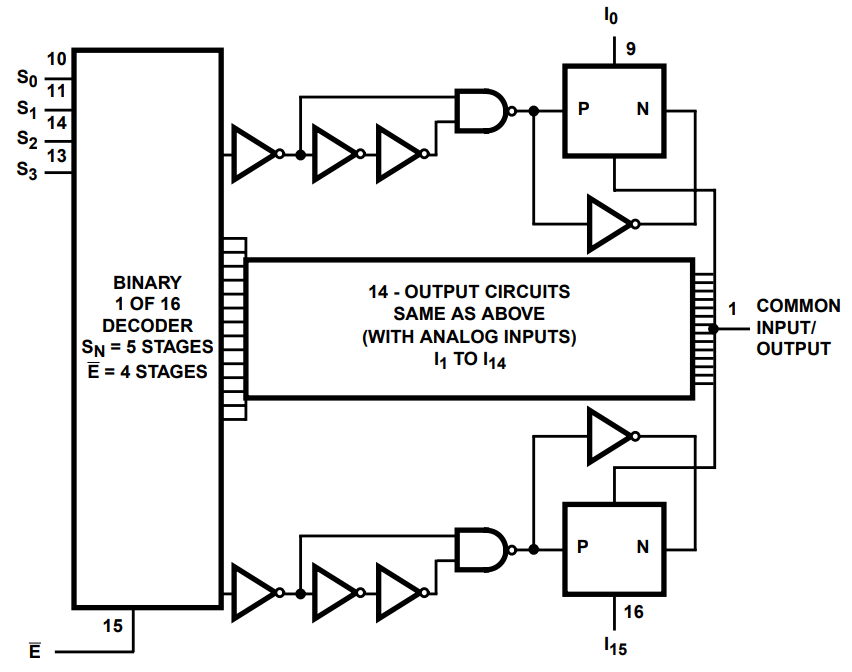

CD74HC4067M96E4 Typical application Circuitry

CD74HC4067M96E4

The CD74HC4067M96E4 is a part of the high-speed CMOS logic family, renowned for its versatile functionality in electronic systems. This integrated circuit stands out for its multiplexing capabilities, which are essential in applications requiring efficient channel selection or data routing.

1. Power Supply Configuration (VCC, GND): The CD74HC4067M96E4 operates with a supply voltage (VCC) that typically ranges from 2V to 6V. The ground pin (GND) should be securely connected to the system's ground. It is imperative to employ filtering capacitors near the VCC pin to ensure a stable power supply. This step is crucial to avoid operational inconsistencies due to power fluctuations or electrical noise.

2. Signal Input/Output (SIG, C0-C15, S0-S3): The core functionality of the CD74HC4067M96E4 lies in its 16-channel multiplexing feature. The SIG pin serves as the common input/output for these channels. Channels C0 to C15 are used for routing the signal from/to the SIG pin, depending on the state of the selection pins S0 to S3. Accurate control of these channels requires precise logic combinations at the S0-S3 pins.

3. Control Inputs (S0-S3, EN): The selection of active channels is determined by the logic levels applied to the S0-S3 pins. Additionally, the enable pin (EN) plays a crucial role in controlling the overall functionality of the IC. When EN is high, the multiplexer/demultiplexer is active; setting it low disables the device, effectively isolating the SIG pin from all channels.

4. Interface with Microcontrollers or Logic Circuits: For effective utilization of the CD74HC4067M96E4, it is essential to interface it with microcontrollers or other logic circuits. This connection enables the control of selection pins (S0-S3) and the enable pin (EN) to orchestrate the desired channel switching in response to specific conditions or commands.

5. Decoupling Capacitors for Noise Reduction: To enhance the performance of the CD74HC4067M96E4, placing decoupling capacitors close to the VCC and GND pins is recommended. These capacitors are crucial in mitigating high-frequency noise, thus ensuring smoother operation of the IC.

In summary, the CD74HC4067M96E4, a pivotal component in the CMOS logic family, offers significant advantages in channel multiplexing. Its efficient power supply configuration, signal routing capabilities, precise control through selection and enable pins, and effective interfacing with control circuits make it a robust choice for various electronic applications. The implementation of noise reduction strategies further underscores its reliability and effectiveness in complex electronic systems.
