Texas Instruments CD74HC4067M96

Part No.:: CD74HC4067M96

Manufacturer:: Texas Instruments

Package:: 24-SOIC (0.295, 7.50mm Width)

Datasheet:: CD74HC4067M96.pdf

Description:: IC MUX/DEMUX 1X16 24SOIC

In Stock:: 3965

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

CD74HC4067M96 Specifications

Package/Case:
24-SOIC (0.295, 7.50mm Width)
Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®,Bulk
Series:
-
ProductStatus:
Active
SwitchCircuit:
-
Multiplexer/DemultiplexerCircuit:
16:1
NumberofCircuits:
1
On-StateResistance(Max):
160Ohm
Channel-to-ChannelMatching(ΔRon):
8.5Ohm
Voltage-SupplySingle(V+):
2V ~ 6V
Voltage-SupplyDual(V±):
-
SwitchTime(TonToff)(Max):
51ns, 49ns
-3dbBandwidth:
89MHz
ChargeInjection:
-
ChannelCapacitance(CS(off)CD(off)):
5pF, 50pF
Current-Leakage(IS(off))(Max):
800nA
Crosstalk:
-
OperatingTemperature:
-55°C ~ 125°C (TA)
MountingType:
Surface Mount

CD74HC4067M96 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including CD74HC4067M96 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for CD74HC4067M96 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

CD74HC4067M96 information

Views：

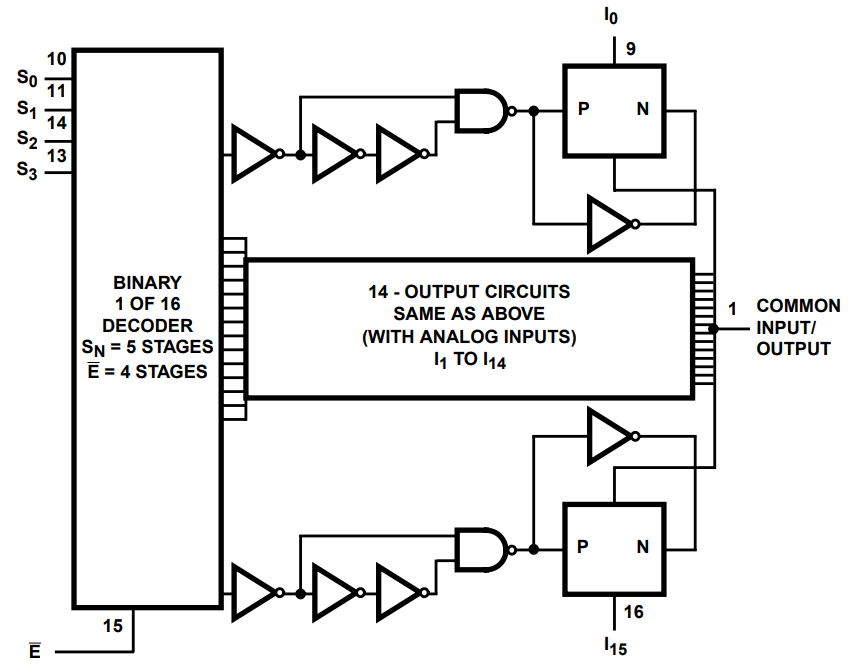

CD74HC4067M96 Typical application Circuitry

CD74HC4067M96

The CD74HC4067M96 is a member of the CD74HC series, developed by Texas Instruments, and serves as a versatile analog multiplexer/demultiplexer. This integrated circuit is particularly useful in applications where multiple analog or digital signals need to be routed to a single destination. Signal integrity and simplicity of integration into a variety of electronic systems are prioritized in its design.

1. Circuit Operation and Voltage Supply Connections: At the heart of the CD74HC4067M96's operation is its ability to selectively connect one of its 16 input/output (I/O) channels to a common output/input through a binary selection. The device operates effectively with a single power supply ranging typically from 2V to 6V. It's imperative to connect the VCC pin accurately to a power supply within this range. Additionally, ensuring the ground pin (GND) is properly connected to the system's ground is vital for maintaining circuit stability and signal accuracy.

2. Pin Configuration and Signal Routing: The CD74HC4067M96 comprises several critical pins: 16 I/O pins (C0-C15), common I/O (SIG), binary address inputs (S0-S3), enable input (E), VCC, and GND. The S0 to S3 pins are used to select which of the C0-C15 I/O pins is routed to the SIG pin. The enable pin (E) is particularly crucial; when set low, it activates the device, allowing signal routing through the selected channel. This configuration facilitates flexible control over multiple signal paths within a single integrated circuit.

3. Control Inputs and Functional Dynamics: The address pins (S0-S3) on the CD74HC4067M96 dictate the selection of the I/O channels. These pins interpret binary signals to select the active channel. For instance, a binary input of 0000 on S0-S3 would connect the C0 pin to the common SIG pin. The enable pin (E) is used to disable all channels when set high, adding an extra layer of control and preventing unwanted signal passage.

4. Circuit Integration and Layout Tips: Implementing the CD74HC4067M96 in a circuit board requires thoughtful planning in trace layout to ensure signal integrity. Minimizing the length and interference of traces connected to the I/O and control pins is crucial. Additionally, placing decoupling capacitors close to the VCC pin can aid in stabilizing the power supply and reducing potential noise.

5. Protection Considerations and External Components: While the CD74HC4067M96 incorporates protection against minor electrical mishaps, external protective components like transient voltage suppressors are recommended, especially when operating in environments prone to electrical noise or surges.

In summary, the CD74HC4067M96 stands out as a highly functional and adaptable analog multiplexer/demultiplexer, essential for managing multiple signal paths in complex electronic systems. A thorough understanding of its power supply requirements, pin functions, control dynamics, and integration strategies, along with the implementation of suitable protective measures, is key to harnessing the full potential of the CD74HC4067M96 in advanced electronic applications.
