Texas Instruments CD74HC4052PWRG4

Part No.:: CD74HC4052PWRG4

Manufacturer:: Texas Instruments

Package:: 16-TSSOP (0.173, 4.40mm Width)

Datasheet:: CD74HC4052PWRG4.pdf

Description:: IC MUX/DEMUX DUAL 4X1 16TSSOP

In Stock:: 4000

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

CD74HC4052PWRG4 Specifications

Package/Case:
16-TSSOP (0.173, 4.40mm Width)
Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
-
ProductStatus:
Discontinued at Mosen
SwitchCircuit:
SP4T
Multiplexer/DemultiplexerCircuit:
4:1
NumberofCircuits:
2
On-StateResistance(Max):
130Ohm
Channel-to-ChannelMatching(ΔRon):
5Ohm
Voltage-SupplySingle(V+):
2V ~ 6V
Voltage-SupplyDual(V±):
±1V ~ 5V
SwitchTime(TonToff)(Max):
-
-3dbBandwidth:
185MHz
ChargeInjection:
-
ChannelCapacitance(CS(off)CD(off)):
12pF
Current-Leakage(IS(off))(Max):
200nA
Crosstalk:
-
OperatingTemperature:
-55°C ~ 125°C (TA)
MountingType:
Surface Mount

CD74HC4052PWRG4 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including CD74HC4052PWRG4 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for CD74HC4052PWRG4 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

CD74HC4052PWRG4 information

Views：

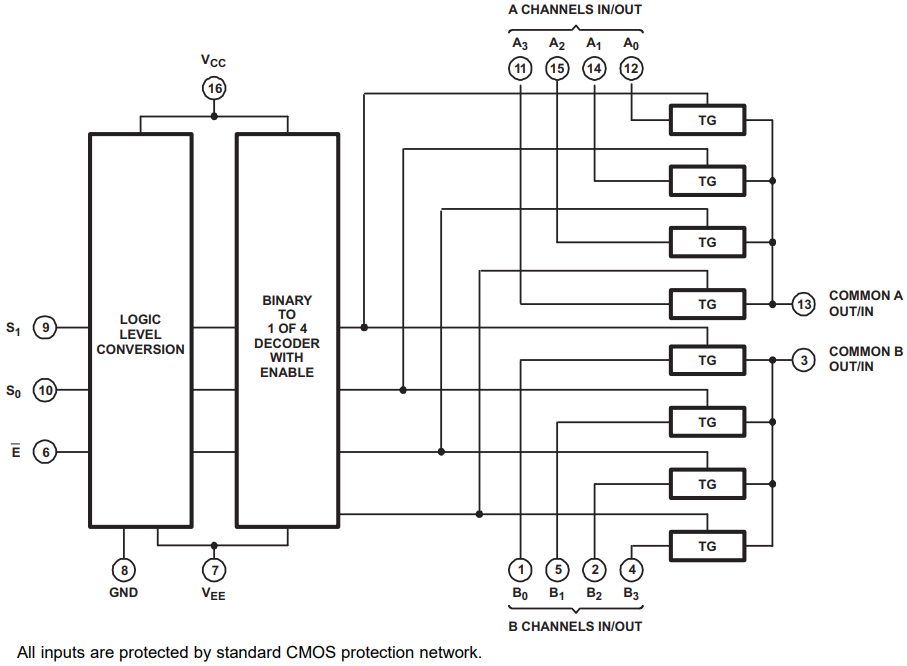

CD74HC4052PWRG4 Typical application Circuitry

CD74HC4052PWRG4

The CD74HC4052PWRG4 is an integrated circuit from the acclaimed 74HC series, which employs high-speed CMOS technology. This specific chip is a dual 4-channel analog multiplexer/demultiplexer, designed for efficient routing of analog or digital signals in various electronic systems. The CD74HC4052PWRG4 is particularly versatile due to its dual-channel configuration, allowing independent control of two sets of four channels. Operating within a voltage range of 2V to 6V, the CD74HC4052PWRG4 is suitable for a wide array of applications where precise signal management is required.

1. VCC (Power Supply) Connection: For powering the CD74HC4052PWRG4, pin 16, labeled as VCC, should be connected to the positive power supply. The chip functions effectively within a voltage range from 2V to 6V.

2. Ground (GND) Connection: The ground connection for the CD74HC4052PWRG4 is established at pin 8, designated as GND. In order to ensure steady operation of the IC, this pin must be linked to the system ground.

3. Common Inputs/Outputs Configuration: The CD74HC4052PWRG4 features two common inputs/outputs, with pin 1 (IO1) and pin 15 (IO2) serving these roles for the two separate multiplexer/demultiplexer sections.

4. Channel Select Inputs: Channel selection for each section is controlled via pins 10 (S0) and 9 (S1). The state of these pins determines which of the four channels is connected to the respective common I/O.

5. Enable Inputs: The enable inputs for the CD74HC4052PWRG4 are found on pin 6 (EN1) and pin 14 (EN2). Activating these pins (setting them low) enables their respective sections of the multiplexer/demultiplexer.

6. Channel Inputs/Outputs Details: There are eight channel I/O pins on the CD74HC4052PWRG4. Pins 3, 4, 11, and 12 function as I/O for the first section, while pins 5, 2, 13, and 7 serve the second section.

7. Vee Pin (Pin 7) Usage: In specific applications requiring a negative power supply or a certain voltage reference, pin 7 (Vee) is used. This pin is often grounded in single-supply operations.

8. Decoupling Capacitor Implementation: It is recommended to place a decoupling capacitor, commonly around 0.1 µF, near the VCC pin to ensure a stable power supply and reduce noise impacts on the CD74HC4052PWRG4.

9. PCB Layout Strategy: When laying out a PCB for the CD74HC4052PWRG4, particular attention should be paid to the routing of the enable, select, and channel I/O lines to minimize signal interference and preserve signal integrity.

In summary, the CD74HC4052PWRG4, belonging to the 74HC series, is a dual 4-channel analog multiplexer/demultiplexer that excels in applications requiring controlled signal routing. Proper connection of the power supply, ground, channel selection, enable functions, and I/Os is critical for the efficient use of the CD74HC4052PWRG4. Additionally, incorporating a decoupling capacitor and thoughtfully designing the PCB layout are crucial to optimize the performance and reliability of the CD74HC4052PWRG4 in electronic systems.
