Texas Instruments CD4069UBM96G4

Part No.:: CD4069UBM96G4

Manufacturer:: Texas Instruments

Package:: 14-SOIC

Datasheet:: CD4069UBM96G4.pdf

Description:: IC INVERTER 6CH 1-INP 14SOIC

In Stock:: 2245

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

CD4069UBM96G4 Specifications

Packaging:
Tape & Reel (TR)
Series:
4000B
ProductStatus:
Obsolete
LogicType:
Inverter
NumberofCircuits:
6
NumberofInputs:
1
Features:
-
Voltage-Supply:
3V ~ 18V
Current-Quiescent(Max):
1 µA
Current-OutputHighLow:
3.4mA, 3.4mA
LogicLevel-Low:
1V ~ 2.5V
LogicLevel-High:
4V ~ 12.5V
MaxPropagationDelay@VMaxCL:
50ns @ 15V, 50pF
OperatingTemperature:
-55°C ~ 125°C
MountingType:
Surface Mount

CD4069UBM96G4 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including CD4069UBM96G4 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for CD4069UBM96G4 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

CD4069UBM96G4 information

Views：

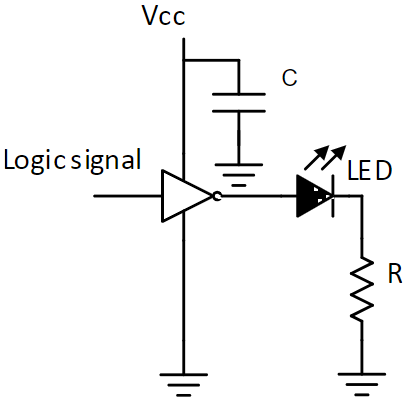

CD4069UBM96G4 Typical application Circuitry

CD4069UBM96G4

The CD4069UBM96G4 belongs to the esteemed CD4000 series, a range of integrated circuits known for their utilization of CMOS (Complementary Metal-Oxide-Semiconductor) technology. The CD4069UBM96G4 stands out in this series as it is equipped with six independent inverter circuits. These inverters are widely used in applications ranging from digital logic processing to waveform generation and signal conditioning. The versatility, high-voltage tolerance, and low power requirements of the CD4069UBM96G4 make it a preferred component in various electronic designs.

1. Power Supply Connection (VDD): The CD4069UBM96G4 is energized through its VDD pin, which is pin number 14. The voltage range in which this IC functions is 3V to 15V. Ensuring that the power supply aligns with this range is crucial for the optimal functioning of the CD4069UBM96G4.

2. Ground Connection (VSS): Pin 7 of the CD4069UBM96G4 serves as the VSS or ground pin. This pin must be connected to the ground of the circuit, establishing a common reference point for all the voltages in the system, thereby ensuring stable operation.

3. Inverter Inputs Configuration: The CD4069UBM96G4 contains six inverters, each with its own dedicated input pin - pins 1, 3, 5, 9, 11, and 13. These pins are designed to receive the digital signals that are to be inverted by the IC. It's imperative that the voltage levels of these inputs are compatible with the operating range of the CD4069UBM96G4.

4. Outputs of the Inverters: The outputs for the six inverters in the CD4069UBM96G4 are found at pins 2, 4, 6, 8, 10, and 12. These output pins emit the inverted version of the signals present at their respective input pins. They can be integrated into further components or stages within the electronic system as required.

5. Noise Reduction with a Decoupling Capacitor: For stable and efficient operation of the CD4069UBM96G4, it is recommended to place a decoupling capacitor, usually around 0.1 µF, near the VDD pin. This capacitor aids in noise reduction and maintains the IC's power supply stability.

6. PCB Layout Strategy: In the layout of a Printed Circuit Board (PCB) for the CD4069UBM96G4, special attention should be paid to the routing of the input and output traces. Proper planning in this aspect is crucial to minimize electronic noise and avoid signal interference, ensuring the reliable performance of the IC.

In conclusion, the CD4069UBM96G4 from the CD4000 series is characterized by its six unique inverters and is a key component in a multitude of electronic applications. Proper implementation of the CD4069UBM96G4 involves careful connections for the power supply, ground, and appropriate handling of input and output signals. Additionally, the inclusion of a decoupling capacitor and thoughtful PCB design are essential to maximize the functionality of the CD4069UBM96G4 in any electronic circuit.
