Texas Instruments CD4067BM96E4

Part No.:: CD4067BM96E4

Manufacturer:: Texas Instruments

Package:: 24-SOIC (0.295, 7.50mm Width)

Datasheet:: CD4067BM96E4.pdf

Description:: IC MUX/DEMUX 1X16 24SOIC

In Stock:: 2819

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

CD4067BM96E4 Specifications

Package/Case:
24-SOIC (0.295, 7.50mm Width)
Packaging:
Tape & Reel (TR)
Series:
-
ProductStatus:
Discontinued at Mosen
SwitchCircuit:
-
Multiplexer/DemultiplexerCircuit:
16:1
NumberofCircuits:
1
On-StateResistance(Max):
240Ohm
Channel-to-ChannelMatching(ΔRon):
5Ohm
Voltage-SupplySingle(V+):
3V ~ 18V
Voltage-SupplyDual(V±):
-
SwitchTime(TonToff)(Max):
-
-3dbBandwidth:
14MHz
ChargeInjection:
-
ChannelCapacitance(CS(off)CD(off)):
0.2pF, 55pF
Current-Leakage(IS(off))(Max):
100nA
Crosstalk:
-
OperatingTemperature:
-55°C ~ 125°C (TA)
MountingType:
Surface Mount

CD4067BM96E4 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including CD4067BM96E4 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for CD4067BM96E4 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

CD4067BM96E4 information

Views：

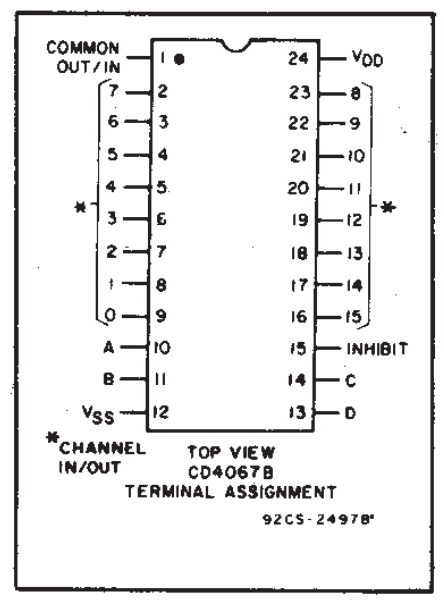

CD4067BM96E4 Typical application Circuitry

CD4067BM96E4

The CD4067BM96E4 is a 16-channel analog multiplexer/demultiplexer integrated circuit. This versatile chip allows for the efficient routing of analog or digital signals to a single output or input line through 16 available channels. It's highly useful in applications where there's a need to manage multiple input signals without requiring numerous pins for each signal, thereby saving space and simplifying circuit design.

Applications

This IC can be widely applied in various fields such as signal routing in data acquisition systems, analog-to-digital conversion, channel selection in communication systems, and many other scenarios where multiple inputs need to be managed by a single processor or output channel.

Key Parameters and Features

- Voltage Range: It typically operates within a wide voltage range, accommodating various types of signal levels.

- Low On-Resistance: To ensure the least amount of signal loss, the chip has a low on-resistance between the switch and its output.

- High Off-Isolation: Provides high isolation for channels that are not selected, minimizing potential crosstalk between channels.

- Bidirectional Operation: Can be used for both multiplexing and demultiplexing operations, adding to its versatility.

Detailed Circuit Implementation: Analog Signal Selection

One practical application scenario is using the CD4067BM96E4 for selecting one of many analog sensors to be read by a single analog-to-digital converter (ADC) in a microcontroller-based system.

- Power Supply Connection: First, connect V_DD (pin 24) to the positive supply voltage and V_SS (pin 12) to the ground. This powers up the chip.

- Control Signal Connections: Connect the four control inputs (S0-S3) pins 11, 10, 9, and 7 to four digital output pins on your microcontroller. These pins will be used to select the active channel.

- Common Output/Input Connection: For multiplexing, connect the SIG pin (pin 1) to the ADC input of the microcontroller. This pin acts as the common output or input for the CD4067BM96E4.

- Channel Selection: By applying a binary value between 0000 and 1111 to the control inputs (S0-S3), you can select any of the 16 channels (labeled as C0-C15, pins 13-15, 1-6, and 8) to connect to the SIG pin. For example, to select channel 5, you would apply a binary 0101 to S0-S3.

- Grounding Unused Inputs: To reduce noise, any unused channel inputs should be grounded.

Design Considerations

- Signal Integrity: Minimize the length of connections to and from the CD4067BM96E4 to reduce potential signal degradation and interference.

- Power Supply Noise: Ensure a clean power supply to avoid introducing noise into the signal paths.

- Thermal Management: Although the CD4067BM96E4 typically does not generate significant heat, in high-frequency or high-voltage applications, consider thermal aspects of your design.

- Decoupling Capacitors: Place decoupling capacitors close to the power supply pins to smooth out any voltage spikes and suppress noise.

By carefully planning the integration of the CD4067BM96E4 into your circuit and considering these key points, you can efficiently manage multiple signal inputs or outputs, thereby creating more compact, efficient, and versatile electronic designs.
