Texas Instruments CD4067BE

Part No.:: CD4067BE

Manufacturer:: Texas Instruments

Package:: 24-DIP (0.600, 15.24mm)

Datasheet:: CD4067BE.pdf

Description:: IC MUX/DEMUX 1X16 24DIP

In Stock:: 2685

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

CD4067BE Specifications

Package/Case:
24-DIP (0.600, 15.24mm)
Packaging:
Tube
Series:
-
ProductStatus:
Obsolete
SwitchCircuit:
-
Multiplexer/DemultiplexerCircuit:
16:1
NumberofCircuits:
1
On-StateResistance(Max):
240Ohm
Channel-to-ChannelMatching(ΔRon):
5Ohm
Voltage-SupplySingle(V+):
3V ~ 18V
Voltage-SupplyDual(V±):
-
SwitchTime(TonToff)(Max):
-
-3dbBandwidth:
14MHz
ChargeInjection:
-
ChannelCapacitance(CS(off)CD(off)):
0.2pF, 55pF
Current-Leakage(IS(off))(Max):
100nA
Crosstalk:
-
OperatingTemperature:
-55°C ~ 125°C (TA)
MountingType:
Through Hole

CD4067BE this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including CD4067BE price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for CD4067BE to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

CD4067BE information

Views：

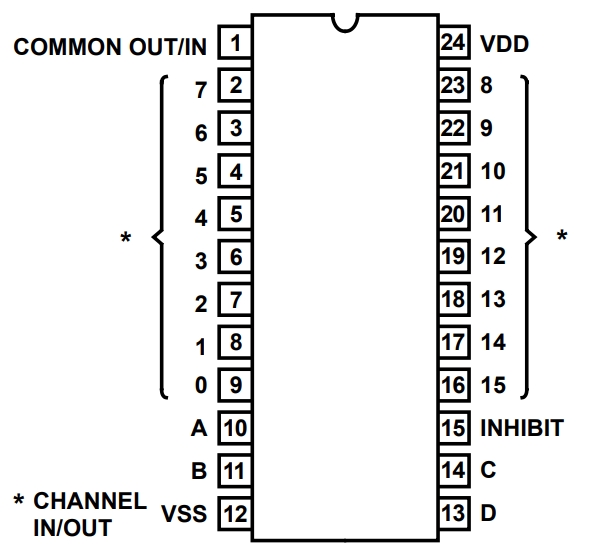

CD4067BE Typical application Circuitry

CD4067BE

CD4067BE is a 16-channel analog multiplexer/demultiplexer chip that allows the user to select one out of multiple analog signals for output, or to distribute one input signal to multiple outputs. This chip is highly versatile and widely applicable, especially suitable for scenarios requiring signal selection, such as data acquisition systems, signal switching, communication systems, and more.

Application Scenario:

A typical application scenario is in the expansion of analog inputs for a microcontroller. Since microcontrollers have a limited number of analog input channels, using CD4067BE can significantly expand the number of analog signals a microcontroller can handle, enabling it to process more analog inputs.

Parameter Features:

- Wide Operating Voltage Range: Typically between 10V and 20V, suitable for various power configurations.

- High Impedance: The high impedance at input and output ports ensures the quality of signal transmission and reduces loading effects.

- Low Power Consumption: It is perfect for applications that are power-sensitive because of its extremely low power consumption at standard temperature.

Specific Circuit Connection - Microcontroller Analog Input Expansion

Connection Overview: In this scenario, we will use CD4067BE to expand a microcontroller's analog input channels. Suppose our goal is to expand a microcontroller with limited analog inputs to be able to read up to 16 different analog signals.

1. Power Connection: Attach the CD4067BE's VSS pin to ground and its VDD pin to a positive power source. This gives the chip the operational voltage that it needs.

2. Microcontroller Interface: Choose four digital output pins from the microcontroller and connect them to the control input pins (S0 to S3) of CD4067BE. These control pins determine which signal channel is connected to the output of CD4067BE.

3. Analog Signal Input: Connect the analog signals you wish to read to the 16 input pins of CD4067BE (from C0 to C15). These pins are the input channels of the multiplexer.

4. Output Connection: Connect the output pin (SIG) of CD4067BE to one of the microcontroller's analog input pins. This way, the selected analog signal can be read by the microcontroller.

5. Ground Connection: Ensure that the ground of CD4067BE is connected to the microcontroller's ground to ensure consistency of the signal reference.

Issues to Consider

When Designing the Circuit:

- Signal Integrity: Ensure that signal paths are short and direct to reduce interference and maintain signal quality.

- Power Supply Filtering: Provide a stable power supply for CD4067BE, adding decoupling capacitors if necessary to reduce power noise.

- Preventing Overload: Ensure that signals connected to the input of CD4067BE do not exceed its maximum input voltage specification to avoid damaging the chip.

- Programming Control: Program the microcontroller correctly to ensure that the correct channel is selected, thereby reading the correct analog signal.

Through the above steps and considerations, CD4067BE can be effectively used to expand the analog input capability of a microcontroller, providing a simple and efficient solution for complex applications.
