Texas Instruments CD4052BPWR

Part No.:: CD4052BPWR

Manufacturer:: Texas Instruments

Package:: 16-TSSOP (0.173, 4.40mm Width)

Datasheet:: CD4052BPWR.pdf

Description:: IC MUX/DEMUX DUAL 4X1 16TSSOP

In Stock:: 2838

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

CD4052BPWR Specifications

Package/Case:
16-TSSOP (0.173, 4.40mm Width)
Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
-
ProductStatus:
Active
SwitchCircuit:
SP4T
Multiplexer/DemultiplexerCircuit:
4:1
NumberofCircuits:
2
On-StateResistance(Max):
240Ohm
Channel-to-ChannelMatching(ΔRon):
5Ohm
Voltage-SupplySingle(V+):
3V ~ 20V
Voltage-SupplyDual(V±):
±2.5V ~ 9V
SwitchTime(TonToff)(Max):
-
-3dbBandwidth:
25MHz
ChargeInjection:
-
ChannelCapacitance(CS(off)CD(off)):
0.2pF, 18pF
Current-Leakage(IS(off))(Max):
100nA
Crosstalk:
-40dB @ 10MHz
OperatingTemperature:
-55°C ~ 125°C (TA)
MountingType:
Surface Mount

CD4052BPWR this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including CD4052BPWR price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for CD4052BPWR to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

CD4052BPWR information

Views：

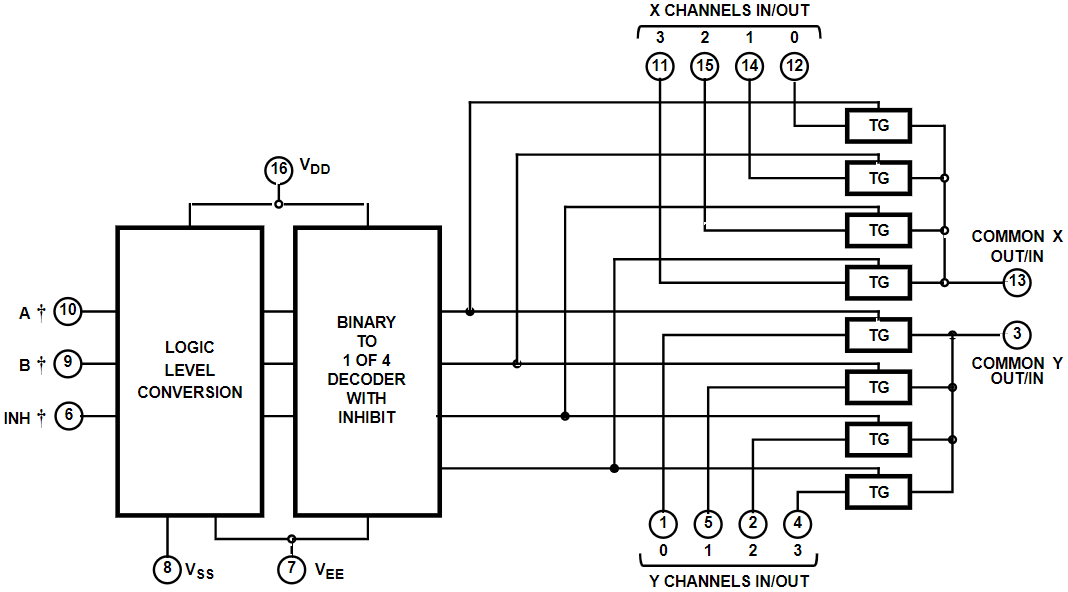

CD4052BPWR Typical application Circuitry

CD4052BPWR

The CD4052BPWR is a significant model in Texas Instruments' CD4000 series, known for its advanced CMOS logic integrated circuits. The CD4052BPWR is a Dual 4-Channel Analog Multiplexer/Demultiplexer, which is highly regarded for its ability to handle multiple analog or digital signals with great efficiency. This IC is particularly advantageous in applications that necessitate compact and efficient routing of various signal paths, such as in data acquisition systems, signal processing, and communication systems, where it allows for streamlined and effective signal management.

1. Power Supply (VDD Pin): Connect the VDD pin of the CD4052BPWR to a suitable positive power source. It is essential to ensure that the voltage level is within the specified range for CMOS logic ICs to ensure the proper operation of the multiplexer/demultiplexer.

2. Ground Connection (VSS Pin): The system's ground should be linked to the VSS pin. This grounding provides a stable reference for the entire circuit, essential for the optimal functioning of the IC.

3. Analog Inputs/Outputs (AX0 to AX3, BX0 to BX3 Pins): The CD4052BPWR has two sets of four channels, AX0 to AX3 and BX0 to BX3, which function as inputs or outputs for analog signals. The configuration of these channels as either inputs or outputs depends on whether the IC is being used as a multiplexer or a demultiplexer.

4. Common Output/Input (A, B Pins): The A and B pins act as the common outputs in the multiplexer mode and as common inputs in the demultiplexer mode. They are essential to the chosen analog signals' routing.

5. Control Inputs (S0, S1 Pins): Control inputs S0 and S1 are used to select the active channels (AX0 to AX3 or BX0 to BX3) connected to the common outputs/inputs (A or B). Binary signals to these pins control the channel selection.

6. Enable Input (E Pin): The E pin functions as an enable control for the IC. When this pin is low, the IC operates normally; when high, it disconnects all channels from their common outputs/inputs, disabling the device.

7. Decoupling Capacitor: It is suggested to place a decoupling capacitor close to the VDD pin. This capacitor helps stabilize the power supply to the IC and minimizes noise, which is crucial for maintaining the integrity of signal routing.

8. PCB Layout Design: The design of the PCB should focus on minimizing interference and crosstalk in the routing of analog signals. This ensures clean signal paths and maintains signal quality.

In summary, the CD4052BPWR from the CD4000 series is an essential dual 4-channel analog multiplexer/demultiplexer widely used in digital and analog systems. Proper implementation involves connecting to a suitable power supply, grounding, configuring analog inputs/outputs, managing control inputs, and handling the enable function. Furthermore, a well-designed PCB with a decoupling capacitor is critical for the effective operation of the CD4052BPWR in multiplexing and demultiplexing applications.
