Texas Instruments CD4052BM96

Part No.:: CD4052BM96

Manufacturer:: Texas Instruments

Package:: 16-SOIC (0.154, 3.90mm Width)

Datasheet:: CD4052BM96.pdf

Description:: IC MUX/DEMUX DUAL 4X1 16SOIC

In Stock:: 3763

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

CD4052BM96 Specifications

Package/Case:
16-SOIC (0.154, 3.90mm Width)
Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®,Bulk
Series:
-
ProductStatus:
Active
SwitchCircuit:
SP4T
Multiplexer/DemultiplexerCircuit:
4:1
NumberofCircuits:
2
On-StateResistance(Max):
240Ohm
Channel-to-ChannelMatching(ΔRon):
5Ohm
Voltage-SupplySingle(V+):
3V ~ 20V
Voltage-SupplyDual(V±):
±2.5V ~ 9V
SwitchTime(TonToff)(Max):
-
-3dbBandwidth:
25MHz
ChargeInjection:
-
ChannelCapacitance(CS(off)CD(off)):
0.2pF, 18pF
Current-Leakage(IS(off))(Max):
100nA
Crosstalk:
-40dB @ 10MHz
OperatingTemperature:
-55°C ~ 125°C (TA)
MountingType:
Surface Mount

CD4052BM96 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including CD4052BM96 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for CD4052BM96 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

CD4052BM96 information

Views：

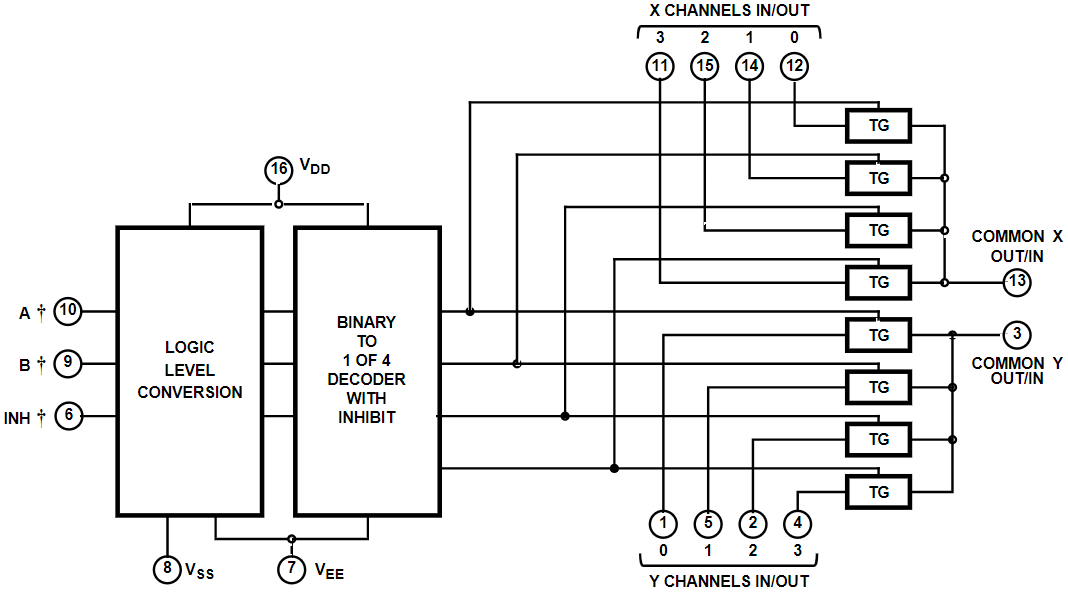

CD4052BM96 Typical application Circuitry

CD4052BM96

The CD4052BM96 is a part of Texas Instruments' esteemed CD4000 series, recognized for its comprehensive range of CMOS logic integrated circuits. Specifically, the CD4052BM96 is a Dual 4-Channel Analog Multiplexer/Demultiplexer, designed for efficient handling and routing of multiple analog or digital signals. This IC is particularly advantageous in applications requiring the selection and routing of several signal paths through a single unit, such as in data acquisition systems, signal processing, and communication systems, making it a valuable component for compact and effective circuit designs.

1. Power Supply (VDD Pin): Connect the VDD pin of the CD4052BM96 to a positive power source. It is crucial to ensure that this voltage level falls within the specified range for CMOS logic ICs to ensure the proper functioning of the multiplexer/demultiplexer.

2. Grounding (VSS Pin): The VSS pin should be connected to the system's ground. This grounding provides a stable reference for the entire circuit, essential for the optimal operation of the IC.

3. Analog Inputs/Outputs (AX0 to AX3, BX0 to BX3 Pins): The CD4052BM96 features two sets of four channels, AX0 to AX3 and BX0 to BX3, for analog signals. These channels serve as inputs or outputs depending on whether the IC is configured as a multiplexer or demultiplexer.

4. Common Output/Input (A, B Pins): The A and B pins act as the common outputs for their respective sets of channels in multiplexer mode and as the common inputs in demultiplexer mode. These pins are central for the routing of selected analog signals.

5. Control Inputs (S0, S1 Pins): The S0 and S1 pins are control inputs used to select the active channels (AX0 to AX3 or BX0 to BX3) connected to the common output/input (A or B). Binary signals to these pins determine the active channel selection.

6. Enable Input (E Pin): The E pin functions as an enable control for the IC. When low, the IC operates normally; when high, it disconnects all channels from their common outputs/inputs, effectively disabling the device.

7. Decoupling Capacitor: Implementing a decoupling capacitor near the VDD pin is advisable. This capacitor helps stabilize the power supply to the IC and minimizes noise, essential for maintaining the accuracy of signal routing.

8. PCB Layout Design: In designing the PCB, care should be taken to minimize interference and crosstalk in the routing of analog signals, ensuring clean signal paths and maintaining signal integrity.

In summary, the CD4052BM96 from the CD4000 series is a crucial dual 4-channel analog multiplexer/demultiplexer extensively used in digital and analog systems. Proper implementation involves connecting to a suitable power supply, grounding, configuring analog inputs/outputs, managing control inputs, and handling the enable function. Additionally, a well-conceived PCB layout with a decoupling capacitor is critical for the effective functioning of the CD4052BM96 in multiplexing and demultiplexing applications.
