What is the Additional Feature ?

Name: CD4051BPWR
Brand: Texas Instruments
SKU: CD4051BPWR
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Any Feature, including a modified Existing Feature, that is not an Existing Feature.

Cart ( )

lmages are for reference only See Product Specifications

Texas Instruments CD4051BPWR

Part No.:: CD4051BPWR

Manufacturer:: Texas Instruments

Package:: 16-TSSOP (0.173, 4.40mm Width)

Datasheet:: CD4051BPWR.pdf

Description:: IC MUX/DEMUX 8X1 16TSSOP

In Stock:: 2260

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

CD4051BPWR Specifications

Package/Case:
16-TSSOP (0.173, 4.40mm Width)
Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®,Bulk
Series:
-
ProductStatus:
Active
SwitchCircuit:
-
Multiplexer/DemultiplexerCircuit:
8:1
NumberofCircuits:
1
On-StateResistance(Max):
240Ohm
Channel-to-ChannelMatching(ΔRon):
5Ohm
Voltage-SupplySingle(V+):
3V ~ 20V
Voltage-SupplyDual(V±):
±2.5V ~ 9V
SwitchTime(TonToff)(Max):
-
-3dbBandwidth:
20MHz
ChargeInjection:
-
ChannelCapacitance(CS(off)CD(off)):
0.2pF, 30pF
Current-Leakage(IS(off))(Max):
100nA
Crosstalk:
-
OperatingTemperature:
-55°C ~ 125°C (TA)
MountingType:
Surface Mount

CD4051BPWR this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including CD4051BPWR price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for CD4051BPWR to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

CD4051BPWR information

Views：

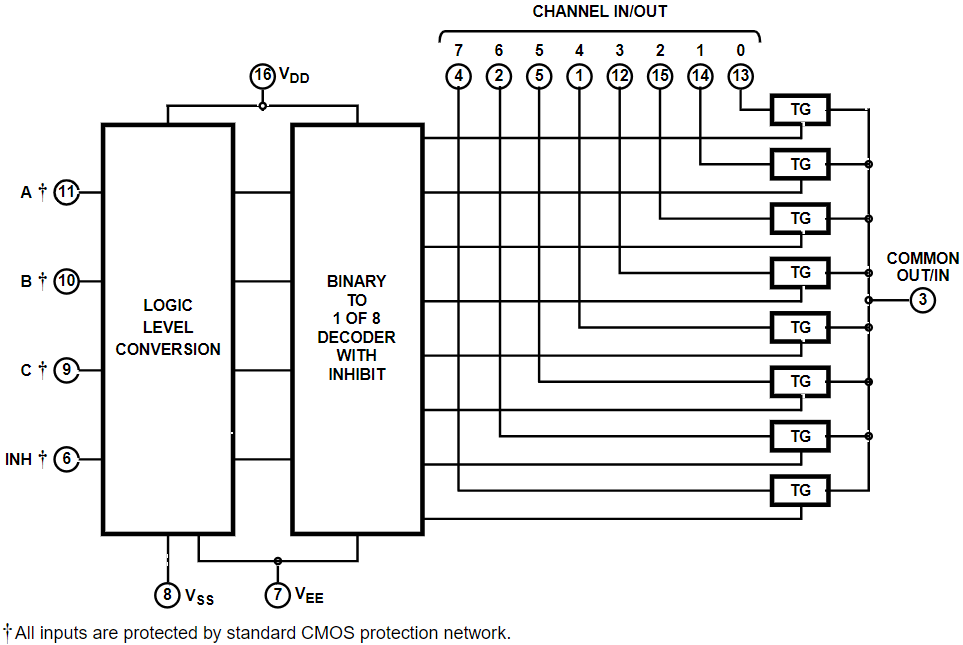

CD4051BPWR Typical application Circuitry

CD4051BPWR

The CD4051BPWR is a significant component of the CD4000 series by Texas Instruments, notable for its range of CMOS-based logic integrated circuits. This model, the CD4051BPWR, is an 8-Channel Analog Multiplexer/Demultiplexer, widely recognized for its ability to handle multiple analog or digital signals efficiently. It is particularly suited for use in systems where there is a need to route multiple signals through a single channel, such as in data acquisition systems, signal routing applications, and communication systems, making it a versatile and crucial component in both digital and analog circuit design.

1. Power Supply (VDD Pin): Connect the VDD pin of the CD4051BPWR to a positive power source. Ensure that this voltage level falls within the recommended range for CMOS logic ICs to ensure the proper functioning of the multiplexer/demultiplexer.

2. Ground Connection (VSS Pin): The system's ground should be linked to the VSS pin. This grounding is essential for providing a stable reference for the entire circuit and for the optimal operation of the IC.

3. Analog Inputs/Outputs (X0 to X7 Pins): The CD4051BPWR has eight channels (X0 to X7) that serve as inputs or outputs for analog signals. These channels function as either inputs or outputs depending on the IC's configuration as a multiplexer or a demultiplexer.

4. Common Output/Input (Z Pin): The Z pin acts as the common output in the multiplexer configuration and as the common input in the demultiplexer configuration. This pin is central to the routing of the selected analog signal.

5. Control Inputs (S0, S1, S2 Pins): Control inputs S0, S1, and S2 are used to select which of the eight channels (X0 to X7) is connected to the common output/input (Z). These pins receive binary signals to control the active channel selection.

6. Enable Input (E Pin): The E pin is an enable control for the IC. When this pin is low (active), the IC operates normally; when high (inactive), it disconnects all channels from the common output/input, effectively disabling the device.

7. Decoupling Capacitor: Placing a decoupling capacitor near the VDD pin is recommended. This capacitor helps stabilize the voltage supply to the IC and minimizes noise, crucial for maintaining the accuracy of signal routing.

8. PCB Layout Design: In designing the PCB, it is important to carefully route the analog signals to minimize interference and crosstalk, ensuring clean signal paths and maintaining signal integrity.

In summary, the CD4051BPWR from the CD4000 series is a versatile 8-channel analog multiplexer/demultiplexer used extensively in both digital and analog systems. Proper implementation involves connecting to a suitable power supply, grounding, configuring analog inputs/outputs, managing control inputs, and handling the enable function. Additionally, a well-designed PCB with a decoupling capacitor is critical for the effective operation of the CD4051BPWR in multiplexing and demultiplexing applications.

CD4051BPWR FAQ

1. How to order CD4051BPWR on icwhale.com?

Currently, icwhale.com only provide peer-to-peer order processing. While you submit the RFQ, our professional agent will contact you with the competitive prices in the global market, and our agent will prompt you to finish the order if you accept our offers.

2. How does icwhale.com guarantee that CD4051BPWR is from the original manufacturer or authorized agents?

We have a professional and experienced quality control team to strictly verify and test the CD4051BPWR. All suppliers must pass our qualification reviews before they can publish their products including CD4051BPWR on icwhale.com; we pay more attention to the channels and quality of CD4051BPWR products than any other customer. We strictly implement supplier audits, so you can purchase with confidence.

3. Are the CD4051BPWR price and inventory displayed accurate?

The price and inventory of CD4051BPWR fluctuates frequently and cannot be updated in time, it will be updated periodically within 24 hours. And, our quotation usually expires after 5 days.

4. What forms of payment are accepted?

Wire Transfer, PayPal, Alipay, Wechat, Credit Card, Western Union, MoneyGram, and Escrow are all acceptable.

Warm Tips: Some orders in certain payment forms may require handling fee.

5. How is the shipping arranged?

Customers can choose industry-leading freight companies, including DHL, UPS, FedEx, TNT, and Registered Mail. Shipping insurance is also available.

Once your order has been processed for shipment, our salesperson will send you an email advising you of the shipping status and tracking number.

Warm Tips: It may take up to 24 hours for the carriers to display tracking information. Usually, express delivery takes 3-5 days, and registered mail takes 25-60 days.

6. What is the process for return or replacement of CD4051BPWR?

All goods will implement Pre-Shipment Inspection (PSI), selected at random from all batches of your order to do a systematic inspection before arranging the shipment. If there is something wrong with the CD4051BPWR we delivered, we will accept the replacement or return of the CD4051BPWR only when all of the below conditions are fulfilled:

(1)Such as a deficiency in quantity, delivery of wrong items, and apparent external defects (breakage and rust, etc.), and we acknowledge such problems.

(2)We are informed of the defect described above within 90 days after the delivery of CD4051BPWR.

(3)The PartNo is unused and only in the original unpacked packaging.

Two processes to return the products:

(1)Inform us within 90 days

(2)Obtain Requesting Return Authorizations
