Texas Instruments CD4051BM96

Part No.:: CD4051BM96

Manufacturer:: Texas Instruments

Package:: 16-SOIC (0.154, 3.90mm Width)

Datasheet:: CD4051BM96.pdf

Description:: IC MUX/DEMUX 8X1 16SOIC

In Stock:: 8112

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

CD4051BM96 Specifications

Package/Case:
16-SOIC (0.154, 3.90mm Width)
Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
-
ProductStatus:
Active
SwitchCircuit:
-
Multiplexer/DemultiplexerCircuit:
8:1
NumberofCircuits:
1
On-StateResistance(Max):
240Ohm
Channel-to-ChannelMatching(ΔRon):
5Ohm
Voltage-SupplySingle(V+):
3V ~ 20V
Voltage-SupplyDual(V±):
±2.5V ~ 9V
SwitchTime(TonToff)(Max):
-
-3dbBandwidth:
20MHz
ChargeInjection:
-
ChannelCapacitance(CS(off)CD(off)):
0.2pF, 30pF
Current-Leakage(IS(off))(Max):
100nA
Crosstalk:
-
OperatingTemperature:
-55°C ~ 125°C (TA)
MountingType:
Surface Mount

CD4051BM96 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including CD4051BM96 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for CD4051BM96 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

CD4051BM96 information

Views：

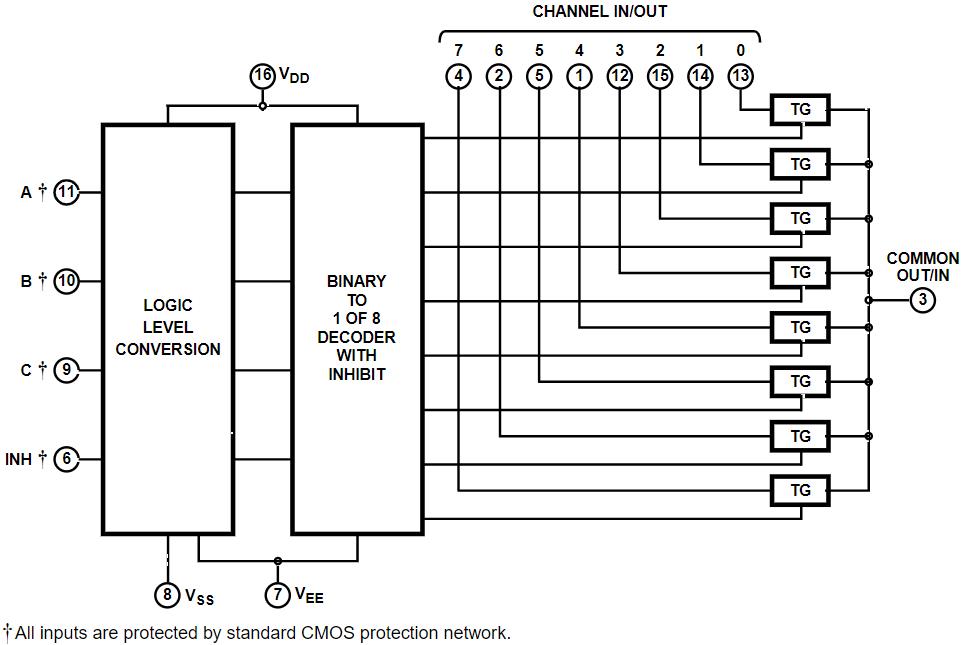

CD4051BM96 Typical application Circuitry

CD4051BM96

The CD4051BM96 is a vital component of Texas Instruments' CD4000 series, known for its CMOS logic integrated circuits. The CD4051BM96, specifically, is an 8-Channel Analog Multiplexer/Demultiplexer, renowned for its ability to manage multiple analog or digital signals through a single device efficiently. This makes it highly valuable in applications like data acquisition systems, signal routing, and communication systems, where it can streamline the process of switching between multiple signal paths, thereby enhancing overall system efficiency and compactness.

1. Power Supply (VDD Pin): Connect the VDD pin of the CD4051BM96 to a positive power source. It's essential to ensure the voltage level is within the specified range for CMOS logic ICs, to guarantee the proper functioning of the multiplexer/demultiplexer.

2. Grounding (VSS Pin): It is necessary to connect the VSS pin to the system's ground. This connection provides a stable reference point for the entire circuit, crucial for the optimal functioning of the IC.

3. Analog Inputs/Outputs (X0 to X7 Pins): The CD4051BM96 features eight channels (X0 to X7) for analog signals, which can function as either inputs or outputs, based on the IC's configuration as a multiplexer or demultiplexer.

4. Common Output/Input (Z Pin): The Z pin serves as the common output in multiplexer mode and as the common input in demultiplexer mode. This pin is the main channel for the selected analog signal.

5. Control Inputs (S0, S1, S2 Pins): These pins (S0, S1, and S2) are control inputs used to select the active channel (X0 to X7) that connects to the common output/input (Z). Binary signals fed into these pins determine the channel selection.

6. Enable Input (E Pin): The E pin functions as an enable control for the IC. When active (low), the IC is operational; when inactive (high), it disconnects all channels from the common output/input, effectively disabling the device.

7. Decoupling Capacitor: Implementing a decoupling capacitor near the VDD pin is advisable. This capacitor helps stabilize the power supply to the IC and minimize noise, crucial for maintaining the integrity of the signal routing.

8. PCB Layout Design: When designing the PCB, careful planning is necessary to ensure minimal interference and crosstalk in the routing of analog signals, thereby preserving signal quality and integrity.

In summary, the CD4051BM96 from the CD4000 series is an essential 8-channel analog multiplexer/demultiplexer extensively used in digital and analog systems. Proper implementation involves connecting to a suitable power supply, grounding, configuring analog inputs/outputs, managing control inputs, and handling the enable function. Additionally, a well-conceived PCB layout with a decoupling capacitor is critical for the effective functioning of the CD4051BM96 in multiplexing and demultiplexing applications.
