Texas Instruments CD4051BM

Part No.:: CD4051BM

Manufacturer:: Texas Instruments

Package:: 16-SOIC (0.154, 3.90mm Width)

Datasheet:: CD4051BM.pdf

Description:: IC MUX/DEMUX 8X1 16SOIC

In Stock:: 547

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

CD4051BM Specifications

Package/Case:
16-SOIC (0.154, 3.90mm Width)
Packaging:
Bulk,Tube
Series:
-
ProductStatus:
Active
SwitchCircuit:
-
Multiplexer/DemultiplexerCircuit:
8:1
NumberofCircuits:
1
On-StateResistance(Max):
240Ohm
Channel-to-ChannelMatching(ΔRon):
5Ohm
Voltage-SupplySingle(V+):
3V ~ 20V
Voltage-SupplyDual(V±):
±2.5V ~ 9V
SwitchTime(TonToff)(Max):
-
-3dbBandwidth:
20MHz
ChargeInjection:
-
ChannelCapacitance(CS(off)CD(off)):
0.2pF, 30pF
Current-Leakage(IS(off))(Max):
100nA
Crosstalk:
-
OperatingTemperature:
-55°C ~ 125°C (TA)
MountingType:
Surface Mount

CD4051BM this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including CD4051BM price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for CD4051BM to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

CD4051BM information

Views：

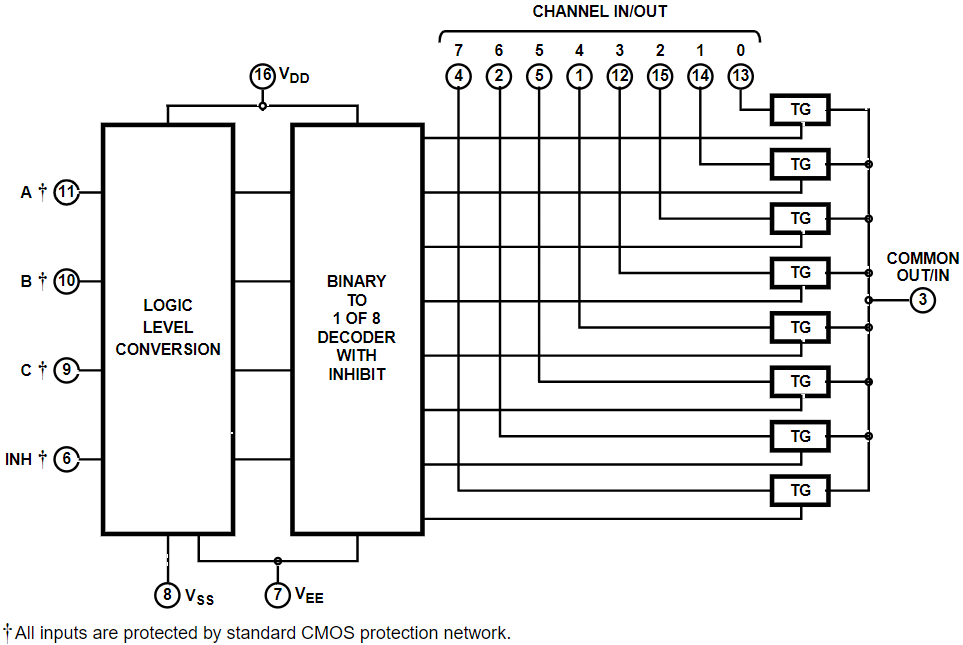

CD4051BM Typical application Circuitry

CD4051BM

The CD4051BM is an integral part of Texas Instruments' CD4000 series, renowned for its CMOS logic integrated circuits. The CD4051BM, specifically, is an 8-Channel Analog Multiplexer/Demultiplexer, known for its versatility in managing multiple analog or digital signals through a single interface. This capability makes it particularly valuable in applications such as data acquisition systems, signal routing, and communication systems, where efficient management of multiple signal paths is crucial.

1. Power Supply (VDD Pin): Connect the VDD pin of the CD4051BM to a positive power source. The voltage level for this supply should be within the operational range specified for CMOS logic ICs to ensure the IC functions correctly.

2. Ground Connection (VSS Pin): The VSS pin needs to be connected to the system's ground. This grounding provides a stable reference for the entire circuit and is essential for the optimal functioning of the IC.

3. Analog Inputs/Outputs (X0 to X7 Pins): The CD4051BM has eight input/output pins (X0 to X7) for analog signals. Depending on whether the IC is configured as a multiplexer or demultiplexer, these pins act as either inputs or outputs.

4. Common Output/Input (Z Pin): The Z pin serves as the common output when the IC is used as a multiplexer and as the common input when used as a demultiplexer. This pin is the main channel through which the selected analog signal is routed.

5. Control Inputs (S0, S1, S2 Pins): The control inputs S0, S1, and S2 are used to select which of the eight channels (X0 to X7) is connected to the common output/input (Z). These pins accept binary signals to control the channel selection.

6. Enable Input (E Pin): The E pin is an enable control. When active (low), the IC is operational. When inactive (high), it disconnects all channels from the common output/input, effectively disabling the device.

7. Decoupling Capacitor: Installing a decoupling capacitor near the VDD pin is recommended. This capacitor helps stabilize the voltage supply to the IC and minimizes noise, crucial for maintaining signal integrity.

8. PCB Layout Design: Careful planning is essential in the PCB layout, particularly for routing the analog signals. The goal is to minimize interference and crosstalk between channels, ensuring clean signal paths and maintaining the integrity of the signals being routed.

In summary, the CD4051BM from the CD4000 series is a versatile 8-channel analog multiplexer/demultiplexer used extensively in digital and analog systems. Implementing this IC involves connecting to a suitable power supply, grounding, managing analog inputs/outputs, controlling channel selection, and handling the enable function. Additionally, a well-designed PCB with a decoupling capacitor is crucial for the effective operation of the CD4051BM in multiplexing and demultiplexing applications.
