Harris Corporation CD4051BE

Part No.:: CD4051BE

Manufacturer:: Harris Corporation

Package:: 16-DIP (0.300, 7.62mm)

Datasheet:: CD4051BE.pdf

Description:: SINGLE-ENDED MUX, 8 CHANNEL

In Stock:: 2567

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

CD4051BE Specifications

Package/Case:
16-DIP (0.300, 7.62mm)
Packaging:
Tube
Series:
-
ProductStatus:
Obsolete
SwitchCircuit:
-
Multiplexer/DemultiplexerCircuit:
8:1
NumberofCircuits:
1
On-StateResistance(Max):
240Ohm
Channel-to-ChannelMatching(ΔRon):
5Ohm
Voltage-SupplySingle(V+):
3V ~ 20V
Voltage-SupplyDual(V±):
±2.5V ~ 9V
SwitchTime(TonToff)(Max):
-
-3dbBandwidth:
20MHz
ChargeInjection:
-
ChannelCapacitance(CS(off)CD(off)):
0.2pF, 30pF
Current-Leakage(IS(off))(Max):
100nA
Crosstalk:
-
OperatingTemperature:
-55°C ~ 125°C (TA)
MountingType:
Through Hole

CD4051BE this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including CD4051BE price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for CD4051BE to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

CD4051BE information

Views：

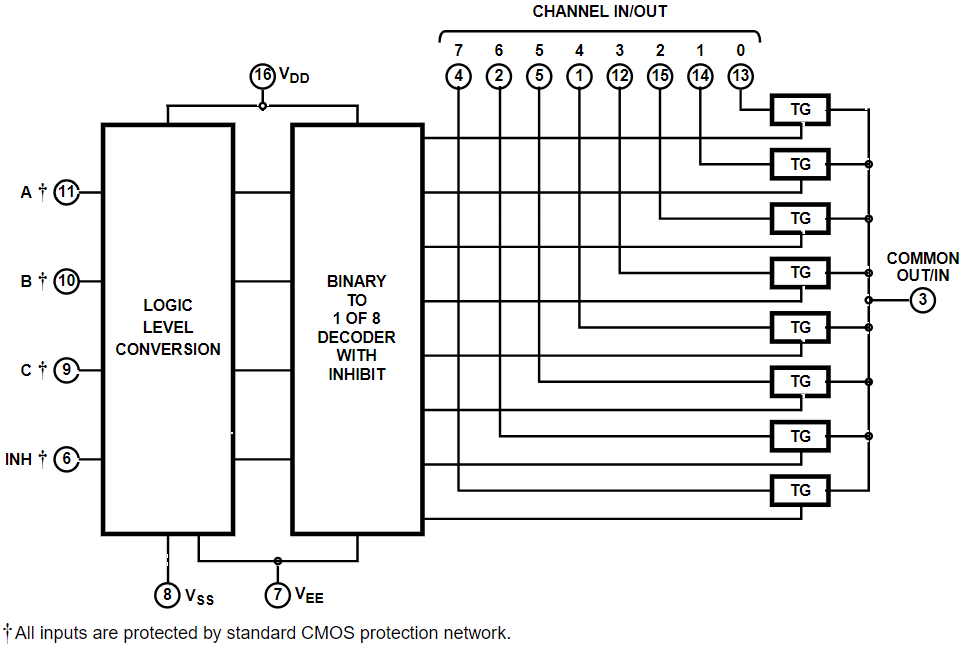

CD4051BE Typical application Circuitry

CD4051BE

The CD4051BE is a prominent part of Texas Instruments' CD4000 series, renowned for its range of CMOS-based integrated circuits. Specifically, the CD4051BE is an 8-Channel Analog Multiplexer/Demultiplexer, which is highly valued in digital and analog electronics for its ability to efficiently switch multiple analog or digital signals. This IC is particularly useful in applications where multiple data sources need to be channeled through a single data line, such as in data acquisition systems, signal routing, and communication systems.

1. Power Supply (VDD Pin): Connect the VDD pin of the CD4051BE to a positive power source. It's important to maintain the voltage level within the specified range for CMOS logic ICs to ensure the proper operation of the multiplexer/demultiplexer.

2. Ground Connection (VSS Pin): The system's ground should be linked to the VSS pin. This grounding provides a stable reference for the entire circuit and is essential for the correct functioning of the IC.

3. Analog Inputs/Outputs (X0 to X7 Pins): The CD4051BE has eight input/output pins (X0 to X7) for analog signals. These pins serve as either inputs or outputs, depending on whether the IC is configured as a multiplexer or demultiplexer.

4. Common Output/Input (Z Pin): The Z pin acts as the common output when the IC is used as a multiplexer and as the common input when used as a demultiplexer. It is the primary channel via which the analog signal is routed.

5. Control Inputs (S0, S1, S2 Pins): The S0, S1, and S2 pins are control inputs that determine which of the eight channels (X0 to X7) is connected to the common output/input (Z). These pins accept binary signals to select the desired channel.

6. Enable Input (E Pin): The IC may be turned on or off via the E pin. When this pin is low, the IC is active, and when high, it disconnects all channels from the common output/input, effectively turning off the IC.

7. Decoupling Capacitor: It is advised to utilize a decoupling capacitor near the VDD pin. This capacitor helps stabilize the power supply to the IC and minimize noise, crucial for maintaining the accuracy and integrity of the signal routing.

8. PCB Layout Considerations: Designing the PCB layout should involve careful planning, particularly in routing the analog signals to minimize interference and crosstalk between channels. Keeping the signal paths short and isolated from digital lines is important for signal integrity.

In summary, the CD4051BE from the CD4000 series is a versatile 8-channel analog multiplexer/demultiplexer widely used in digital and analog systems. Implementing this IC involves connecting to a suitable power supply, grounding, managing analog inputs/outputs, configuring control inputs, and handling the enable function. Additionally, incorporating a decoupling capacitor and a well-designed PCB layout are crucial for the effective operation of the CD4051BE in multiplexing and demultiplexing applications.
