Texas Instruments CD4049UBEE4

Part No.:: CD4049UBEE4

Manufacturer:: Texas Instruments

Package:: 16-PDIP

Datasheet:: CD4049UBEE4.pdf

Description:: IC INVERTER 6CH 1-INP 16DIP

In Stock:: 3094

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

CD4049UBEE4 Specifications

Packaging:
Tube
Series:
4000B
ProductStatus:
Discontinued at Mosen
LogicType:
Inverter
NumberofCircuits:
6
NumberofInputs:
1
Features:
-
Voltage-Supply:
3V ~ 18V
Current-Quiescent(Max):
4 µA
Current-OutputHighLow:
4.3mA, 24mA
LogicLevel-Low:
1V ~ 2.5V
LogicLevel-High:
4V ~ 12.5V
MaxPropagationDelay@VMaxCL:
50ns @ 15V, 50pF
OperatingTemperature:
-55°C ~ 125°C
MountingType:
Through Hole

CD4049UBEE4 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including CD4049UBEE4 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for CD4049UBEE4 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

CD4049UBEE4 information

Views：

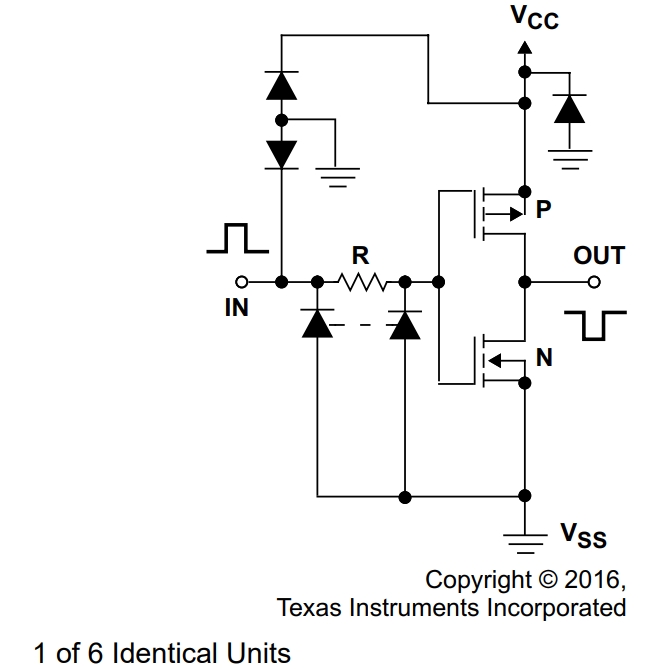

CD4049UBEE4 Typical application Circuitry

CD4049UBEE4

The CD4049UBEE4 is a type of integrated circuit known for its Hex Inverting Buffer/Converter functionality. It's part of a family of CMOS (Complementary Metal-Oxide-Semiconductor) logic chips, characterized by its versatility in voltage level conversion and buffering capabilities. This IC is commonly used in applications requiring signal inversion, voltage level adaptation between different logic families, or driving high-impedance loads.

Application Scenarios

CD4049UBEE4 finds its application in various scenarios, including:

- Signal Inversion: For inverting digital signals in digital circuits.

- Voltage Level Conversion: Adapting logic levels between different operating voltages.

- Buffering: Providing isolation between circuits or driving high-impedance loads.

Parameter Characteristics

Key parameter features of CD4049UBEE4 include:

- Wide Operating Voltage Range: Typically, it can operate across a broad range of voltages, making it suitable for multi-voltage systems.

- High Output Current: Capable of sourcing or sinking higher currents compared to standard CMOS outputs.

- Low Power Consumption: Exhibits low power dissipation, a hallmark of CMOS technology.

Circuit Design: Voltage Level Shifter

One specific application scenario for CD4049UBEE4 is as a Voltage Level Shifter. This circuit is used to shift logic levels between two different voltage domains, for example, shifting a 5V logic level to 3.3V for compatibility with lower voltage devices.

Detailed Circuit Connection

1. VDD to Voltage Source: Connect the VDD pin of CD4049UBEE4 to the higher voltage source (e.g., 5V) that you wish to down-convert from.

2. VSS to Ground: Link the VSS pin to the ground (0V) of your circuit, establishing a common ground reference for both voltage domains.

3. Input Signal Connection: Attach the input signal that requires level shifting to one of the input pins (e.g., Pin 3 for the first inverter).

4. Output Connection: Connect the corresponding output pin (e.g., Pin 4 for the output of the first inverter) to the target device operating at the lower voltage domain (e.g., a 3.3V microcontroller).

5. Unused Pins Configuration: It's crucial to tie any unused input pins to ground to prevent floating inputs, which could lead to unpredictable behavior or increased power consumption.

Design Considerations

When designing with CD4049UBEE4, several factors should be taken into account:

- Power Supply Stability: Ensure the power supply is stable and can provide sufficient current for the circuit's operation, especially under varying load conditions.

- Input and Output Voltage Levels: Verify that the input and output voltage levels are within the specifications for safe and reliable operation of both the CD4049UBEE4 and the devices connected to it.

- Thermal Management: While CMOS devices generally exhibit low power dissipation, it's wise to consider thermal aspects in densely packed or high-power circuits.

This detailed approach to utilizing the CD4049UBEE4 for voltage level shifting showcases its flexibility and utility in modern electronic designs, addressing compatibility issues between different voltage domains effectively. When designing such circuits, attention to the specifics of pin connections, power supply considerations, and the operational characteristics of the devices involved is crucial for achieving desired outcomes.
