What is the Additional Feature ?

Name: CD4013BM96G4
Brand: Texas Instruments
SKU: CD4013BM96G4
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Any Feature, including a modified Existing Feature, that is not an Existing Feature.

Cart ( )

lmages are for reference only See Product Specifications

Texas Instruments CD4013BM96G4

Part No.:: CD4013BM96G4

Manufacturer:: Texas Instruments

Package:: 14-SOIC

Datasheet:: CD4013BM96G4.pdf

Description:: IC FF D-TYPE DUAL 1BIT 14SOIC

In Stock:: 2014

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

CD4013BM96G4 Specifications

Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
4000B
ProductStatus:
Discontinued at Mosen
Function:
Set(Preset) and Reset
Type:
D-Type
OutputType:
Complementary
NumberofElements:
2
NumberofBitsperElement:
1
ClockFrequency:
24 MHz
MaxPropagationDelay@VMaxCL:
90ns @ 15V, 50pF
TriggerType:
Positive Edge
Current-OutputHighLow:
6.8mA, 6.8mA
Voltage-Supply:
3V ~ 18V
Current-Quiescent(Iq):
4 µA
InputCapacitance:
5 pF
OperatingTemperature:
-55°C ~ 125°C (TA)
MountingType:
Surface Mount

CD4013BM96G4 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including CD4013BM96G4 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for CD4013BM96G4 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

CD4013BM96G4 information

Views：

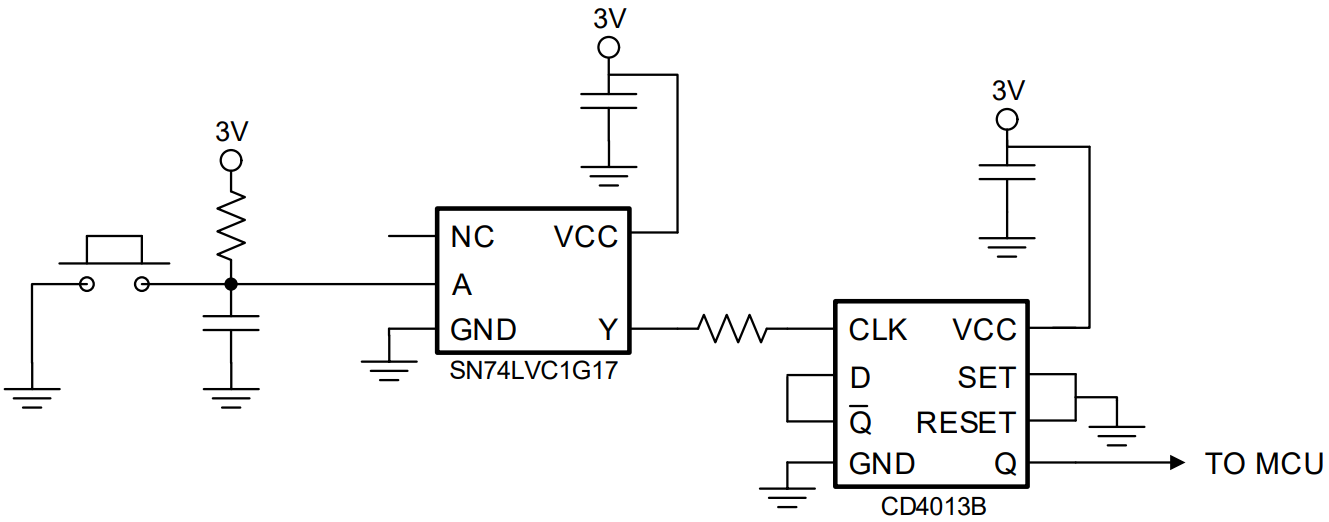

CD4013BM96G4 Typical application Circuitry

CD4013BM96G4

The CD4013BM96G4 is an essential component in the CD4000 series from Texas Instruments, known for its CMOS logic integrated circuits. This series, including the CD4013BM96G4, is highly valued in digital electronics for its efficiency and versatility. The CD4013BM96G4, in particular, is a Dual D-Type Flip-Flop IC, widely used for its ability to store and toggle binary states. It is ideal for a variety of digital applications, such as data storage, signal synchronization, and creating delay or toggle functions, due to its capacity to latch onto a binary state and switch states upon a triggering signal.

1. Power Supply (VDD Pin): Connect the VDD pin of the CD4013BM96G4 to a positive power source. The voltage level should be within the range specified for CMOS logic ICs, ensuring the proper operation of the flip-flops.

2. Grounding (VSS Pin): The VSS pin needs to be connected to the system's ground. This grounding provides a stable reference for the entire circuit, essential for the correct functioning of the flip-flops.

3. Inputs for Each Flip-Flop (Data, Clock, Set, Reset): The CD4013BM96G4 includes two D-type flip-flops. Each flip-flop has a Data (D) input, Clock (CLK) input, Set (S) input, and Reset (R) input. The Data input is for binary data, the Clock input triggers state changes, and the Set and Reset inputs control the initialization or clearing of the flip-flop's state.

4. Outputs for Each Flip-Flop (Q and Qbar): Each flip-flop within the CD4013BM96G4 has two outputs: Q and Qbar. Q reflects the current state of the flip-flop, while Qbar provides the inverse state. These outputs respond to changes in the Clock input based on the Data input.

5. Decoupling Capacitor: It is advisable to use a decoupling capacitor near the VDD pin to stabilize the power supply and minimize noise, ensuring the reliable functioning of the flip-flops.

6. PCB Layout Design: Designing the PCB should involve short and direct signal routing for the CD4013BM96G4. Efficient routing helps reduce interference and maintain signal integrity, crucial for the accurate performance of the flip-flops.

7. Protection for Inputs and Outputs: Consider using resistors or buffer circuits to protect the inputs and outputs from over-voltage or short circuits, enhancing the IC's durability and reliability.

In summary, the CD4013BM96G4 from the CD4000 series is a key dual D-type flip-flop IC used in various digital systems. Correct implementation requires connecting to an appropriate power supply, grounding, managing input and output signals for each flip-flop, and ensuring a stable voltage supply with a decoupling capacitor. Moreover, a well-planned PCB design with input and output protection is essential for the effective operation of the CD4013BM96G4 in digital and logic-based applications.

CD4013BM96G4 FAQ

1. How to order CD4013BM96G4 on icwhale.com?

Currently, icwhale.com only provide peer-to-peer order processing. While you submit the RFQ, our professional agent will contact you with the competitive prices in the global market, and our agent will prompt you to finish the order if you accept our offers.

2. How does icwhale.com guarantee that CD4013BM96G4 is from the original manufacturer or authorized agents?

We have a professional and experienced quality control team to strictly verify and test the CD4013BM96G4. All suppliers must pass our qualification reviews before they can publish their products including CD4013BM96G4 on icwhale.com; we pay more attention to the channels and quality of CD4013BM96G4 products than any other customer. We strictly implement supplier audits, so you can purchase with confidence.

3. Are the CD4013BM96G4 price and inventory displayed accurate?

The price and inventory of CD4013BM96G4 fluctuates frequently and cannot be updated in time, it will be updated periodically within 24 hours. And, our quotation usually expires after 5 days.

4. What forms of payment are accepted?

Wire Transfer, PayPal, Alipay, Wechat, Credit Card, Western Union, MoneyGram, and Escrow are all acceptable.

Warm Tips: Some orders in certain payment forms may require handling fee.

5. How is the shipping arranged?

Customers can choose industry-leading freight companies, including DHL, UPS, FedEx, TNT, and Registered Mail. Shipping insurance is also available.

Once your order has been processed for shipment, our salesperson will send you an email advising you of the shipping status and tracking number.

Warm Tips: It may take up to 24 hours for the carriers to display tracking information. Usually, express delivery takes 3-5 days, and registered mail takes 25-60 days.

6. What is the process for return or replacement of CD4013BM96G4?

All goods will implement Pre-Shipment Inspection (PSI), selected at random from all batches of your order to do a systematic inspection before arranging the shipment. If there is something wrong with the CD4013BM96G4 we delivered, we will accept the replacement or return of the CD4013BM96G4 only when all of the below conditions are fulfilled:

(1)Such as a deficiency in quantity, delivery of wrong items, and apparent external defects (breakage and rust, etc.), and we acknowledge such problems.

(2)We are informed of the defect described above within 90 days after the delivery of CD4013BM96G4.

(3)The PartNo is unused and only in the original unpacked packaging.

Two processes to return the products:

(1)Inform us within 90 days

(2)Obtain Requesting Return Authorizations
