Silicon Labs C8051F310R

Part No.:: C8051F310R

Manufacturer:: Silicon Labs

Package:: 32-LQFP

Datasheet:: C8051F310R.pdf

Description:: IC MCU 8BIT 16KB FLASH 32LQFP

In Stock:: 2877

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

C8051F310R Specifications

Package/Case:
32-LQFP
Packaging:
Tape & Reel (TR),Cut Tape (CT)
Series:
C8051F31x
RoHS:
RoHS
Speed:
25MHz
RAM Size:
1.25K x 8
Core Size:
8-Bit
EEPROM Size:
-
Part Status:
Obsolete
Peripherals:
POR, PWM, Temp Sensor, WDT
Connectivity:
SMBus (2-Wire/I²C), SPI, UART/USART
Mounting Type:
Surface Mount
Number of I/O:
29
Core Processor:
8051
Data Converters:
A/D 21x10b
Oscillator Type:
Internal
Program Memory Size:
16KB (16K x 8)
Program Memory Type:
FLASH
Operating Temperature:
-40°C ~ 85°C (TA)

C8051F310R this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including C8051F310R price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for C8051F310R to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

C8051F310R information

Views：

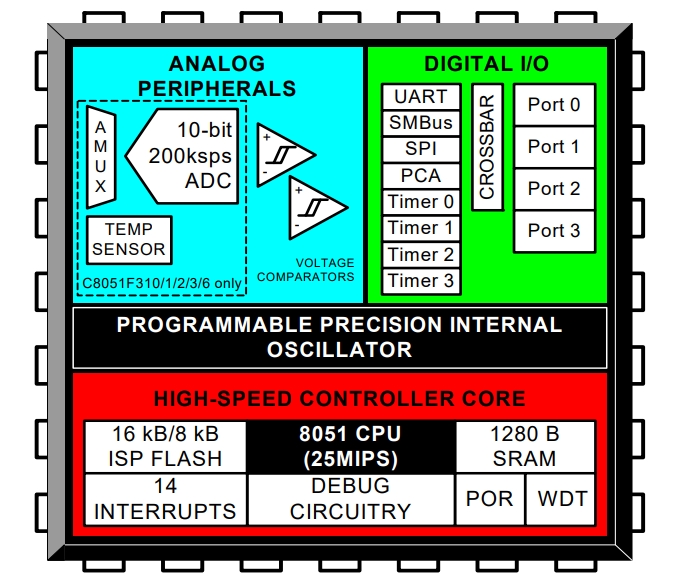

C8051F310R Typical application Circuitry

C8051F310R

The C8051F310R is an 8-bit microcontroller featuring a high-speed 8051-compatible core, suitable for a wide range of applications. Its key features include a maximum operating frequency of 25 MHz, 16 kB of flash memory for program storage, 2.25 kB of RAM for data storage, and a 10-bit analog-to-digital converter (ADC) for analog signal processing. The device also supports various communication interfaces such as UART, SPI, and I²C, making it versatile for different use cases.

Application Scenarios:

The C8051F310R can be used in applications like sensor interfacing, data logging, home automation, and other embedded systems that require efficient processing and versatile I/O capabilities.

Electrical Circuit Design for Home Automation Use:

1. Power Supply Connection: Attach pins 21 and 20 to ground and +3.3V and +3.3V, respectively, of the power supply.

2. Relay Control for Appliances: Connect the C8051F310R output pins P1.0 (pin 1) and P1.1 (pin 2) to the control inputs of relays used to switch appliances on and off.

3. Sensor Interface: Connect sensors (e.g., temperature, light) to the analog input pins, such as P0.6/AIN0.6 (pin 10) for analog readings.

4. External Oscillator Connection (Optional): If precise timing is required, connect an external oscillator to XTAL1 (pin 22) and XTAL2 (pin 23).

5. Reset Circuit: Attach a 10kΩ pull-up resistor between the RST pin (pin 24) and VDD, and a push-button switch between RST and ground for manual resetting.

6. UART Interface for Communication: Connect the C8051F310R TXD pin (P0.4, pin 8) to the RXD pin of a serial interface and the RXD pin (P0.5, pin 9) to the TXD pin of the serial interface for communication with a host device or computer.

Considerations for Design:

- Decoupling of Power Supply: To guarantee a steady power supply and lower noise, place decoupling capacitors next to the power supply pins.

- Sensor Signal Conditioning: Use appropriate signal conditioning circuits (e.g., amplifiers, filters) to prepare sensor outputs for accurate ADC readings.

- Firmware Development: Develop firmware to initialize and configure the microcontroller's peripherals, handle sensor readings, control relays, and manage communication.

- Relay Selection: Choose relays that can handle the voltage and current requirements of the appliances being controlled and are compatible with the control signals from the microcontroller.

- EMI/EMC Precautions: Implement appropriate layout and grounding techniques to minimize electromagnetic interference, especially in home automation applications where multiple devices are controlled.

By adhering to these guidelines and correctly configuring the C8051F310R, you can develop a reliable and efficient home automation system for various applications.
