Bosch Sensortec BNO055-SHUTL

Part No.:: BNO055-SHUTL

Manufacturer:: Bosch Sensortec

Package:

Datasheet:: BNO055-SHUTL.pdf

Description:: SHUTTLE BOARD DEV KIT BNO055

In Stock:: 3043

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

BNO055-SHUTL Specifications

BNO055-SHUTL this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including BNO055-SHUTL price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for BNO055-SHUTL to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

BNO055-SHUTL information

Views：

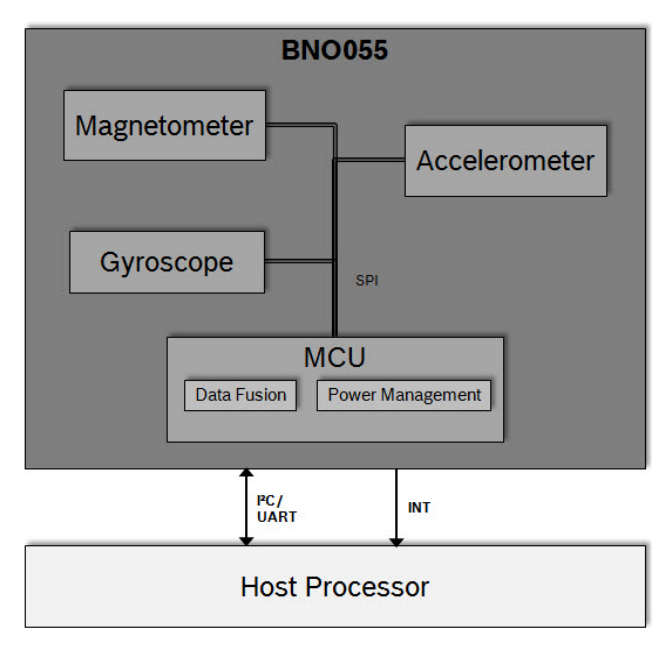

BNO055-SHUTL Typical application Circuitry

The BNO055-SHUTL is not actually a standalone chip; rather, it is a shuttle board designed to help interface the BNO055 sensor with different types of microcontrollers or development boards.The BNO055 Intelligent 9-axis absolute orientation sensor can be assessed using a less complex way thanks to it.

Where is it Effective?

- Automotive Motion Sensing

- (HMI) Human Machine Interface

- Asset Tracking
- Augmented Reality

What Makes It Stand Out?

- Ease of Connectivity: Provides I2C and UART interfaces

- Versatility: Can be used with various development platforms

- Simplifies Evaluation: On-board 3.3V regulator and level shifting circuits

- Direct Interface: To BNO055 Intelligent 9-axis sensor

Case Study: Asset Tracking System Design

Required Components

- BNO055-SHUTL Shuttle Board

- Arduino Board

- 3.3V Power Source

- I2C Interface Connections

Establishing the Circuit: Step-by-step Instructions

1.Handling Power

- Pin Labeling: The BNO055-SHUTL has a VCC pin designated for power.

- Connection: Link the VCC pin to a 3.3V power supply on the Arduino board.

2.Creating Data Pathways

- The I2C Pins: For I2C communication, the BNO055-SHUTL has SDA (data line) and SCL (clock line) pins.

- How to Connect: Connect the SDA pin on BNO055-SHUTL to the SDA on Arduino, and the SCL of BNO055-SHUTL to SCL on Arduino.

3.Grounding the Circuit

- GND Pin: Ground is essential for any circuit.

- What to Do: The ground pin on the Arduino board should be linked to the GND pin on the BNO055-SHUTL.

4.Board Configuration

- Initial Setup: Initialize the BNO055-SHUTL through the Arduino's software, setting it to output the orientation data, possibly as Euler angles.

5.Getting Data Out

- Parsing: Code on the Arduino should parse the I2C data streams coming from the BNO055-SHUTL for asset tracking.

Challenges and Important Considerations

1. Data Integrity: Especially in asset tracking, the data should be accurate and reliable. Ensure the I2C lines are noise-free.

2. Compatibility: Double-check the voltage compatibility. The BNO055-SHUTL is designed for 3.3V logic; connecting to a 5V logic system without proper level shifting can be hazardous.

3. Firmware Updates: Keep the BNO055-SHUTL and the interfaced microcontroller updated to the latest firmware for optimal performance.

4. Latency: In real-time asset tracking, latency can be a significant issue. Make sure the microcontroller can handle data parsing and transmission quickly.

5. Power Concerns: Ensure that the 3.3V power supply is stable and does not introduce noise into the BNO055-SHUTL circuit.

The BNO055-SHUTL shuttle board is a robust platform for quickly and efficiently integrating the BNO055 sensor's capabilities into various systems, including asset tracking as discussed here. Proper design and precautionary measures are indispensable for leveraging this shuttle board's full potential.
