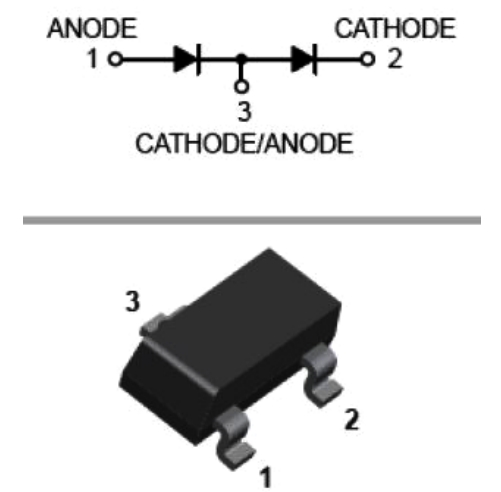

Diodes Incorporated BAV99-7-F-31

Part No.:: BAV99-7-F-31

Manufacturer:: Diodes Incorporated

Package:: TO-236-3, SC-59, SOT-23-3

Datasheet:

Description:: DIODE ARRAY GP SOT23

In Stock:: 2158

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

BAV99-7-F-31 Specifications

Packaging:
Tape & Reel (TR)
Series:
Automotive, AEC-Q101
ProductStatus:
Obsolete
DiodeConfiguration:
1 Pair Series Connection
DiodeType:
Standard
Voltage-DCReverse(Vr)(Max):
75 V
Current-AverageRectified(Io)(perDiode):
300mA (DC)
Voltage-Forward(Vf)(Max)@If:
1.25 V @ 150 mA
Speed:
Fast Recovery =< 500ns, > 200mA (Io)
ReverseRecoveryTime(trr):
4 ns
Current-ReverseLeakage@Vr:
2.5 µA @ 75 V
OperatingTemperature-Junction:
-65°C ~ 150°C
MountingType:
Surface Mount
