Nexperia USA Inc. BAV70W/SN/8X

Part No.:: BAV70W/SN/8X

Manufacturer:: Nexperia USA Inc.

Package:: SC-70, SOT-323

Datasheet:: BAV70W/SN/8X.pdf

Description:: DIODE ARRAY GP 100V 175MA SC70

In Stock:: 3405

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

BAV70W/SN/8X Specifications

Packaging:
Tape & Reel (TR)
Series:
Automotive, AEC-Q101
ProductStatus:
Obsolete
DiodeConfiguration:
1 Pair Common Cathode
DiodeType:
Standard
Voltage-DCReverse(Vr)(Max):
100 V
Current-AverageRectified(Io)(perDiode):
175mA (DC)
Voltage-Forward(Vf)(Max)@If:
1.25 V @ 150 mA
Speed:
Small Signal =< 200mA (Io), Any Speed
ReverseRecoveryTime(trr):
4 ns
Current-ReverseLeakage@Vr:
500 nA @ 80 V
OperatingTemperature-Junction:
150°C (Max)
MountingType:
Surface Mount

BAV70W/SN/8X this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including BAV70W/SN/8X price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for BAV70W/SN/8X to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

BAV70W/SN/8X information

Views：

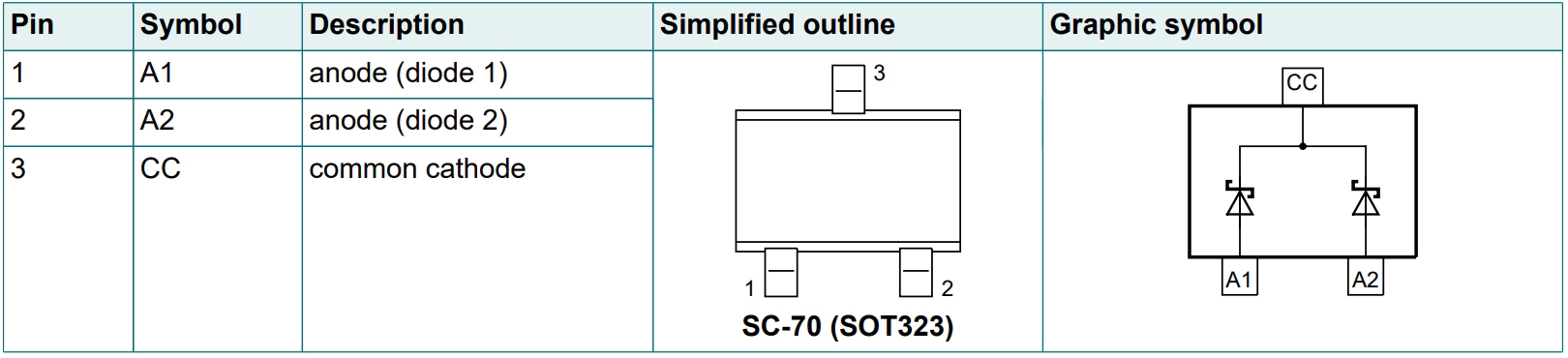

BAV70W/SN/8X Typical application Circuitry

BAV70W SN 8X

A high-speed switching double diode, the BAV70W/SN/8X is housed in a tiny plastic SOT323 (SC-70) Surface-Mounted Device (SMD) packaging. This diode is designed for high-speed switching applications and is characterized by its high switching speed, low capacitance, low leakage current, and ability to handle reverse voltage up to 100V.

Functionalities and Applications

- High-Speed Switching: The BAV70W/SN/8X is suitable for high-speed switching applications, where rapid transitions between on and off states are required.

- General-Purpose Switching: Because of its adaptability and effectiveness, it can also be utilized in general-purpose switching applications.

Parameter Features

- High Switching Speed: The diode offers a fast switching speed, typically less than or equal to 4 ns.

- Low Capacitance: With capacitance less than or equal to 1.5 pF, it is efficient for high-frequency applications.

- Low Leakage Current: Ensures minimal unwanted current flow when the diode is in the off state.

- Reverse Voltage: Can handle up to 100V of reverse voltage.

Circuit Connection Methodology - High-Speed Switching Application

In a high-speed switching circuit, the BAV70W/SN/8X can be effectively employed. Here's a detailed circuit connection method:

1. Input Connection: Connect the input signal to one of the anodes of the BAV70W/SN/8X.

2. Grounding: The diode's common cathode needs to be attached to the ground.

3. Output Signal: The other anode is used for the output signal, where the high-speed switching characteristics of the diode are utilized.

4. Voltage Regulation: Ensure that the input voltage does not exceed the maximum reverse voltage rating of the diode (100V).

Design Considerations

When designing circuits with BAV70W/SN/8X, it's crucial to consider:

- Signal Frequency and Speed: The diode's high switching speed should match the frequency requirements of the application.

- Thermal Management: Even though the diode is small, it can generate heat during high-speed operation, so effective thermal management is essential.

- Circuit Layout: Optimize the arrangement to cut down on possible interference and minimize signal path lengths.

- Power Dissipation: Control the dissipation of power to avoid overheating and guarantee effective functioning.

In conclusion, the BAV70W/SN/8X is a general-purpose, high-speed switching diode that is very adaptable. Its design ensures rapid switching, low capacitance, and efficient operation, making it ideal for a variety of electronic applications where speed and efficiency are crucial.
