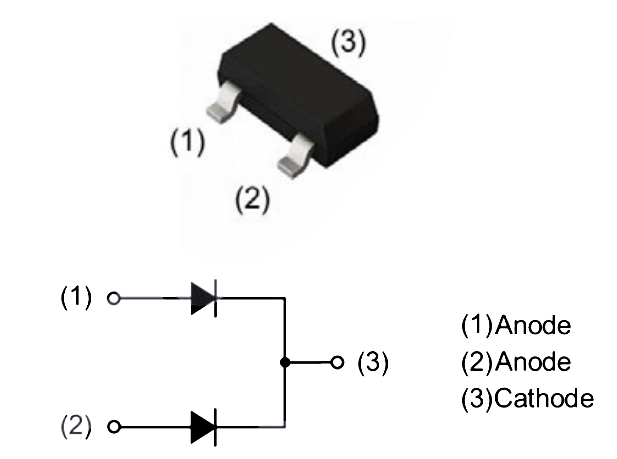

Rohm Semiconductor BAV70HMT116

Part No.:: BAV70HMT116

Manufacturer:: Rohm Semiconductor

Package:: TO-236-3, SC-59, SOT-23-3

Datasheet:: BAV70HMT116.pdf

Description:: BAV70HM IS HIGH RELIABILITY AND

In Stock:: 3712

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

BAV70HMT116 Specifications

Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
-
ProductStatus:
Active
DiodeConfiguration:
1 Pair Common Cathode
DiodeType:
Standard
Voltage-DCReverse(Vr)(Max):
80 V
Current-AverageRectified(Io)(perDiode):
215mA (DC)
Voltage-Forward(Vf)(Max)@If:
1.25 V @ 150 mA
Speed:
Fast Recovery =< 500ns, > 200mA (Io)
ReverseRecoveryTime(trr):
4 ns
Current-ReverseLeakage@Vr:
500 nA @ 80 V
OperatingTemperature-Junction:
150°C (Max)
MountingType:
Surface Mount

BAV70HMT116 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including BAV70HMT116 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for BAV70HMT116 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

BAV70HMT116 information

Views：

BAV70HMT116 Typical application Circuitry

BAV70HMT116

The BAV70HMT116 is an electronic component, specifically a type of diode. Understanding its functionality, application scenarios, parameter characteristics, and detailed circuit connection methods requires a grasp of its essential properties.

Functionality and Application Scenarios

BAV70HMT116 primarily serves in signal switching and shaping tasks. It finds widespread use in handling high-frequency and analog signals, notably in RF (Radio Frequency) applications, digital communication systems, and high-speed switching circuits.

Parameter Characteristics

Key features of the BAV70HMT116 include its low capacitance, swift switching capabilities, and compact packaging. These attributes render it particularly apt for applications involving high-frequency signal processing and space-constrained electronic designs.

Circuit Connection Methodology - Example in Signal Shaping

In a signal shaping application, BAV70HMT116 can be utilized to construct a rapid switching circuit. The circuit connection is detailed as follows:

1. Connection of Input Signal: The input signal should be linked to the anode of the BAV70HMT116.

2. Grounding Protocol: The cathode of the diode must be connected to the ground.

3. Incorporating a Pull-Up Resistor: A pull-up resistor is required between the diode's cathode and the output, ensuring output signal stability when the diode is inactive.

4. Extraction of Output Signal: The output signal is derived from the juncture between the cathode and the pull-up resistor.

Design Considerations

When designing circuits incorporating BAV70HMT116, several crucial aspects need consideration:

1. Frequency of the Signal: The signal frequency must align with the switching speed capabilities of the BAV70HMT116.

2. Power Management: The overall power consumption of the circuit should be assessed, ensuring that BAV70HMT116 operates within its power thresholds.

3. Thermal Regulation: Despite its small size, BAV70HMT116 can generate significant heat during high-speed operations, necessitating effective heat dissipation strategies.

4. Protective Measures: Due to the inherent fragility of diodes, the design should include protective elements like current-limiting resistors and voltage stabilizers.

In conclusion, the BAV70HMT116 is a versatile diode suitable for various applications involving high-frequency signal processing and digital communication. Designing circuits with this component requires careful consideration of signal frequency, power consumption, heat management, and protective measures.
