Microchip Technology ATTINY45-15SZ

Part No.:: ATTINY45-15SZ

Manufacturer:: Microchip Technology

Package:: 8-SOIC (0.209", 5.30mm Width)

Datasheet:: ATTINY45-15SZ.pdf

Description:: IC MCU 8BIT 4KB FLASH 8SOIC

In Stock:: 3563

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

ATTINY45-15SZ Specifications

Package/Case:
8-SOIC (0.209", 5.30mm Width)
Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
Automotive, AEC-Q100, AVR® ATtiny, Functional Safety (FuSa)
RoHS:
RoHS
Speed:
16MHz
RAM Size:
256 x 8
Core Size:
8-Bit
EEPROM Size:
256 x 8
Part Status:
Active
Peripherals:
Brown-out Detect/Reset, POR, PWM, WDT
Connectivity:
USI
Mounting Type:
Surface Mount
Number of I/O:
6
Core Processor:
AVR
Data Converters:
A/D 4x10b
Oscillator Type:
Internal
Program Memory Size:
4KB (2K x 16)
Program Memory Type:
FLASH
Operating Temperature:
-40°C ~ 125°C (TA)

ATTINY45-15SZ this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including ATTINY45-15SZ price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for ATTINY45-15SZ to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

ATTINY45-15SZ information

Views：

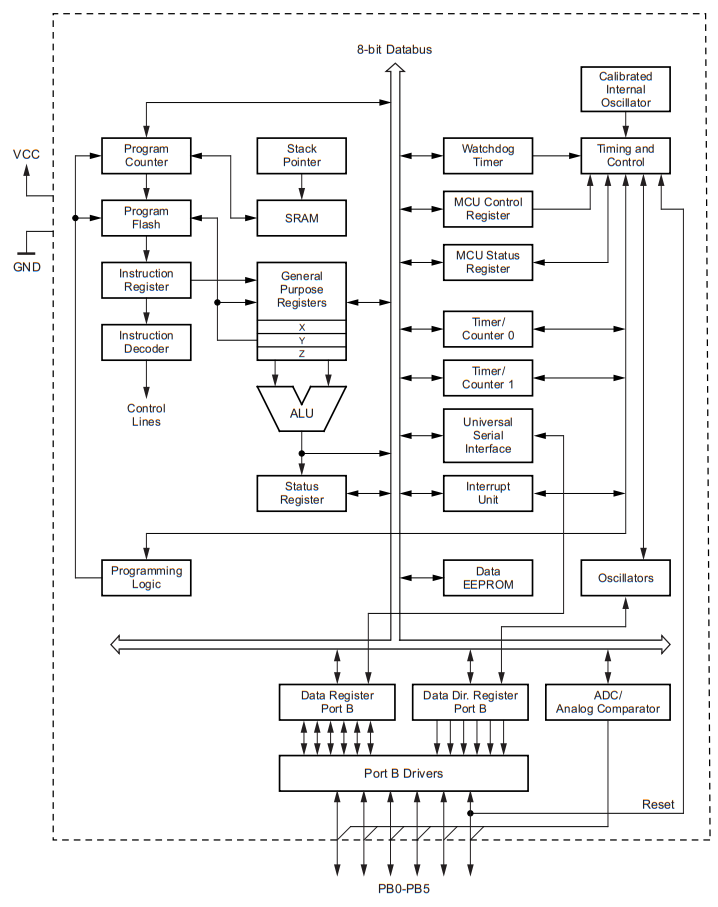

ATTINY45-15SZ Typical application Circuitry

The ATTINY45-15SZ is a Microchip microcontroller based on the 8-bit AVR RISC architecture. It boasts high-performance capabilities while operating at low power. The microcontroller includes a 4-channel 10-bit A/D converter, an 8-bit timer/counter with compare modes, an 8-bit high-speed timer/counter, 256B of EEPROM, 256B of SRAM, 6 general-purpose I/O lines, 32 general-purpose working registers, a programmable watchdog timer with an internal oscillator, three software-selectable power-saving modes, and debugWIRE for on-board debugging.
When building an application circuit for the ATTINY45-15SZ, the following important considerations should be made:

1. Power Supply: The ATTINY45-15SZ operates between 2.7 to 5.5V. A reliable power supply that falls within this range should be checked. In order to effectively filter noise, it is necessary to position decoupling capacitors in close proximity to the power pins.
2. Reset Circuit: There's a RESET pin which is active low. For manual reset functionality, this pin can be connected to both a pull-up resistor and a push-button switch. For power-on reset, a capacitor can be connected to the reset pin.
3. Clock Source: The clock source used by the ATTINY45-15SZ can be either internal or external. If you want to use an external clock source, it can be connected to the XTAL1 and XTAL2 pins. For most applications, the internal oscillator should suffice.
4. Programming: For programming, use a programmer that supports the SPI and debugWIRE protocols. The device is programmed via the SPI pins MISO, MOSI, SCK, and RESET.
5. I/O Pins: A variety of I/O pins on the microcontroller can be set up as input or output depending on the needs of your project.
6. Communication Interfaces: The ATTINY45-15SZ supports communication interfaces such as SPI and USI (Universal Serial Interface) in Three-wire mode. This enables it to communicate with a variety of peripherals.
Remember, these are general points and the exact details of the application circuit will depend on the specific requirements of your project. Always refer to the ATTINY45-15SZ's datasheet and hardware application notes provided by Microchip for the most detailed and accurate information.
