Microchip Technology ATTINY2313V-10SUR

Part No.:: ATTINY2313V-10SUR

Manufacturer:: Microchip Technology

Package:: 20-SOIC (0.295", 7.50mm Width)

Datasheet:: ATTINY2313V-10SUR.pdf

Description:: IC MCU 8BIT 2KB FLASH 20SOIC

In Stock:: 2473

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

ATTINY2313V-10SUR Specifications

Package/Case:
20-SOIC (0.295", 7.50mm Width)
Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
AVR® ATtiny
RoHS:
RoHS
Speed:
10MHz
RAM Size:
128 x 8
Core Size:
8-Bit
EEPROM Size:
128 x 8
Part Status:
Active
Peripherals:
Brown-out Detect/Reset, POR, PWM, WDT
Connectivity:
SPI, UART/USART
Mounting Type:
Surface Mount
Number of I/O:
18
Core Processor:
AVR
Data Converters:
-
Oscillator Type:
Internal
Program Memory Size:
2KB (1K x 16)
Program Memory Type:
FLASH
Operating Temperature:
-40°C ~ 85°C (TA)

ATTINY2313V-10SUR this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including ATTINY2313V-10SUR price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for ATTINY2313V-10SUR to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

ATTINY2313V-10SUR information

Views：

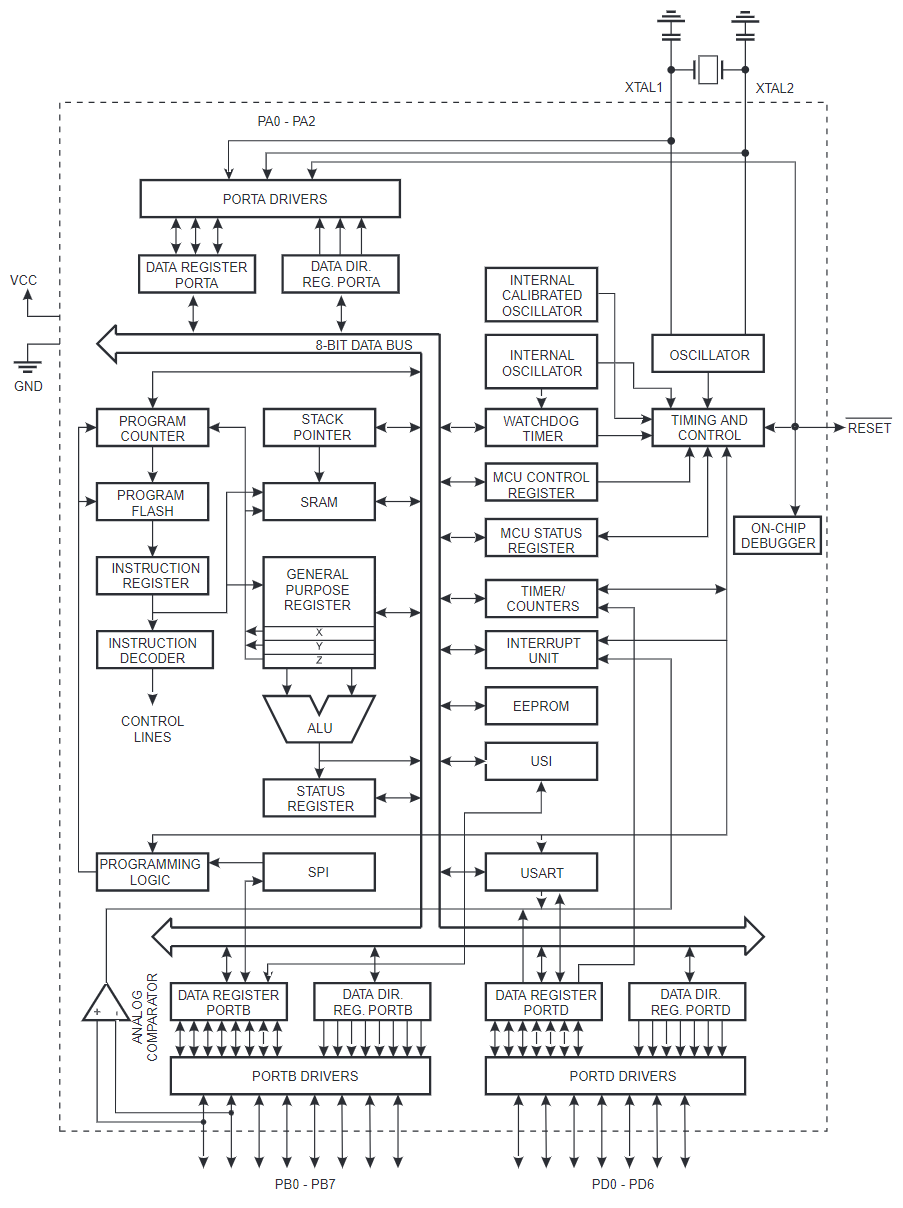

ATTINY2313V-10SUR Typical application Circuitry

ATTINY2313V-10SUR

The ATTINY2313V-10SUR is a pivotal component of the AVR Tiny microcontroller series developed by Microchip, characterized by its compact design and robust capabilities tailored for intricate embedded applications. This microcontroller is particularly esteemed for its adaptability in control systems, custom interfaces, and prototype development, offering a blend of utility and efficiency.

1. Voltage Supply and Grounding (VCC, GND): The ATTINY2313V-10SUR mandates a connection to a power source at its VCC pin, with an acceptable voltage range from 1.8V to 5.5V, catering to a variety of power environments. The device's ground connections are established through multiple GND pins, ensuring a stable and reliable reference point for all operations. It is recommended to place a bypass capacitor near the VCC pin to mitigate transient voltage spikes and enhance the microcontroller's stability.

2. System Reset (RESET): The RESET pin facilitates external reset capabilities, allowing systems to reinitialize the microcontroller as needed. Employing a pull-up resistor between this pin and VCC can prevent inadvertent resets due to electrical noise. For designs requiring manual reset functionality, this pin can be interfaced with a momentary switch.

3. General-Purpose Input/Output (GPIO): The ATTINY2313V-10SUR is equipped with a suite of GPIO pins across port B (PB0-PB7) and port D (PD0-PD6), enabling a diverse array of digital functionalities. These pins can be configured for input or output roles, allowing them to interact with external components such as sensors, actuators, and LEDs, thereby expanding the microcontroller's interface capabilities.

4. Analog Comparator (AIN0, AIN1): Although devoid of a built-in ADC, the ATTINY2313V-10SUR incorporates an analog comparator utilizing AIN0 and AIN1 pins. This feature permits basic analog signal comparison, facilitating applications that require threshold detection or simple analog signal monitoring.

5. External Interrupts (INT0, INT1): The microcontroller's responsiveness to external events is enhanced by its external interrupt pins, INT0 (PD2) and INT1 (PD3). Configurable to respond to various signal transitions, these pins enable the ATTINY2313V-10SUR to execute interrupt-driven routines, significantly improving its interactive capabilities with external environments.

6. Clock Sources (XTAL1, XTAL2): Flexibility in timekeeping is provided by the ATTINY2313V-10SUR's support for both internal and external clock sources. The internal oscillator simplifies circuitry in many applications, while the option to connect an external crystal or resonator to XTAL1 and XTAL2 pins is available for scenarios demanding enhanced timing precision.

7. Communication Interfaces (USI): The Universal Serial Interface (USI) feature, accessible through PB5 (DO), PB6 (DI), and PB7 (USCK/SCL) pins, offers versatile communication possibilities including SPI and I2C protocols. This functionality allows the ATTINY2313V-10SUR to engage in data exchange with a myriad of peripherals, enhancing its utility in complex embedded systems.

8. Firmware Programming: Programming the ATTINY2313V-10SUR involves an SPI-compatible interface, utilizing the RESET, SCK, MISO, and MOSI pins. This procedure requires a compatible AVR programming device to upload the desired firmware into the microcontroller.

Implementing the ATTINY2313V-10SUR within an embedded solution demands meticulous attention to the connectivity and function of each pin, ensuring that the microcontroller's full spectrum of features is optimally utilized. With its comprehensive I/O capabilities and versatile communication options, the ATTINY2313V-10SUR stands as a formidable choice for developers seeking to craft sophisticated and reliable embedded systems.
