Name: ATTINY2313V-10SU
Brand: Microchip Technology
SKU: ATTINY2313V-10SU
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Any Feature, including a modified Existing Feature, that is not an Existing Feature.

Cart ( )

lmages are for reference only See Product Specifications

Microchip Technology ATTINY2313V-10SU

Part No.:: ATTINY2313V-10SU

Manufacturer:: Microchip Technology

Package:: 20-SOIC (0.295", 7.50mm Width)

Datasheet:: ATTINY2313V-10SU.pdf

Description:: IC MCU 8BIT 2KB FLASH 20SOIC

In Stock:: 3170

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

ATTINY2313V-10SU Specifications

Package/Case:
20-SOIC (0.295", 7.50mm Width)
Packaging:
Tube
Series:
AVR® ATtiny
RoHS:
RoHS
Speed:
10MHz
RAM Size:
128 x 8
Core Size:
8-Bit
EEPROM Size:
128 x 8
Part Status:
Active
Peripherals:
Brown-out Detect/Reset, POR, PWM, WDT
Connectivity:
SPI, UART/USART
Mounting Type:
Surface Mount
Number of I/O:
18
Core Processor:
AVR
Data Converters:
-
Oscillator Type:
Internal
Program Memory Size:
2KB (1K x 16)
Program Memory Type:
FLASH
Operating Temperature:
-40°C ~ 85°C (TA)

ATTINY2313V-10SU this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including ATTINY2313V-10SU price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for ATTINY2313V-10SU to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

ATTINY2313V-10SU information

Views：

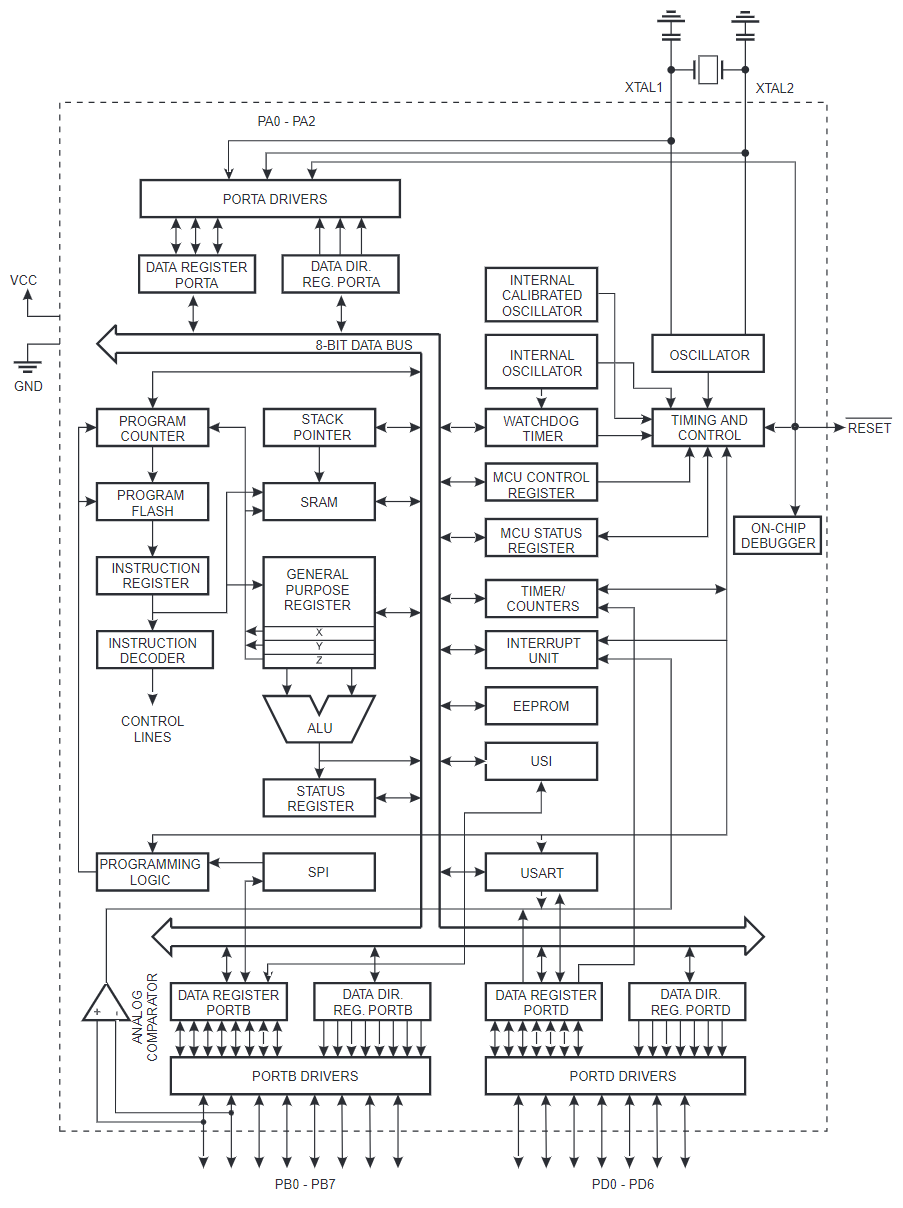

ATTINY2313V-10SU Typical application Circuitry

ATTINY2313V-10SU

The ATTINY2313V-10SU is a member of the AVR Tiny microcontroller series from Microchip, designed for applications that demand a compact footprint without compromising on performance and functionality. This microcontroller is particularly adept at handling tasks in embedded systems, such as simple control systems, automotive applications, and small-scale automation projects, offering a balance between size and capability.

1. Power Supply Connections (VCC, GND): The ATTINY2313V-10SU requires a stable power supply connected to its VCC pin, with a recommended operating voltage range of 1.8V to 5.5V. The ground connection is made through the GND pins. Including a decoupling capacitor close to the VCC pin is advisable to filter out any supply noise, ensuring stable operation of the microcontroller.

2. Reset Pin (RESET): The RESET pin allows external devices or circuits to reset the microcontroller. Connecting a pull-up resistor to this pin and VCC is recommended to avoid unintentional resets due to noise. For applications requiring a manual reset functionality, this pin can be connected to a switch.

3. Digital I/O Pins: The ATTINY2313V-10SU features a total of 18 general-purpose I/O pins distributed across port B (PB0-PB7) and port D (PD0-PD6), which can be configured as input or output pins. These pins support various digital functions, including interfacing with LEDs, switches, and other digital sensors or actuators.

4. Analog Comparator Inputs: While the ATTINY2313V-10SU does not have an ADC, it does feature an analog comparator by utilizing the AIN0 and AIN1 pins. This comparator can be used for simple analog signal comparisons, which can be useful in applications where basic threshold detection is required.

5. External Interrupts: Pins PD2 (INT0) and PD3 (INT1) serve as external interrupt sources, enabling the microcontroller to respond to external events with minimal delay. By configuring these pins to initiate an interrupt upon diverse signal modifications, the microcontroller's sensitivity to external stimuli can be improved.

6. Oscillator Options: The ATTINY2313V-10SU can use its internal oscillator as a clock source, simplifying the circuit design by eliminating the need for external clock components. The XTAL1 and XTAL2 pins can be linked to an external crystal or resonator for applications that need exact timing.

7. Serial Interface: The microcontroller supports a Universal Serial Interface (USI) which can be used for SPI or I2C communication, utilizing pins PB5 (DO), PB6 (DI), and PB7 (USCK/SCL). This feature allows the ATTINY2313V-10SU to communicate with other microcontrollers, sensors, and peripherals, expanding its application potential.

8. Programming Interface: The ATTINY2313V-10SU is programmed through an SPI-based programming interface, involving the RESET, SCK, MISO, and MOSI pins. This interface is used to upload code to the microcontroller, typically requiring a compatible AVR programmer.

Integrating the ATTINY2313V-10SU into an embedded system necessitates careful planning and precise connections for each pin, ensuring that the microcontroller's full range of capabilities is effectively harnessed. With its array of I/O options, communication interfaces, and compact size, the ATTINY2313V-10SU is a versatile microcontroller choice for a wide array of embedded applications.
