Microchip Technology ATSAMS70Q21A-AN

Part No.:: ATSAMS70Q21A-AN

Manufacturer:: Microchip Technology

Package:: 144-LQFP

Datasheet:: ATSAMS70Q21A-AN.pdf

Description:: IC MCU 32BIT 2MB FLASH 144LQFP

In Stock:: 3852

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

ATSAMS70Q21A-AN Specifications

Package/Case:
144-LQFP
Packaging:
Tray
Series:
SAM S70
RoHS:
RoHS
Speed:
300MHz
RAM Size:
384K x 8
Core Size:
32-Bit
EEPROM Size:
-
Part Status:
Active
Peripherals:
Brown-out Detect/Reset, DMA, I²S, POR, PWM, WDT
Connectivity:
EBI/EMI, I²C, IrDA, LINbus, MMC/SD/SDIO, SPI, UART/USART, USB
Mounting Type:
Surface Mount
Number of I/O:
114
Core Processor:
ARM® Cortex®-M7
Data Converters:
A/D 24x12b; D/A 2x12b
Oscillator Type:
Internal
Program Memory Size:
2MB (2M x 8)
Program Memory Type:
FLASH
Operating Temperature:
-40°C ~ 105°C (TA)

ATSAMS70Q21A-AN this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including ATSAMS70Q21A-AN price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for ATSAMS70Q21A-AN to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

ATSAMS70Q21A-AN information

Views：

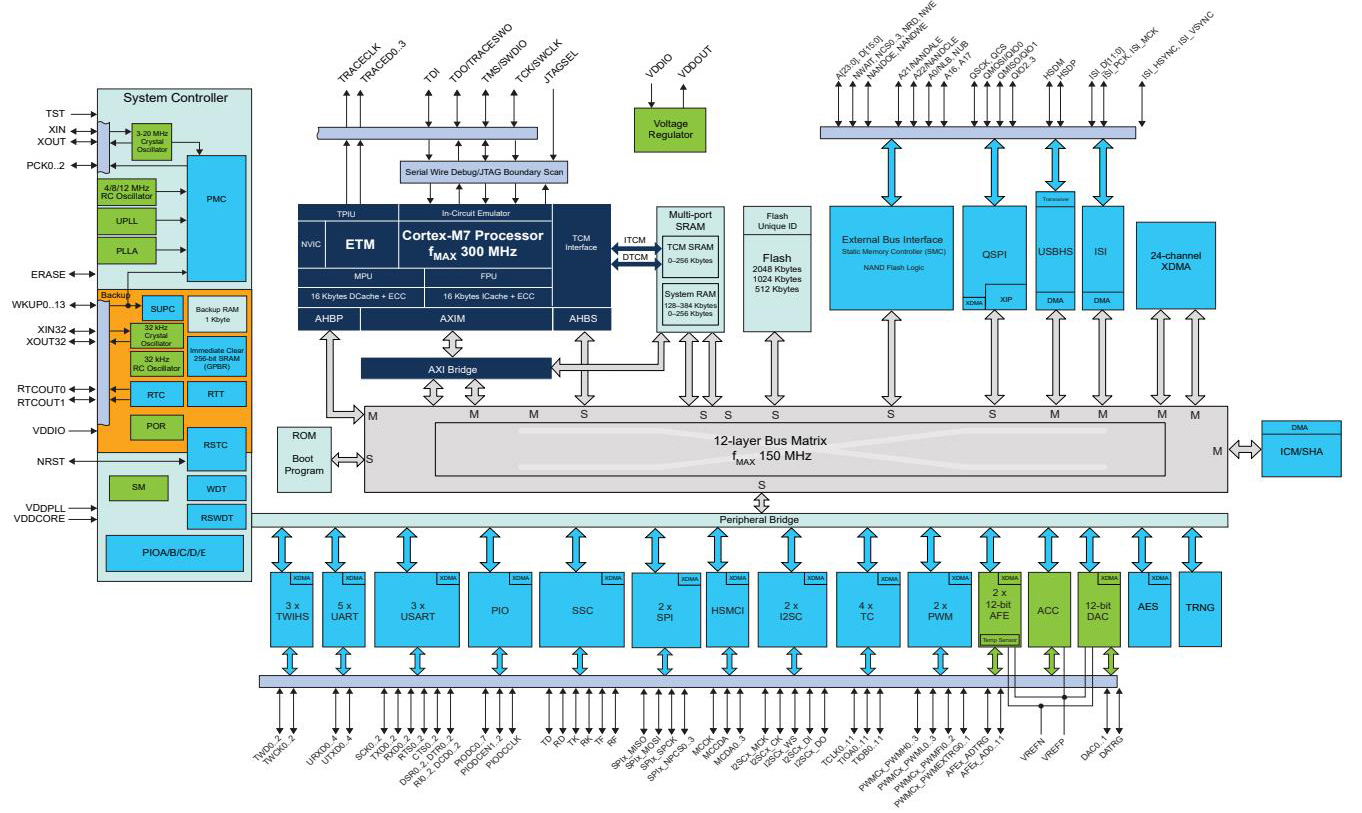

ATSAMS70Q21A-AN Typical application Circuitry

ATSAMS70Q21A-AN

ATSAMS70Q21A-AN is a high-performance, ultra-low-power ARM Cortex-M7 based microcontroller unit (MCU) from Microchip's SAM S70 family. It is designed for general-purpose applications running at up to 300MHz.

This MCU comes with up to 2MB dual-bank Flash and up to 384KB SRAM with ECC, along with a rich set of peripheral interfaces that include USB, UART, SPI, SDIO/SD/MMC, TWI, and SMC. Thanks to its rich feature set and robust processing capabilities, it is well suited for an extensive range of applications, such as industrial automation, IoT devices, and embedded control systems.

As an example, let's examine how the ATSAMS70Q21A-AN might be deployed in an embedded control system.

1. Power Supply Pins: The MCU is powered by connecting VDDCORE (Pin 4), VDDIO (Pins 21, 22, 54, 70), and VDDOUT (Pin 6) to a 3.3V power supply, while the GND (Pins 1, 2, 3, 19, 20, 52, 53, 69) pins should be connected to ground. The VDDIN (Pin 5) pin is used to supply the internal regulator and should also be connected to the power supply.

2. Digital I/O Pins: The ATSAMS70Q21A-AN has a large number of digital I/O pins for interfacing with other digital devices. For example, PC0 to PC31 (Various Pins) can be connected to digital sensors or other peripherals for control and communication.

3. Analog Input Pins: This MCU features an analog-to-digital converter (ADC). The ADC input pins (PA17-PA20, Pin 97-100) can be connected to sensors to read analog data.

4. Communication Pins: The ATSAMS70Q21A-AN supports multiple communication protocols. The SPI interface, for instance, includes SPI0_MISO (PB0, Pin 58), SPI0_MOSI (PB1, Pin 59), SPI0_SPCK (PB2, Pin 60), and SPI0_NPCS0 (PB3, Pin 61).

5. Programming Pins: To program the MCU, the SWDIO (Pin 109) and SWCLK (Pin 110) pins are used.

In designing a circuit with the ATSAMS70Q21A-AN, some considerations include:

1. Supply Voltage: Ensure the supply voltage is within the recommended range to prevent potential damage to the MCU.

2. Decoupling Capacitors: The placement of decoupling capacitors near the supply voltage pins is advisable to reduce high-frequency noise in the supply voltage.

3. Input/Output Voltage Levels: The voltage levels of all inputs and outputs should be within the specified limits of the MCU to prevent damaging the device or connected peripherals.

4. Clock Selection: The MCU has multiple clock options. To optimize power and performance, pick the one that best fits your unique needs.

5. Thermal Management: Adequate thermal management should be designed to avoid overheating, which can affect the MCU's performance and reliability.

6. Protection Measures: Implementing protection measures like transient-voltage-suppression diodes can help protect the MCU from electrostatic discharge or other transient voltages.

In summary, the ATSAMS70Q21A-AN is a robust, high-performance microcontroller that can be used in a wide range of applications. It's essential to consider factors like supply voltage, decoupling capacitors, I/O voltage levels, clock selection, thermal management, and protection measures when designing a circuit with this MCU. As always, the most precise and comprehensive information should be found in the ATSAMS70Q21A-AN datasheet.
